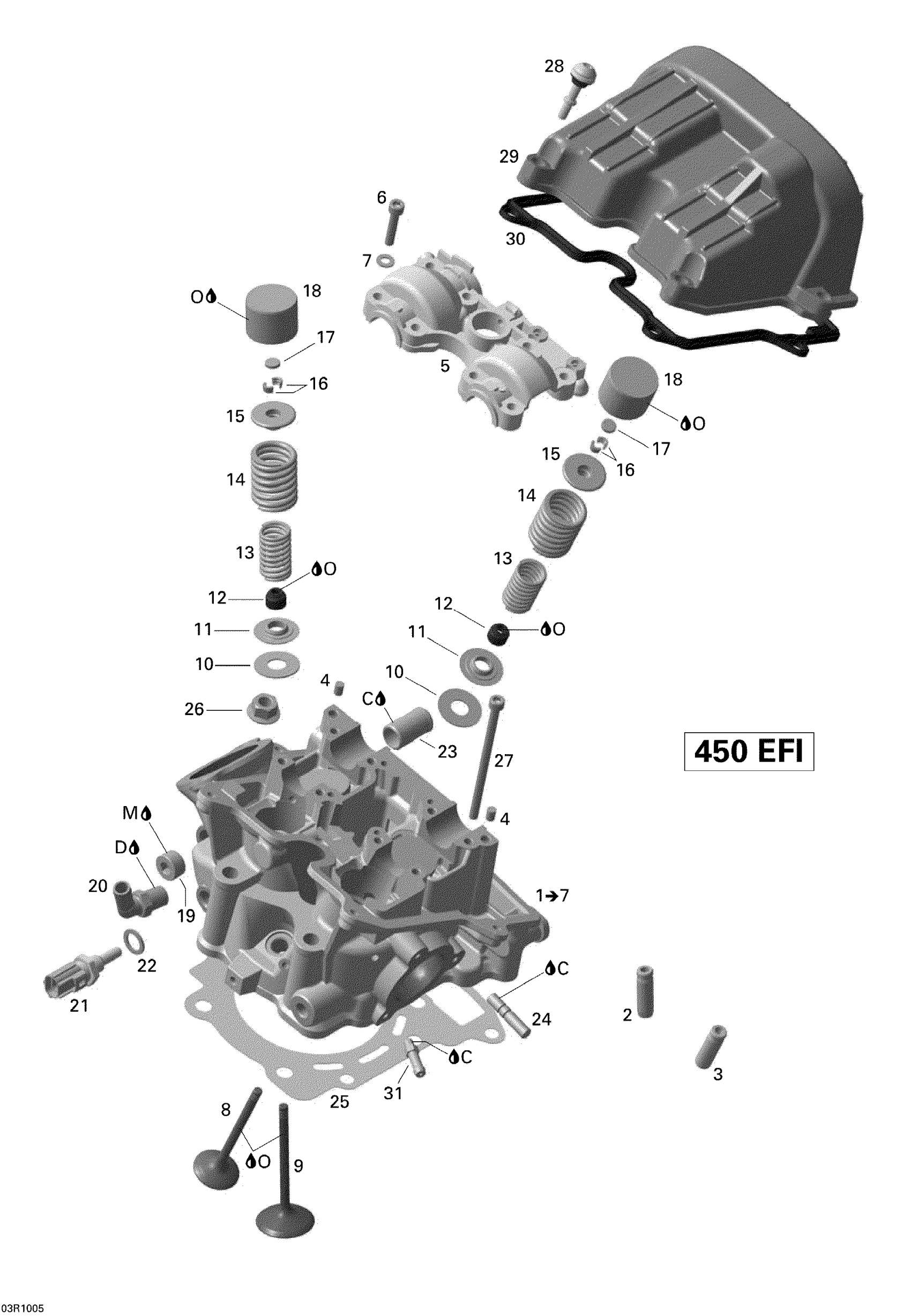

Can-Am DS 450 Xxc, Xmx EFI, 2010 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Ass'y | Includes 1 to 7

420623470

$654.45

2

VALVE GUIDE, EXHAUST - Call your local BRP dealership

420253926

Unavailable

3

VALVE GUIDE, INTAKE - Call your local BRP dealership

420253921

Unavailable

4

Center Pin

420232210

$7.64

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Socket Head Screw M6 X 30

205063044

$1.63

7

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

8

Exhaust Valve 31 mm

420254027

$84.30

9

Intake Valve, 38 mm

420254295

$35.04

10

THRUST WASHER - Call your local BRP dealership

420227980

Unavailable

11

Valve Spring Shim

420253967

$10.30

12

Seal

420230510

$13.51

13

Valve Spring, Inner

420238201

$18.63

14

VALVE SPRING, OUTER - Call your local BRP dealership

420238211

Unavailable

15

Valve Spring Retainer

420253957

$12.34

16

Valve Cotter

420253645

$7.01

17

SHIM 2.3 - Call your local BRP dealership

420253974

Unavailable

17

Shim 2.35

420253975

$12.15

17

SHIM 2.4 - Call your local BRP dealership

420253976

$10.82

17

SHIM 2.45 - Call your local BRP dealership

420253977

$10.82

17

SHIM 2.5 - Call your local BRP dealership

420253978

$10.82

17

SHIM 2.55 - Call your local BRP dealership

420253979

Unavailable

17

SHIM 2.6 - Call your local BRP dealership

420253980

$10.82

17

SHIM 2.65 - Call your local BRP dealership

420253981

Unavailable

17

SHIM 2.7 - Call your local BRP dealership

420253982

$10.82

17

SHIM 2.75 - Call your local BRP dealership

420253983

Unavailable

17

SHIM 2.8 - Call your local BRP dealership

420253984

Unavailable

17

SHIM 2.85 - Call your local BRP dealership

420253985

Unavailable

17

SHIM 2.9 - Call your local BRP dealership

420253986

Unavailable

17

SHIM 2.95 - Call your local BRP dealership

420253987

Unavailable

17

SHIM 3.0 - Call your local BRP dealership

420253988

Unavailable

17

SHIM 3.05 - Call your local BRP dealership

420253989

Unavailable

18

Tappet Valve

420253990

$52.21

19

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.01

20

Angular Tube

420922242

$14.10

21

Temperature Sensor

420274040

$51.46

22

Copper Washer

420250640

$0.93

23

Elbow Fitting

420224090

$17.13

24

STUB M8 X 16/20 - Call your local BRP dealership

420241560

Unavailable

25

Cylinder Head Gasket

420650210

$23.10

26

Hex. Flange Nut M10

233101414

$4.70

27

Socket Head Screw M6 X 100 This part replaces 420241601.

420241602

Unavailable

28

VALVE COVER - Call your local BRP dealership

420211662

Unavailable

29

Distance Screw

420241625

$13.51

30

Valve Cover Gasket

420650345

$13.51

31

HOSE NIPPLE - Call your local BRP dealership

420924722

Unavailable

B

Loctite 243, 10 ml

293800060

$21.49

C

Sealant Loctite 648

219703000

$41.01

M

Molykote G-N, 50 g

420297433

$26.09

O

Not Available As Spare Part - Friction Washer

Unavailable
