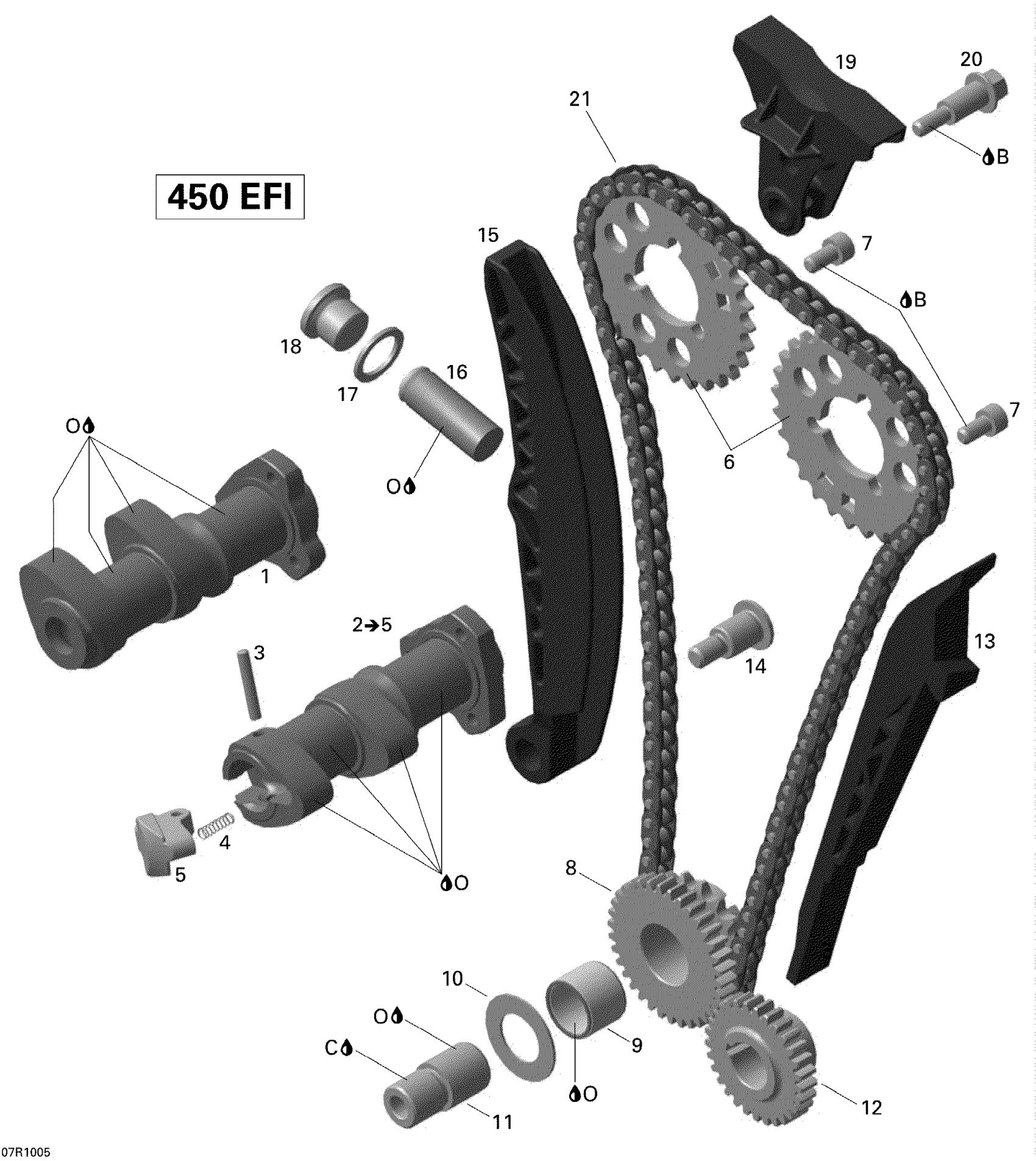

Can-Am DS 450 Xxc, Xmx EFI, 2010 Camshaft And Timing Chain Diagram

#

Description
Price

1

Camshaft, Intake

420220692

$170.74

2

Camshaft, Exhaust | Includes 2 to 5

420620775

$406.12

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

TIMING GEAR - Call your local BRP dealership

420435112

Unavailable

7

Socket Head Screw M6 X 11.5

420840379

$5.91

8

INTERMEDIATE GEAR - Call your local BRP dealership

420434705

$76.89

9

NEEDLE BEARING - Call your local BRP dealership

420832990

$14.49

10

THRUST WASHER - Call your local BRP dealership

420627292

$7.72

11

BEARING PIN - Call your local BRP dealership

420229135

$23.05

12

CONTROL GEAR, 29 TEETH - Call your local BRP dealership

420434721

$79.20

13

Chain Guide

420236310

$29.97

14

BEARING BOLT M8 - Call your local BRP dealership

420241150

$19.20

15

Chain Tension Guide

420236300

$32.28

16

Chain Tensioner

415129408

$52.62

17

O-Ring

420430622

$3.61

18

Plug Screw M16 X 1.5

420240234

$13.58

19

CHAIN GUIDE BOW - Call your local BRP dealership

420236320

Unavailable

20

DISTANCE SCREW M6 X 16 - Call your local BRP dealership

420240960

$10.52

21

Camshaft Chain

420297957

$97.66

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

O

Not Available As Spare Part - Friction Washer

Unavailable
