10- Electrical Harness, Front Section Europe

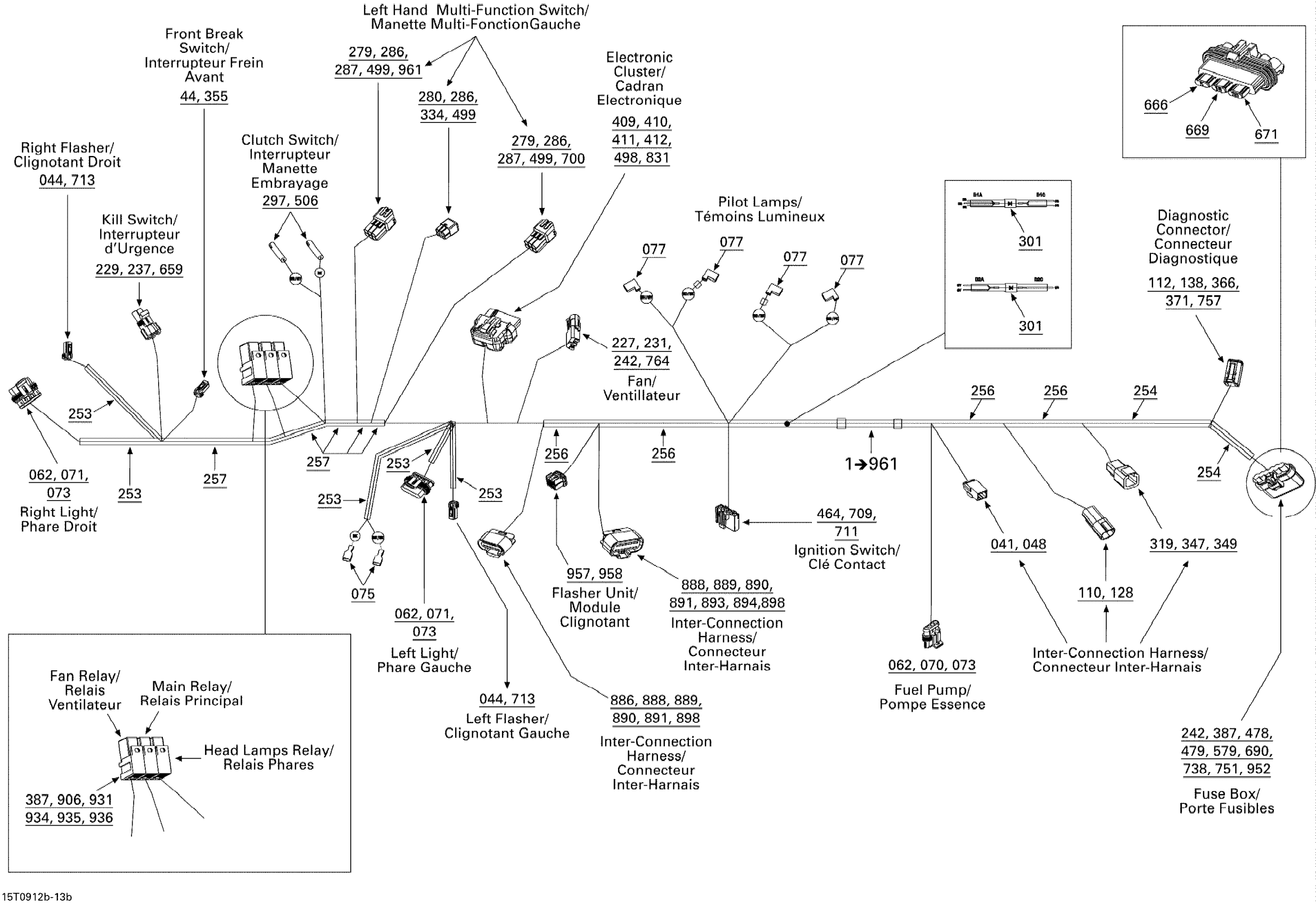

Can-Am DS 450 Xxc, Xmx EFI, 2009 10- Electrical Harness, Front Section Europe Diagram
#
1
FRONT MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 961
710001667
Unavailable
41
Male Terminal
515175232
Unavailable
44
Female Terminal
515175231
Unavailable
48
Male Housing, 3 Circuits
515175494
Unavailable
62
Female Terminal
278001014
Unavailable
70
Female Housing, 4 Circuits
409209700
Unavailable
71
Connector
710000780
Unavailable
73
Wire Seal
278001013
Unavailable
75
Female Terminal
409010700
Unavailable
77
Female Terminal
409010300
Unavailable
110
Male Terminal
278000631
Unavailable
112
Male Terminal
278000631
Unavailable
128
Female Wedge, 4 Circuits
278000636
Unavailable
138
Sealing Cap
293000052
Unavailable
227
Male Terminal
409004300
Unavailable
229
Female Terminal
278000223
Unavailable
231
Female Housing, 2 Circuits
278000217
Unavailable
237
Male Connector, 2 Circuits
278000220
Unavailable
242
Wire Seal
278000218
Unavailable
253
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
279
Male Terminal
409011300
Unavailable
280
Female Terminal
409012100
Unavailable
286
Seal
409012300
Unavailable
287
Cap
710000080
Unavailable
297
Insulated Sheath
278001007
Unavailable
301
Diode
409012700
Unavailable
319
Male Terminal
515175568
Unavailable
334
Female Housing, 6 Circuits
710000081
Unavailable
347
Mâle Terminal Housing, 2 Circuits
278001674
Unavailable
349
Male Lock, 2 Circuits
278001672
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
366
Male Housing, 6 Circuits
515175673
Unavailable
371
Male Wedge, 6 Circuits
515175678
Unavailable
387
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
409
Plug
515175812
Unavailable
410
Female Housing, 24 Circuits
515175801
Unavailable
411
Retainer Block
515175802
Unavailable
412
Wire Seal
515175803
Unavailable
464
Female Terminal
710000274
Unavailable
478
Housing, 6 Circuits
710000888
Unavailable
479
Lock
710000889
Unavailable
498
Female Housing
710000399
Unavailable
499
Wire Seal
710000402
Unavailable
506
Female Terminal
710000421
Unavailable
579
Wire Seal
710000504
Unavailable
659
Wire Seal
278001065
Unavailable
666
Little Fuse, 5 Amperes
710000742
Unavailable
669
Little Fuse, 15 Ampere
710000745
Unavailable
671
Little Fuse, 30 Amperes
710000747
Unavailable
690
Female Terminal
710000890
Unavailable
700
Female Terminal
710000890
Unavailable
709
Lock
710000848
Unavailable
711
Male Housing, 6 Circuits
710000849
Unavailable
713
Female Terminal Housing, 2 Circuits
515176296
Unavailable
738
Cover
710000897
Unavailable
751
Female Terminal
710000918
Unavailable
757
Female Terminal
278001665
Unavailable
764
Clip
710000992
Unavailable
831
Female Terminal
710001131
Unavailable
886
Housing
710001232
Unavailable
888
Seal
710001230
Unavailable
889
Seal
710001233
Unavailable
890
Terminal
710001229
Unavailable
891
Terminal
710001228
Unavailable
893
Housing
710001226
Unavailable
894
Cap
710001225
Unavailable
898
LOCK - Call your local BRP dealership
710001221
Unavailable
906
TERMINAL - Call your local BRP dealership
710001234
Unavailable
931
TERMINAL - Call your local BRP dealership
710001369
Unavailable
934
TERMINAL - Call your local BRP dealership
710001356
Unavailable
935
HOUSING - Call your local BRP dealership
710001355
Unavailable
936
Relay
715900135
Unavailable
952
Clip
293650187
Unavailable
957
HOUSING - Call your local BRP dealership
710001435
Unavailable
958
TERMINAL - Call your local BRP dealership
710001436
Unavailable
961
Male Housing Terminal, 6 Circuits
710001446
Unavailable
