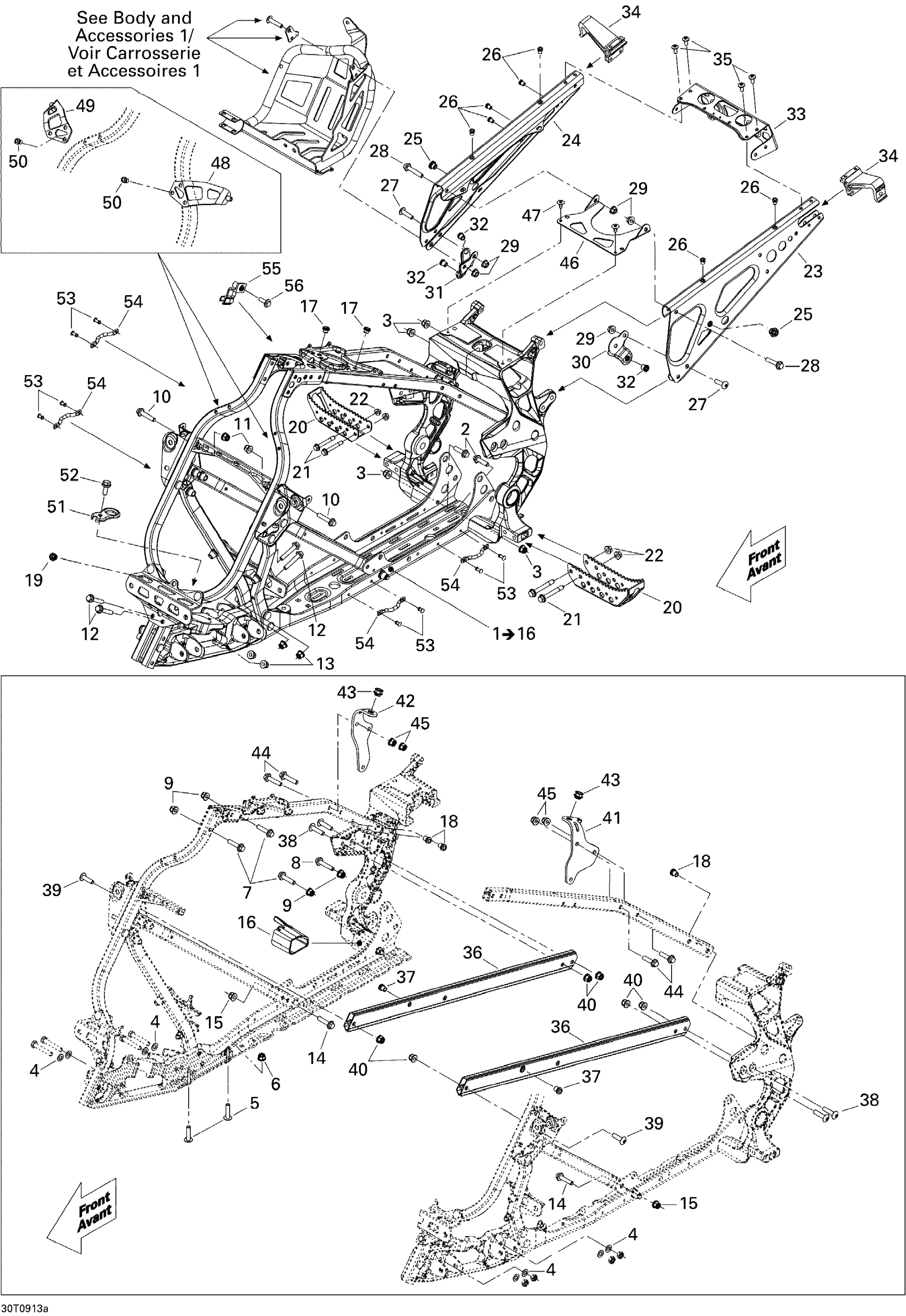

Can-Am DS 450 Xxc, Xmx EFI, 2009 09- Frame Xxc Diagram

#

Description
Price

1

Frame Ass'y

705201043

Unavailable

2

Hex. Flange Screw M8 X 30

207683034

Unavailable

3

Hex. Flange Elastic Nut M8

233281434

Unavailable

4

Washer

506151252

Unavailable

5

TORX TRUSS SCREW M8 X 35 - Call your local BRP dealership

250000316

Unavailable

6

Hex. Flange Elastic Nut M8

233281434

Unavailable

7

Hex. Flange Screw M8 X 35

207683534

Unavailable

8

Hex. Flange Screw M8 X 40

207684034

Unavailable

9

Hex. Flange Elastic Nut M8

233281434

Unavailable

10

Hex. Flange Screw M8 X 40

207684034

Unavailable

11

Hex. Flange Elastic Nut M8

233281434

Unavailable

12

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

207684534

Unavailable

13

Hex. Flange Elastic Nut M8

233281434

Unavailable

14

Hex. Flange Screw M8 X 35

207683534

Unavailable

15

Hex. Flange Elastic Nut M8

233281434

Unavailable

16

GUARD - Call your local BRP dealership

705500931

Unavailable

17

Threaded Insert M6 X 1.0

250100242

Unavailable

18

Insert M5 X 0.8

293450268

Unavailable

19

Insert

293450275

Unavailable

20

FOOTREST - Call your local BRP dealership

705201044

Unavailable

21

HEX. FLANGED SCREW M8 X 60, SCOTCH GRIP - Call your local BRP dealership

207586034

Unavailable

22

Hex. Flange Nut M8

233181434

Unavailable

23

EXTENTION - Call your local BRP dealership

705202547

Unavailable

24

EXTENTION - Call your local BRP dealership

705202548

Unavailable

25

Threaded Insert M6 X 1.0

250100242

Unavailable

26

Insert M5 X 0.8

293450268

Unavailable

27

Hex Torx Truss M8 X30

250000745

Unavailable

28

Hex. Flange Screw M8 X 40

207684034

Unavailable

29

Hex. Flange Nut M8

233181434

Unavailable

30

LH Bracket

707600399

Unavailable

31

RH Bracket

705201485

Unavailable

32

Insert

293450275

Unavailable

33

PLATE SUPPORT - Call your local BRP dealership

705201898

Unavailable

34

REAR FENDER SUPPORT - Call your local BRP dealership

705002094

Unavailable

35

Torx Screw M6 X 16

250000223

Unavailable

36

Side Member

705201950

Unavailable

37

Insert

293450275

Unavailable

38

Torx Truss Screw M8 X 35

250000256

Unavailable

39

Hex Torx Truss M8 X30

250000745

Unavailable

40

Hex. Flange Elastic Nut M8

233281434

Unavailable

41

LH ENGINE SUPPORT - Call your local BRP dealership

705201380

Unavailable

42

RH ENGINE SUPPORT - Call your local BRP dealership

705201381

Unavailable

43

Insert

293450278

Unavailable

44

Hex. Flange Screw M8 X 35

207683534

Unavailable

45

Hex. Flange Elastic Nut M8

233281434

Unavailable

46

REAR BRACE - Call your local BRP dealership

705202014

Unavailable

47

Pop Rivet 3/16"

293150008

Unavailable

48

LH BODY ATTACHMENT PLATE - Call your local BRP dealership

705201461

Unavailable

49

RH BODY ATTACHMENT PLATE - Call your local BRP dealership

705201462

Unavailable

50

Insert M5 X 0.8

293450268

Unavailable

51

RADIATOR GUIDE - Call your local BRP dealership

705201550

Unavailable

52

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

Unavailable

53

Pop Rivet 3/16”

390407200

Unavailable

54

NET ATTACHMENT - Call your local BRP dealership

705002639

Unavailable

55

Cable Support

707000561

Unavailable

56

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable
