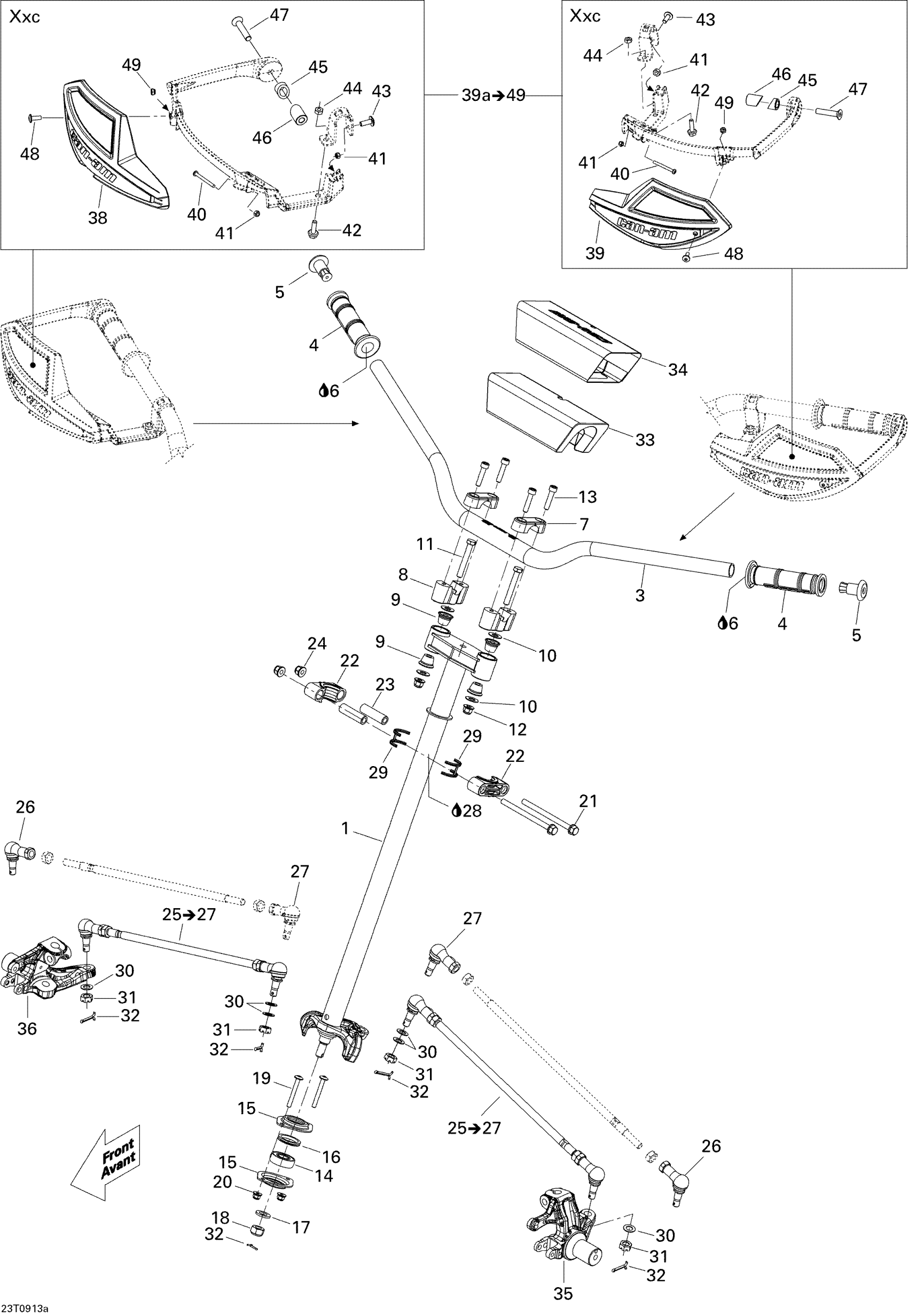

Can-Am DS 450 Xxc, Xmx EFI, 2009 07- Steering Diagram

#

Description
Price

1

PAINT COLUMN - Call your local BRP dealership

709401645

Unavailable

3

HANDLE BAR ALUMINUM - Call your local BRP dealership

709400668

Unavailable

4

Handle Grip

709400493

Unavailable

5

END PIECE - Call your local BRP dealership

709400627

Unavailable

6

Loctite 406, 7 Oz

293800100

Unavailable

7

Support

709400496

Unavailable

8

ALUMINUM SUPPORT - Call your local BRP dealership

709400592

Unavailable

9

DAMPER BUSHING - Call your local BRP dealership

293830131

Unavailable

10

Washer

506152194

Unavailable

11

Screw Hex. M10 X 70

250001024

Unavailable

12

Elastic Flange Nut M10

232501416

Unavailable

13

Socket Head Screw

205083534

Unavailable

14

Ball Bearing

709400439

Unavailable

15

THRUST WASHER - Call your local BRP dealership

709400468

Unavailable

16

Seal

293250177

Unavailable

17

Flat Washer

234021430

Unavailable

18

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

Unavailable

19

Torx Screw M6 X 50

250000317

Unavailable

20

Flange Elastic Nut M6

233261434

Unavailable

21

Hex. Flange Screw M8 X 110

230681034

Unavailable

22

Half Bushing

709400471

Unavailable

23

BUSHING - Call your local BRP dealership

709400072

Unavailable

24

Hex. Flange Elastic Nut M8

233281434

Unavailable

25

ROD_TIE ASSY - Call your local BRP dealership

709400352

Unavailable

25

TIE ROD ASS'Y - Call your local BRP dealership | Includes 25 to 27, Xmx

709400673

Unavailable

26

BALL JOINT - Call your local BRP dealership

715900053

Unavailable

27

BALL JOINT - Call your local BRP dealership

715900052

Unavailable

28

Synthetic Grease, 400 G

293550010

Unavailable

29

HALF-SEAL - Call your local BRP dealership

293300120

Unavailable

30

Flat Washer

250200084

Unavailable

31

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

32

Cotter Pin

250400034

Unavailable

33

Foam

709400422

Unavailable

34

Cover

709400423

Unavailable

35

LH KNUCKLE - Call your local BRP dealership

709400346

Unavailable

36

RH KNUCKLE - Call your local BRP dealership

709400348

Unavailable

38

RH DEFLECTOR - Call your local BRP dealership | Xxc

709400616

Unavailable

39

LH DEFLECTOR - Call your local BRP dealership | Xxc

709400617

Unavailable

39a

Air Deflector Support Kit | X

715001378

Unavailable

40

Socket Head Screw M4 X 40 | X

205444086

Unavailable

41

Elastic Stop Nut M4

232541414

Unavailable

42

Hex. Flange Screw M6 X 20

207662044

Unavailable

43

Torx Screw M6 X 16

250000223

Unavailable

44

Hex. Elastic Stop Nut M6

232561600

Unavailable

45

Small Bracket | DS 650 X

709400161

Unavailable

46

Large Bracket | DS 650 X

709400162

Unavailable

47

Socket Head Screw | X

205384034

Unavailable

48

Torx Screw M5 X 14

250000742

Unavailable

49

Hex. Elastic Nut M5 | X

232551600

Unavailable
