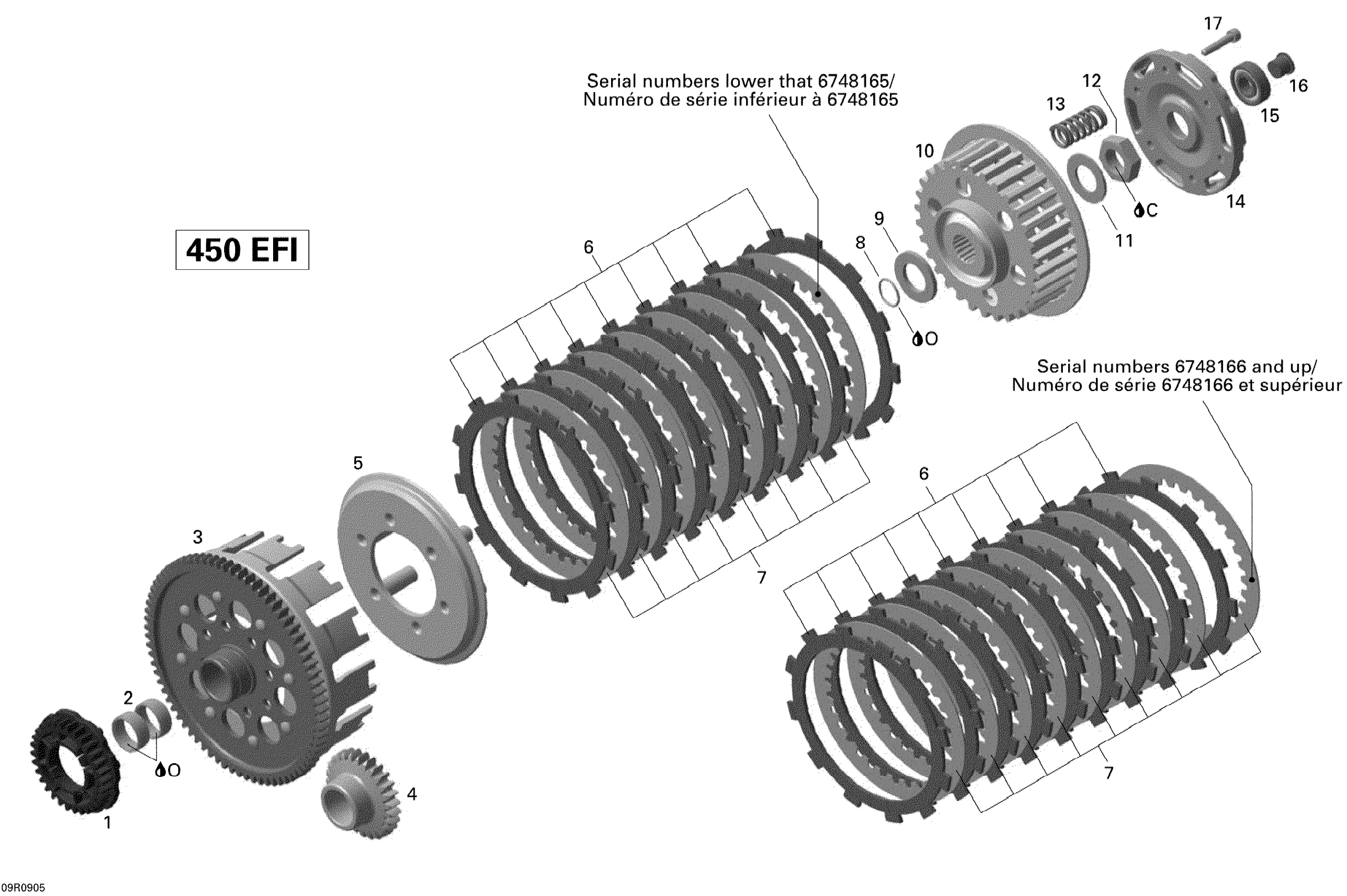

Can-Am DS 450 Xxc, Xmx EFI, 2009 05- Clutch Diagram

#

Description
Price

1

OIL PUMP GEAR - Call your local BRP dealership

420434710

Unavailable

2

Needle Bearing

420232742

Unavailable

3

Clutch Drum

420259855

Unavailable

4

DRIVE GEAR, 27 TEETH - Call your local BRP dealership

420434680

Unavailable

5

Inner Plate

420259889

Unavailable

6

Friction Plate 2.6 mm

420259904

Unavailable

7

Clutch Plate

420259912

Unavailable

8

O-Ring

420250890

Unavailable

9

THRUST WASHER - Call your local BRP dealership

420227601

Unavailable

10

Clutch Hub

420259872

Unavailable

10

Clutch Hub | Serial numbers 6748166 and up

703500742

Unavailable

11

Spring Washer

420245680

Unavailable

12

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

13

Clutch Spring

420239625

Unavailable

14

Retaining Plate

420259131

Unavailable

15

Balll Bearing

420232400

Unavailable

16

THRUST HUB - Call your local BRP dealership

420259141

Unavailable

17

Socket Head Screw M5 X 25

420240187

Unavailable

C

Sealant Loctite 648

219703000

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable
