10- Electrical System

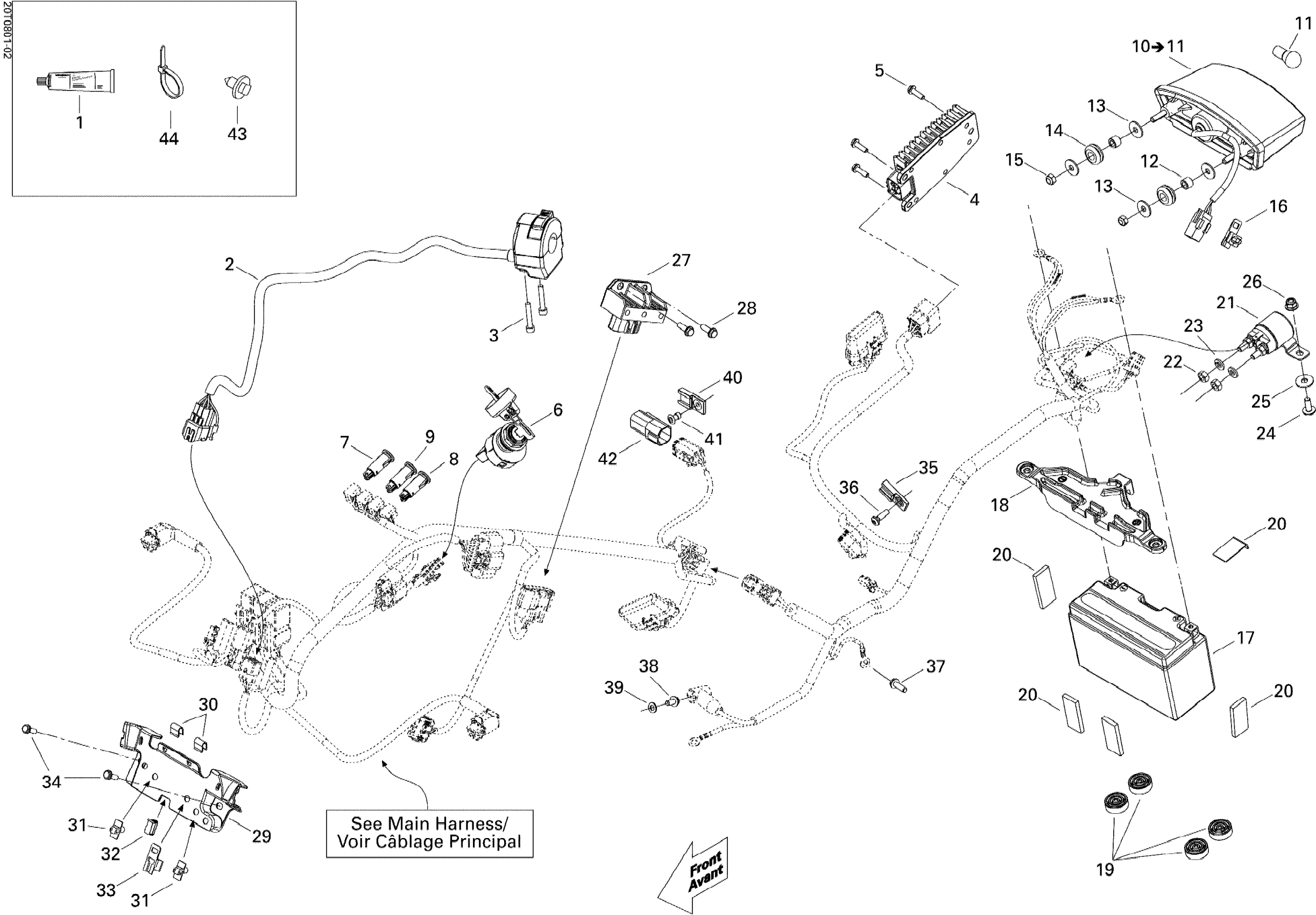

Can-Am DS 450 X, 2008 10- Electrical System Diagram
#
1
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
2
Inter.Multi.Fon*Switch-M.Fuct.
710001762
Unavailable
3
SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership
205053088
Unavailable
4
Rectifier
710000803
Unavailable
5
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
6
Ignition Switch With Key
710002323
Unavailable
7
PILOT LAMP - Call your local BRP dealership
710002527
Unavailable
8
PILOT LAMP - Call your local BRP dealership
710002526
Unavailable
9
PILOT LAMP, NEUTRAL - Call your local BRP dealership
710001012
Unavailable
10
Tail Light Ass'y | Includes 19 to 20
710001041
Unavailable
11
Bulb
520000758
Unavailable
12
SPACER - Call your local BRP dealership
293900089
Unavailable
13
Flat Washer
250200082
Unavailable
14
Grommet
709000582
Unavailable
15
Elastic Stop Nut M6
232561434
Unavailable
16
Housing Support
515175283
Unavailable
17
Battery 6,5A
715500305
Unavailable
18
BATTERY SUPPORT - Call your local BRP dealership
710000963
Unavailable
19
Rubber Stopper
708000506
Unavailable
20
RUBBER PAD - Call your local BRP dealership
293830129
Unavailable
21
Starter Relay
710007777
Unavailable
22
Hex. Nut M6
232061600
Unavailable
23
Lock Washer Helical M6
234161601
Unavailable
24
Torx Screw M6 X 16
250000223
Unavailable
25
Flat Washer
250200097
Unavailable
26
Flange Elastic Nut M6
233261434
Unavailable
27
Light Control
710001028
Unavailable
28
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
29
Housing Support
710001074
Unavailable
30
Clip
414479100
Unavailable
31
Mount Dart
293730040
Unavailable
32
CLIP - Call your local BRP dealership
409014200
Unavailable
33
Housing Support
515175283
Unavailable
34
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
35
Clip
515175821
Unavailable
36
Torx Screw K50 X 16
250000720
Unavailable
37
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
38
SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership
207551034
Unavailable
39
Flat Washer
234051430
Unavailable
40
Clip
270000141
Unavailable
41
Avex Rivet
390909200
Unavailable
42
Diagnostic Connector
278002704
Unavailable
43
Mount Dart
293730040
Unavailable
44
Tie Wrap 142 mm
293750002
Unavailable
44
Tie-Rap 180 mm
414115200
Unavailable
44
Tie Wrap 368 mm
293750008
Unavailable
44
Tie-rap 627 mm
293750041
Unavailable
45
Neoprene Seal (1PAC=3M)
219704364
Unavailable
