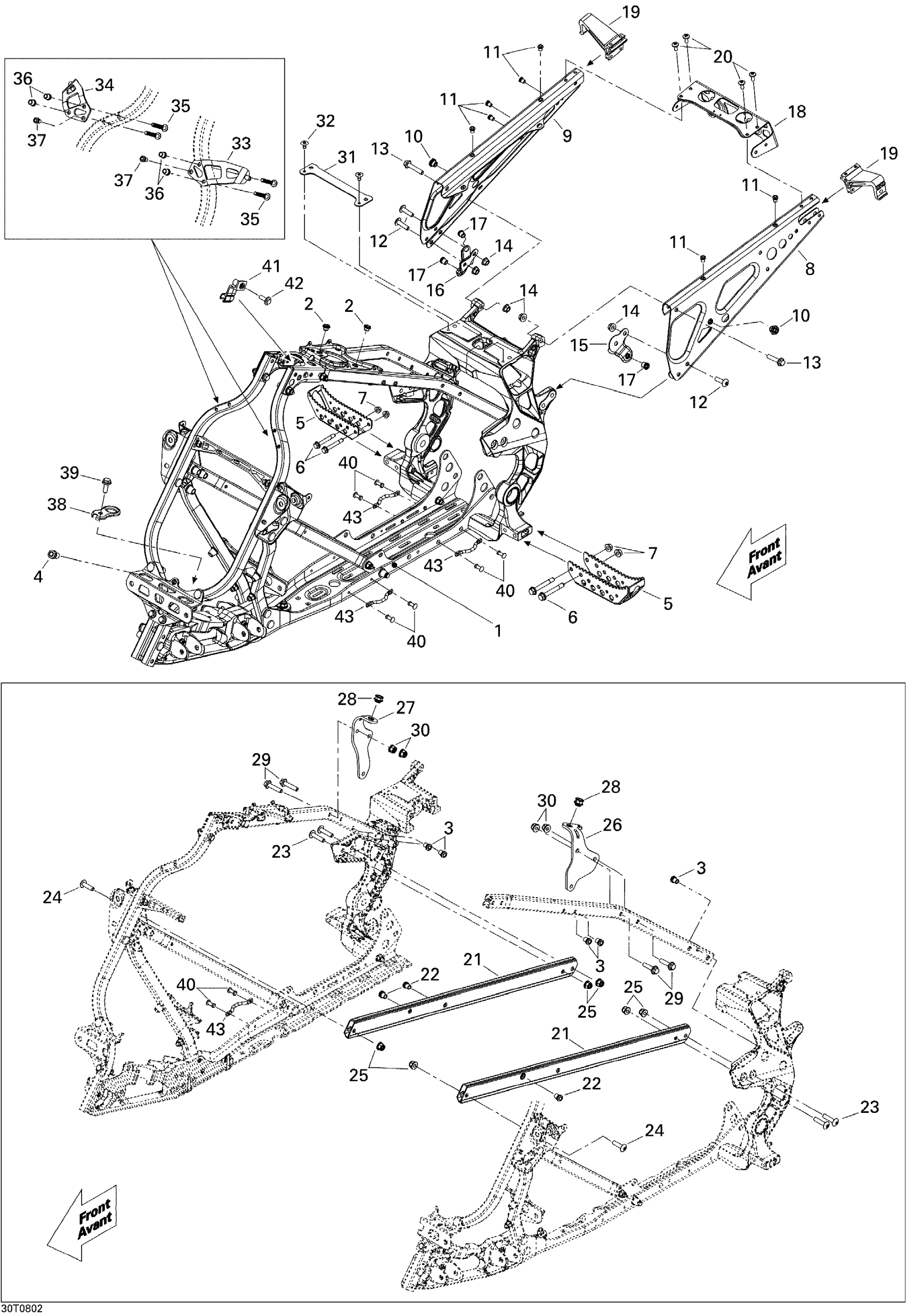

Can-Am DS 450 X, 2008 09- Frame Diagram

#

Description
Price

1

Frame Ass'y

705201043

Unavailable

2

Threaded Insert M6 X 1.0

250100242

Unavailable

3

Insert M5 X 0.8

293450268

Unavailable

4

Insert

293450275

Unavailable

5

FOOTREST - Call your local BRP dealership

705201044

Unavailable

6

HEX. FLANGED SCREW M8 X 60, SCOTCH GRIP - Call your local BRP dealership

207586034

Unavailable

7

Hex. Flange Nut M8

233181434

Unavailable

8

EXTENTION - Call your local BRP dealership

705202547

Unavailable

9

EXTENTION - Call your local BRP dealership

705202548

Unavailable

10

Threaded Insert M6 X 1.0

250100242

Unavailable

11

Insert M5 X 0.8

293450268

Unavailable

12

Hex Torx Truss M8 X30

250000745

Unavailable

13

Hex. Flange Screw M8 X 40

207684034

Unavailable

14

Hex. Flange Nut M8

233181434

Unavailable

15

LH Bracket

707600399

Unavailable

16

RH Bracket

705201485

Unavailable

17

Insert

293450275

Unavailable

18

PLATE SUPPORT - Call your local BRP dealership

705201898

Unavailable

19

REAR FENDER SUPPORT - Call your local BRP dealership

705002094

Unavailable

20

Torx Screw M6 X 16

250000223

Unavailable

21

Side Member

705201950

Unavailable

22

Insert

293450275

Unavailable

23

Torx Truss Screw M8 X 35

250000256

Unavailable

24

Hex Torx Truss M8 X30

250000745

Unavailable

25

Hex. Flange Elastic Nut M8

233281434

Unavailable

26

LH ENGINE SUPPORT - Call your local BRP dealership

705201380

Unavailable

27

RH ENGINE SUPPORT - Call your local BRP dealership

705201381

Unavailable

28

Insert

293450278

Unavailable

29

Hex. Flange Screw M8 X 35

207683534

Unavailable

30

Hex. Flange Elastic Nut M8

233281434

Unavailable

31

REAR BRACE - Call your local BRP dealership

705201406

Unavailable

32

Pop Rivet 3/16"

293150008

Unavailable

33

LH BODY ATTACHMENT PLATE - Call your local BRP dealership

705201461

Unavailable

34

RH BODY ATTACHMENT PLATE - Call your local BRP dealership

705201462

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

37

Insert M5 X 0.8

293450268

Unavailable

38

RADIATOR GUIDE - Call your local BRP dealership

705201550

Unavailable

39

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

Unavailable

40

Pop Rivet 3/16”

390407200

Unavailable

41

Cable Support

707000561

Unavailable

42

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

43

NET ATTACHMENT - Call your local BRP dealership

705002639

Unavailable
