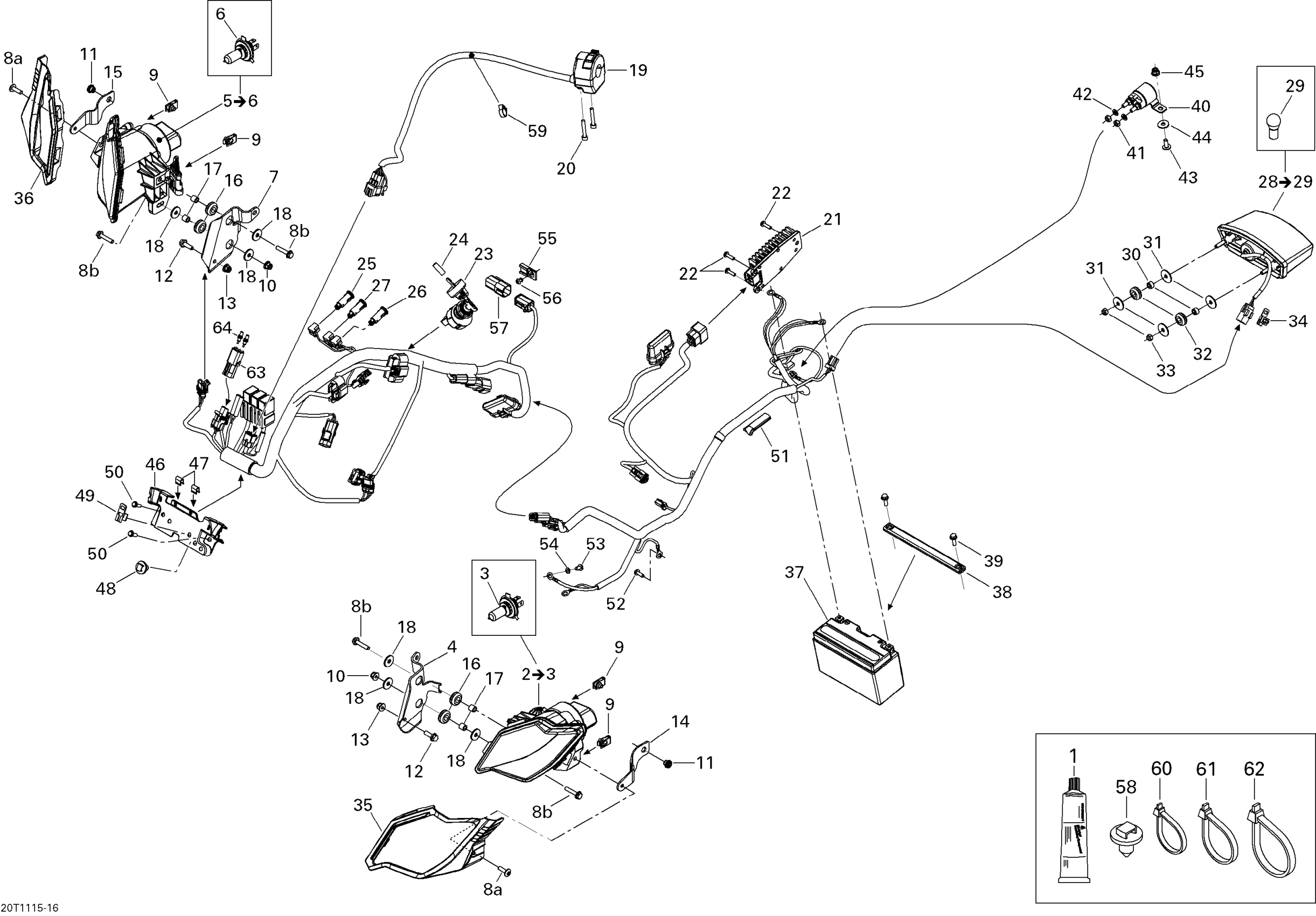

Can-Am DS 450 EFI, 2011 Electrical System Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

2

LH FRONT LIGHT - Call your local BRP dealership | Includes 3 to 4

710001469

$83.82

3

Bulb, 12V 35/35W

710000871

$32.28

4

LH FRONT SUPPORT - Call your local BRP dealership

710001763

$10.57

5

RH FRONT LIGHT - Call your local BRP dealership | Includes 7 to 8

710001470

$77.66

6

Bulb, 12V 35/35W

710000871

$32.28

7

RH FRONT SUPPORT - Call your local BRP dealership

710001764

Unavailable

8a

Torx Screw M6 X 20

250000722

$1.34

8b

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

9

Panel Nut M6 X 1.0

250100198

$1.73

10

Flange Elastic Nut M6

233261434

$3.61

11

Threaded Insert M6 X 1.0

250100242

$2.54

12

Hex. Flange Screw M6 X 20

207662034

$1.74

13

Flange Elastic Nut M6

233261434

$3.61

14

LH SUPPORT - Call your local BRP dealership

710001519

$6.49

15

RH SUPPORT - Call your local BRP dealership

710001520

Unavailable

16

Grommet

709000582

$4.38

17

Bushing

293900105

$6.26

18

Flat Washer

224061201

$1.11

19

Inter.Multi.Fon*Switch-M.Fuct.

710001762

$129.20

20

SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership

205053088

Unavailable

21

Rectifier

710000803

$78.43

22

Hex. Flange Screw, Scotch Grip

207551634

$1.66

23

Ignition Switch With Key

710002323

$70.17

23a

Key, Groove on Right Side

715900029

$21.42

24

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

25

PILOT LAMP - Call your local BRP dealership

710002527

Unavailable

26

PILOT LAMP - Call your local BRP dealership

710002526

$16.89

27

PILOT LAMP, NEUTRAL - Call your local BRP dealership

710001012

$16.12

28

Tail Light Ass'y | Includes 19 to 20

710001041

$59.97

29

Bulb

520000758

$7.49

30

SPACER - Call your local BRP dealership

293900089

Unavailable

31

FLAT WASHER - Call your local BRP dealership

250200099

$2.02

32

Grommet

709000582

$4.38

33

Elastic Stop Nut M6

232561434

$1.55

34

Housing Support

515175283

$8.43

35

PROTECTOR - Call your local BRP dealership

710001310

$9.74

36

PROTECTOR - Call your local BRP dealership

710001311

$9.74

37

Battery 6,5A

715500305

$101.37

38

BATTERY SUPPORT - Call your local BRP dealership

710002266

Unavailable

39

Hex. Flange Screw M6 X 20

207662034

$1.74

40

Starter Relay

710007777

$46.89

41

Hex. Nut M6

232061600

$0.91

42

Lock Washer Helical M6

234161601

$0.92

43

Torx Screw M6 X 16

250000223

$1.74

45

Flange Elastic Nut M6

233261434

$3.61

46

Housing Support

710001074

Unavailable

47

Clip

414479100

$1.86

48

Mount Dart

293730040

$0.86

49

Housing Support

515175283

$8.43

50

Hex. Flange Screw, Scotch Grip

207551634

$1.66

51

Neoprene Seal (1PAC=3M)

219704364

$22.72

52

Hex. Flange Screw, Scotch Grip

207551634

$1.66

53

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207551034

Unavailable

54

Flat Washer

234051430

$2.26

55

Clip

270000141

$8.33

56

Avex Rivet

390909200

$0.29

57

Diagnostic Connector

278002704

$15.57

58

Mount Dart

293730040

$0.86

59

Clamp

293650082

$3.33

60

Tie Wrap 142 mm

293750002

$0.88

61

Tie-Rap 180 mm

414115200

$0.09

62

Tie Wrap 368 mm

293750008

$0.85

63

Female Housing, 2 Circuits

278000217

$7.59

64

Wire Seal

278000216

$2.55
