- DS 450 EFI, 2011
07- Steering

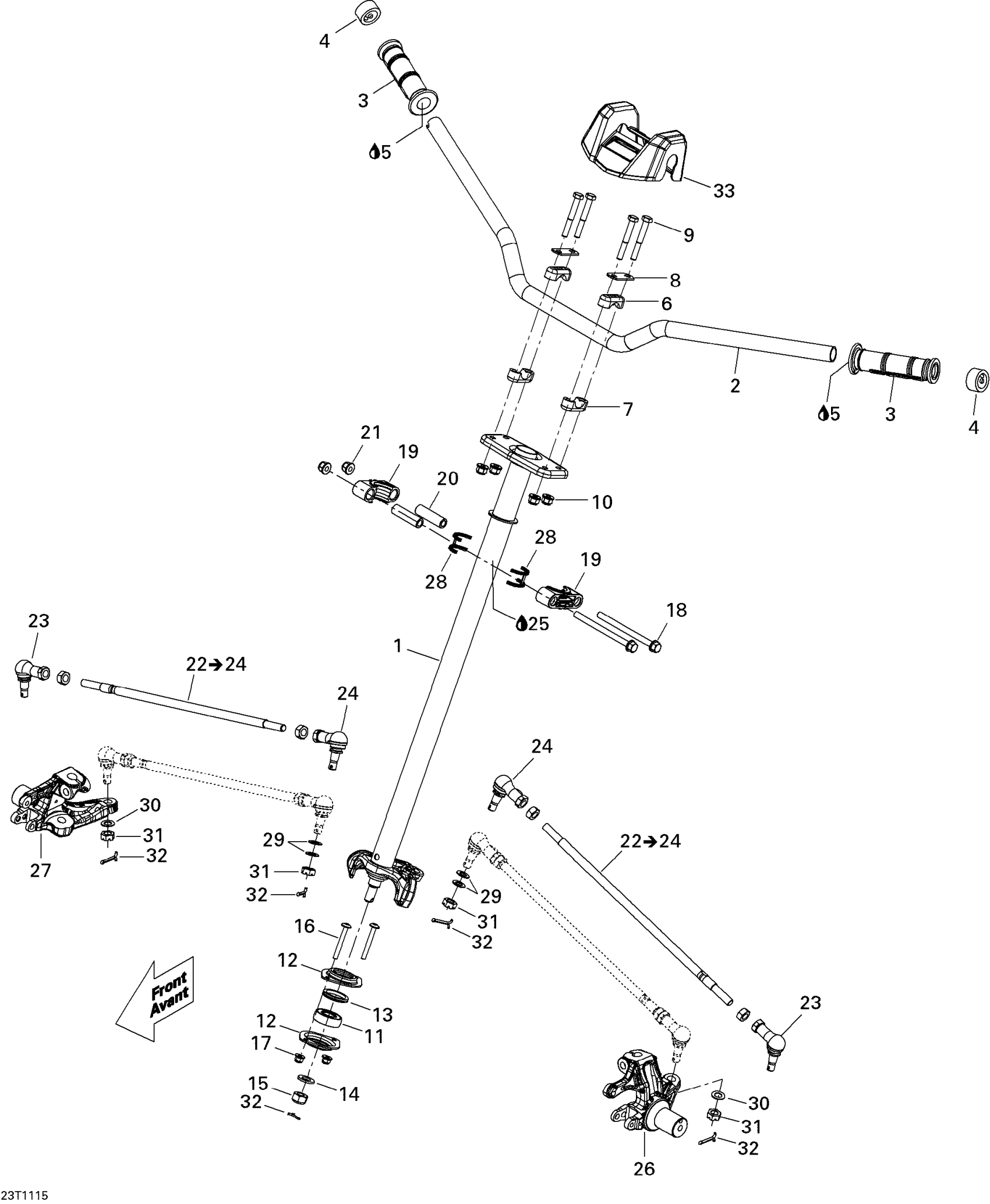

Can-Am DS 450 EFI, 2011 07- Steering Diagram
#
Description
Price
1
STEERING COLUMN - Call your local BRP dealership
709400802
Unavailable
2
HANDLE BAR - Call your local BRP dealership
709400369
Unavailable
3
Handle Grip
709400493
Unavailable
4
END PIECE - Call your local BRP dealership
709400627
Unavailable
5
Loctite 406, 7 Oz
293800100
Unavailable
6
Steering Support
709400919
Unavailable
7
Steering Support
709400919
Unavailable
8
Stiffner
709400509
Unavailable
9
SCREW-HEX.CAP DIN.931 - Call your local BRP dealership
207086034
Unavailable
10
Hex. Flange Elastic Nut M8
233281434
Unavailable
11
Ball Bearing
709400439
Unavailable
12
THRUST WASHER - Call your local BRP dealership
709400468
Unavailable
13
Seal
293250177
Unavailable
14
Flat Washer
234021430
Unavailable
15
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
250100090
Unavailable
16
Torx Screw M6 X 50
250000317
Unavailable
17
Flange Elastic Nut M6
233261434
Unavailable
18
Hex. Flange Screw M8 X 110
230681034
Unavailable
19
Half Bushing
709400471
Unavailable
20
BUSHING - Call your local BRP dealership
709400072
Unavailable
21
Hex. Flange Elastic Nut M8
233281434
Unavailable
22
ROD_TIE ASSY - Call your local BRP dealership
709400352
Unavailable
23
BALL JOINT - Call your local BRP dealership
715900053
Unavailable
24
BALL JOINT - Call your local BRP dealership
715900052
Unavailable
25
Synthetic Grease, 400 G
293550010
Unavailable
26
LH KNUCKLE - Call your local BRP dealership
709400346
Unavailable
27
RH KNUCKLE - Call your local BRP dealership
709400348
Unavailable
28
HALF-SEAL - Call your local BRP dealership
293300120
Unavailable
29
Flat Washer
250200084
Unavailable
30
Flat Washer
250200084
Unavailable
31
CASTLE NUT - Call your local BRP dealership
250100094
Unavailable
32
Cotter Pin
250400034
Unavailable
33
STEERING COVER - Call your local BRP dealership
709400452
Unavailable
