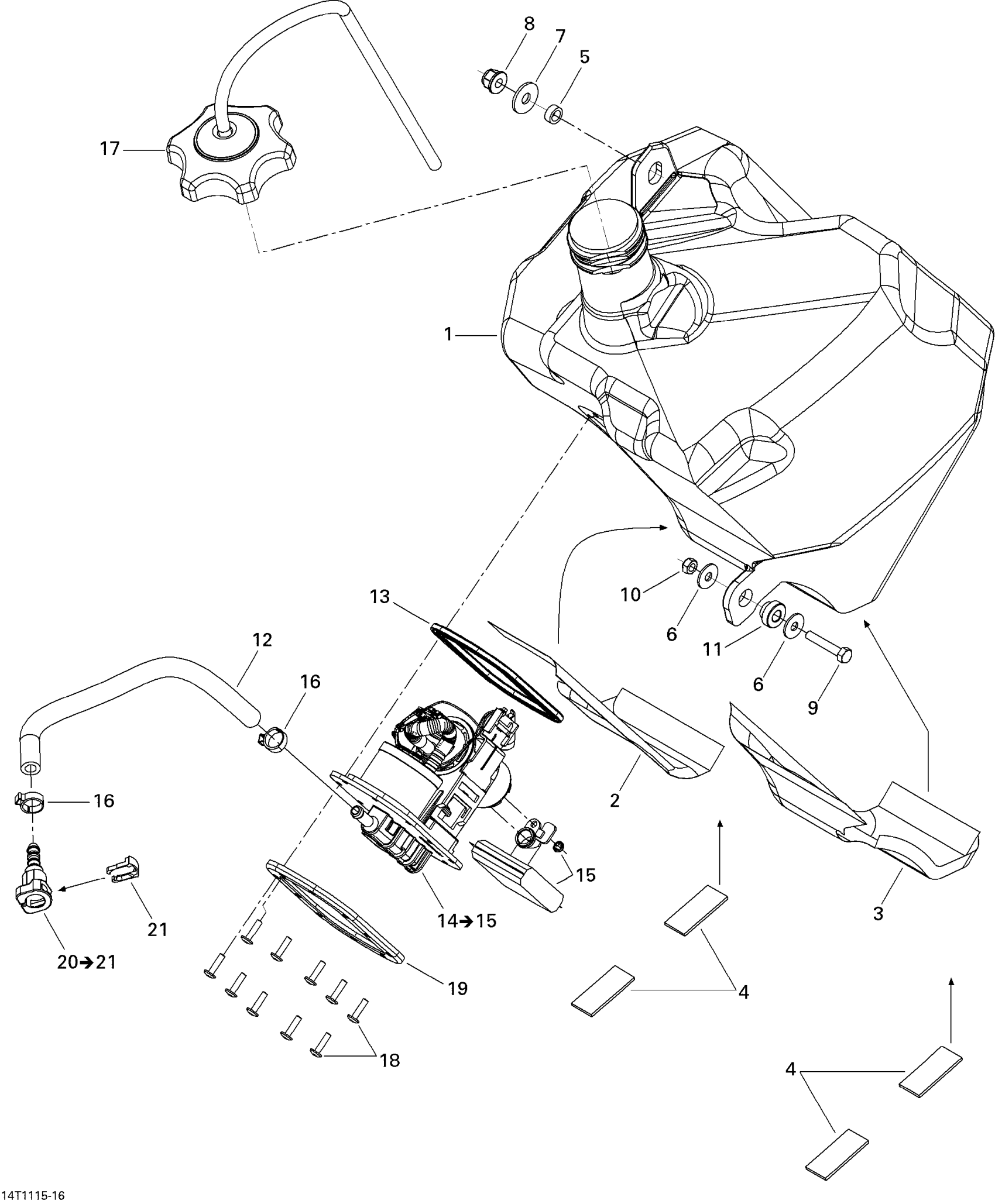

Can-Am DS 450 EFI, 2011 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000237

Unavailable

2

REFLECTIVE SHEET - Call your local BRP dealership

709000242

Unavailable

3

REFLECTIVE SHEET - Call your local BRP dealership

709000243

Unavailable

4

Rubber Pad

709000401

$9.79

5

BUSHING - Call your local BRP dealership

293900067

Unavailable

6

Flat Washer

250200082

$0.42

7

Flat Washer M8

234082430

$2.11

8

Hex. Flange Elastic Nut M8

233281434

$2.11

9

Hex. Flange Screw M6 X 35

207063544

$1.37

10

Elastic Stop Nut M6

232561434

$1.99

11

BUSHING - Call your local BRP dealership

293900088

Unavailable

12

Was 709000163 Fuel Line

219704440

$28.99

13

Joint Etanche *Gasket

709000540

$36.99

14

Fuel Pump

709000386

$361.99

15

Filter Kit

715900063

Unavailable

16

Crimp Clamp, 15.3-706R

293650047

$3.29

17

FUEL CAP - Call your local BRP dealership

709000117

Unavailable

18

Torx Screw M4 X 16

250000750

$1.68

19

Pump Ring

709000170

$17.83

20

Female Quick Fitting Ass'y

709000125

$15.49

21

Locking Clip

513033135

$5.89
