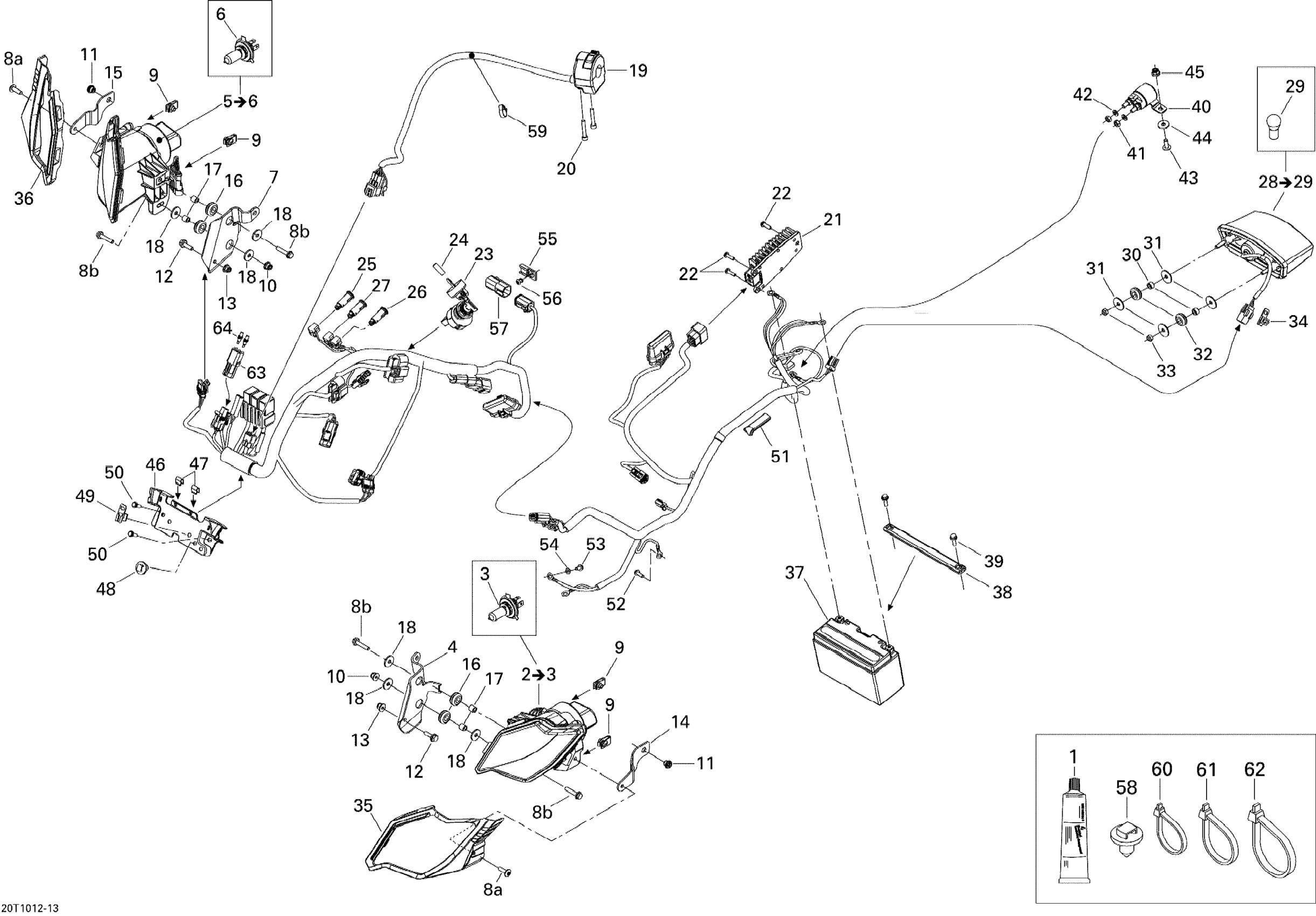

Can-Am DS 450 EFI, 2010 10- Electrical System Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

2

LH FRONT LIGHT - Call your local BRP dealership | Includes 3 to 4

710001469

Unavailable

3

Bulb, 12V 35/35W

710000871

Unavailable

4

LH FRONT SUPPORT - Call your local BRP dealership

710001763

Unavailable

5

RH FRONT LIGHT - Call your local BRP dealership | Includes 7 to 8

710001470

Unavailable

6

Bulb, 12V 35/35W

710000871

Unavailable

7

RH FRONT SUPPORT - Call your local BRP dealership

710001764

Unavailable

8a

Torx Screw M6 X 20

250000722

Unavailable

8b

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

Unavailable

9

Panel Nut M6 X 1.0

250100198

Unavailable

10

Flange Elastic Nut M6

233261434

Unavailable

11

Threaded Insert M6 X 1.0

250100242

Unavailable

12

Hex. Flange Screw M6 X 20

207662034

Unavailable

13

Flange Elastic Nut M6

233261434

Unavailable

14

LH SUPPORT - Call your local BRP dealership

710001519

Unavailable

15

RH SUPPORT - Call your local BRP dealership

710001520

Unavailable

16

Grommet

709000582

Unavailable

17

Bushing

293900105

Unavailable

18

Flat Washer

224061201

Unavailable

19

Inter.Multi.Fon*Switch-M.Fuct.

710001762

Unavailable

20

SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership

205053088

Unavailable

21

Rectifier

710000803

Unavailable

22

Hex. Flange Screw, Scotch Grip

207551634

Unavailable

23

Ignition Switch With Key

710002323

Unavailable

24

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

25

PILOT LAMP - Call your local BRP dealership

710002527

Unavailable

26

PILOT LAMP - Call your local BRP dealership

710002526

Unavailable

27

PILOT LAMP, NEUTRAL - Call your local BRP dealership

710001012

Unavailable

28

Tail Light Ass'y | Includes 19 to 20

710001041

Unavailable

29

Bulb

520000758

Unavailable

30

SPACER - Call your local BRP dealership

293900089

Unavailable

31

FLAT WASHER - Call your local BRP dealership

250200099

Unavailable

32

Grommet

709000582

Unavailable

33

Elastic Stop Nut M6

232561434

Unavailable

34

Housing Support

515175283

Unavailable

35

PROTECTOR - Call your local BRP dealership

710001310

Unavailable

36

PROTECTOR - Call your local BRP dealership

710001311

Unavailable

37

Battery 6,5A

715500305

Unavailable

38

BATTERY SUPPORT - Call your local BRP dealership

710002266

Unavailable

39

Hex. Flange Screw M6 X 20

207662034

Unavailable

40

Starter Relay

710007777

Unavailable

41

Hex. Nut M6

232061600

Unavailable

42

Lock Washer Helical M6

234161601

Unavailable

43

Torx Screw M6 X 16

250000223

Unavailable

45

Flange Elastic Nut M6

233261434

Unavailable

46

Housing Support

710001074

Unavailable

47

Clip

414479100

Unavailable

48

Mount Dart

293730040

Unavailable

49

Housing Support

515175283

Unavailable

50

Hex. Flange Screw, Scotch Grip

207551634

Unavailable

51

Neoprene Seal (1PAC=3M)

219704364

Unavailable

52

Hex. Flange Screw, Scotch Grip

207551634

Unavailable

53

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207551034

Unavailable

54

Flat Washer

234051430

Unavailable

55

Clip

270000141

Unavailable

56

Avex Rivet

390909200

Unavailable

57

Diagnostic Connector

278002704

Unavailable

58

Mount Dart

293730040

Unavailable

59

Clamp

293650082

Unavailable

60

Tie Wrap 142 mm

293750002

Unavailable

61

Tie-Rap 180 mm

414115200

Unavailable

62

Tie Wrap 368 mm

293750008

Unavailable

63

Female Housing, 2 Circuits

278000217

Unavailable

64

Wire Seal

278000216

Unavailable
