- DS 450 EFI, 2010
09- Frame 2

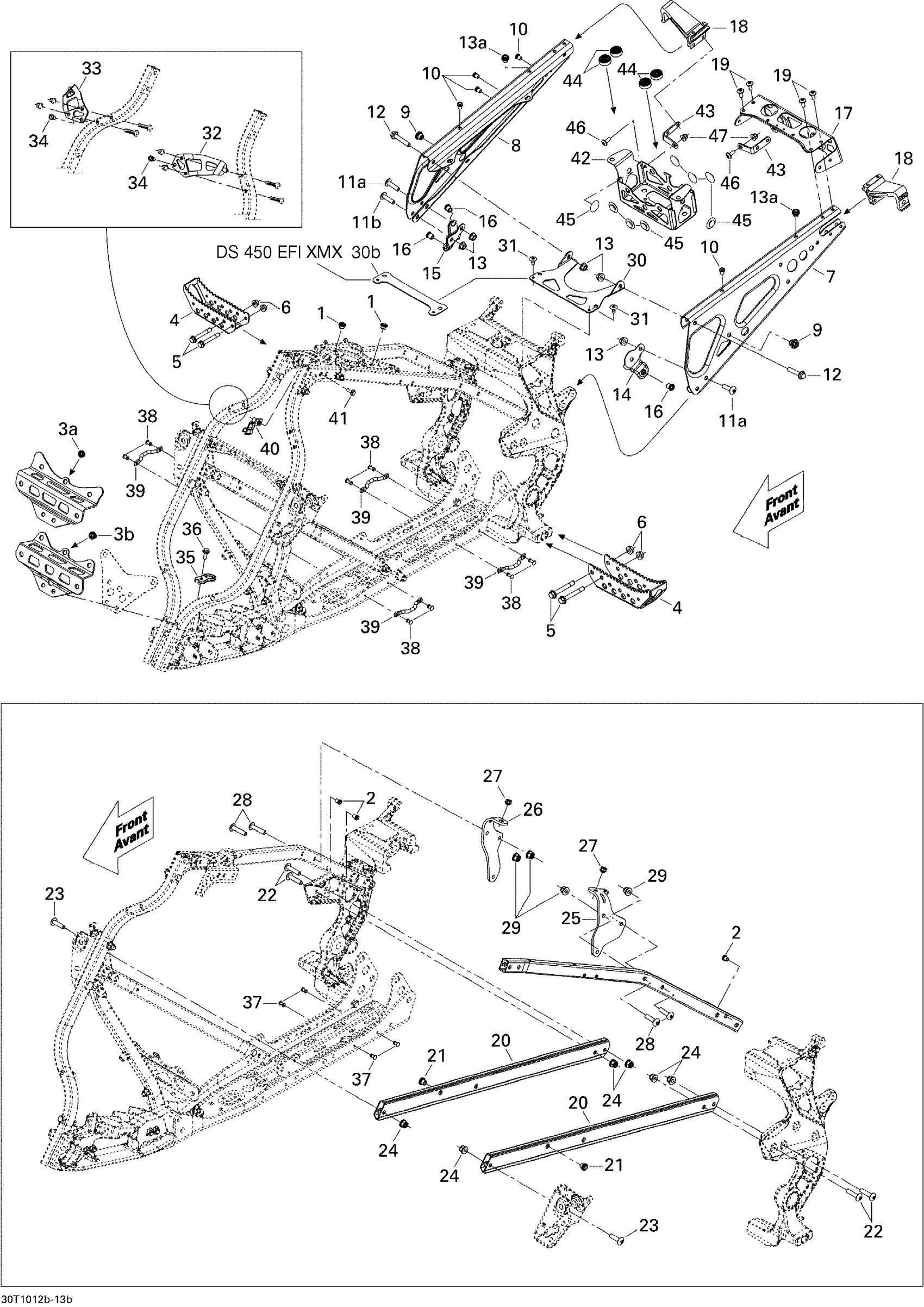

Can-Am DS 450 EFI, 2010 09- Frame 2 Diagram
#
1
Threaded Insert M6 X 1.0
250100242
Unavailable
2
Insert M5 X 0.8
293450268
Unavailable
3a
Not Available As Spare Parts
XXX
Unavailable
3b
Insert
293450275
Unavailable
4
FOOTREST - Call your local BRP dealership
705201044
Unavailable
5
HEX. FLANGED SCREW M8 X 60, SCOTCH GRIP - Call your local BRP dealership
207586034
Unavailable
6
Hex. Flange Nut M8
233181434
Unavailable
7
EXTENTION - Call your local BRP dealership
705202547
Unavailable
8
EXTENTION - Call your local BRP dealership
705202548
Unavailable
9
Threaded Insert M6 X 1.0
250100242
Unavailable
10
Insert M5 X 0.8
293450268
Unavailable
11a
Hex Torx Truss M8 X30
250000745
Unavailable
11b
Hex Torx Truss M8 X30
250000745
Unavailable
12
Hex. Flange Screw M8 X 40
207684034
Unavailable
13
Hex. Flange Nut M8
233181434
Unavailable
13a
Insert
293450275
Unavailable
14
LH Bracket
707600399
Unavailable
15
RH Bracket
705201485
Unavailable
16
Insert
293450275
Unavailable
17
PLATE SUPPORT - Call your local BRP dealership
705201898
Unavailable
18
REAR FENDER SUPPORT - Call your local BRP dealership
705002094
Unavailable
19
Torx Screw M6 X 16
250000223
Unavailable
20
Side Member
705201950
Unavailable
21
Insert
293450275
Unavailable
22
Torx Truss Screw M8 X 35
250000256
Unavailable
23
Hex Torx Truss M8 X30
250000745
Unavailable
24
Hex. Flange Elastic Nut M8
233281434
Unavailable
25
LH ENGINE SUPPORT - Call your local BRP dealership
705201380
Unavailable
26
RH ENGINE SUPPORT - Call your local BRP dealership
705201381
Unavailable
27
Insert
293450278
Unavailable
28
Torx Truss Screw M8 X 35
250000256
Unavailable
29
Hex. Flange Elastic Nut M8
233281434
Unavailable
30
REAR BRACE - Call your local BRP dealership
705202014
Unavailable
30b
Not Available As Spare Parts
XXX
Unavailable
31
Pop Rivet 3/16"
293150008
Unavailable
32
LH BODY ATTACHMENT PLATE - Call your local BRP dealership
705201461
Unavailable
33
RH BODY ATTACHMENT PLATE - Call your local BRP dealership
705201462
Unavailable
34
Insert M5 X 0.8
293450268
Unavailable
35
RADIATOR GUIDE - Call your local BRP dealership
705201550
Unavailable
36
Hex. Flange Screw M6 X 16, Scotch Grip
207561634
Unavailable
37
Pop Rivet 3/16”
390407200
Unavailable
38
Not Available As Spare Parts
XXX
Unavailable
39
Not Available As Spare Parts
XXX
Unavailable
40
Cable Support
707000561
Unavailable
41
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
42
SUPPORT - Call your local BRP dealership
705202456
Unavailable
43
BRACKET - Call your local BRP dealership
707000864
Unavailable
44
Rubber Stopper
708000506
Unavailable
45
Rubber Stopper
708000862
Unavailable
46
Torx Screw M6 X 16
250000223
Unavailable
47
Flange Elastic Nut M6
233261434
Unavailable
