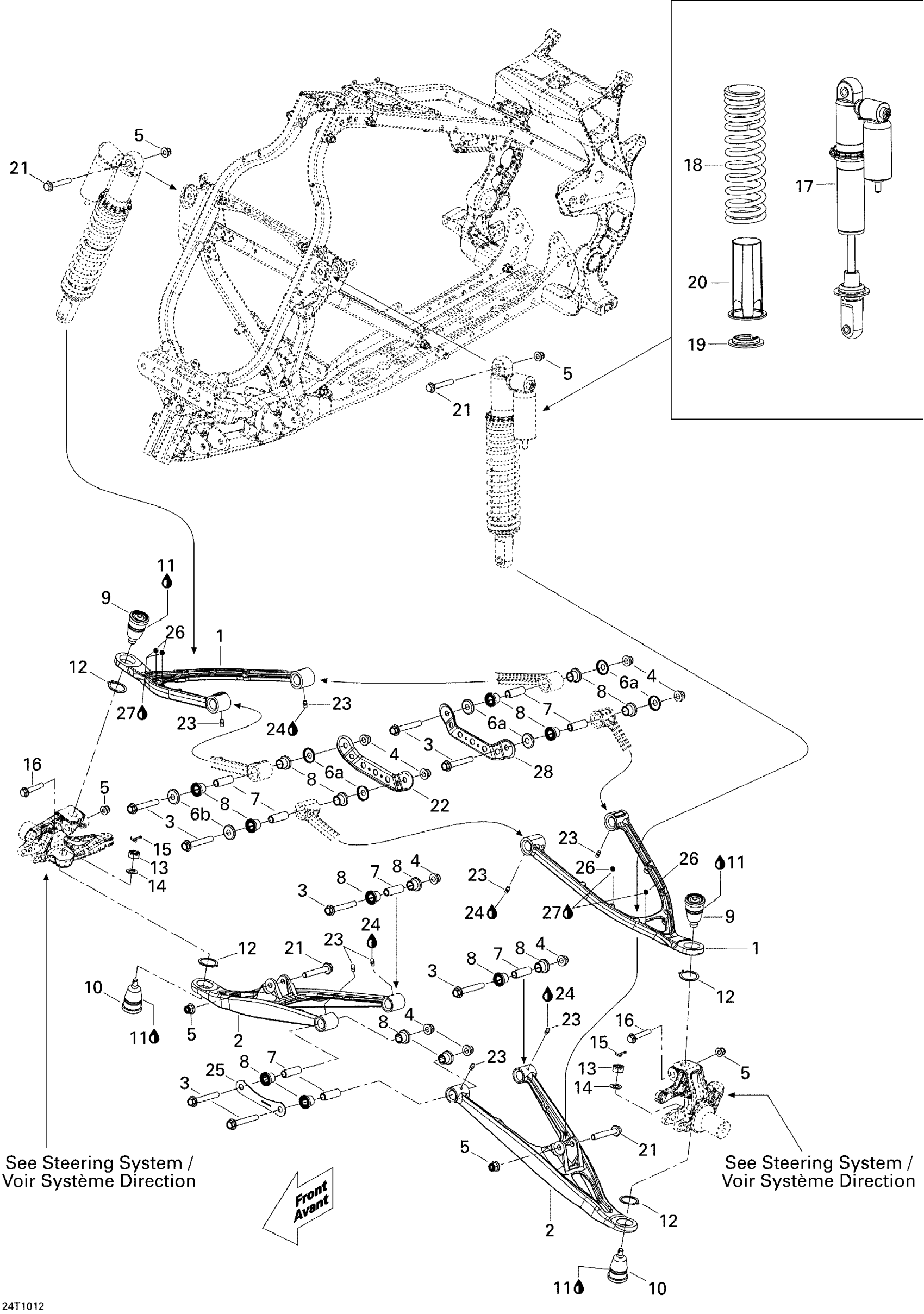

Can-Am DS 450 EFI, 2010 Front Suspension Diagram

#

Description
Price

1

UPPER ARM - Call your local BRP dealership

706200454

Unavailable

2

LOWER ARM - Call your local BRP dealership

706200456

Unavailable

3

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207607036

$3.54

4

Hex. Flange Elastic Nut M10

233201436

$1.74

5

Hex. Flange Elastic Nut M10

233201434

$1.63

6a

WASHER - Call your local BRP dealership

706200479

$10.57

6b

Flat Washer 10 mm, Stainless

234002600

$1.85

7

Sleeve

706201587

$4.60

8

Bushing

706200181

$3.68

9

UPPER BALL JOINT - Call your local BRP dealership

706200462

Unavailable

10

LOWER BALL JOINT - Call your local BRP dealership

706200461

Unavailable

11

Loctite 609, 10 ml

413703100

$24.58

12

Circlip 32 mm

293370009

$1.49

13

CASTLE NUT - Call your local BRP dealership

250100094

$3.54

14

Flat Washer 10 mm

234001410

$0.98

15

Cotter Pin

250400035

$2.06

16

Hex. Flange Screw

207605534

$2.06

17

FRONT SHOCK - Call your local BRP dealership

706200518

$389.99

18

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706200481

$78.43

19

SPRING STOPPER - Call your local BRP dealership

706000528

$11.38

20

ROD PROTECTOR - Call your local BRP dealership

706200645

$9.74

21

HEX. FLANGED SCREW M10 X 65 - Call your local BRP dealership

207606534

Unavailable

22

FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership

706200532

Unavailable

23

Grease Fitting

250000315

$4.82

24

Synthetic Grease, 400 G

293550010

Unavailable

25

Front Suspension Lower Plate

706200722

Unavailable

26

Socket Set Screw M6 X 6

206260699

$3.63

27

Loctite 243, 10 ml

293800060

$20.77

28

FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership

706200532

Unavailable
