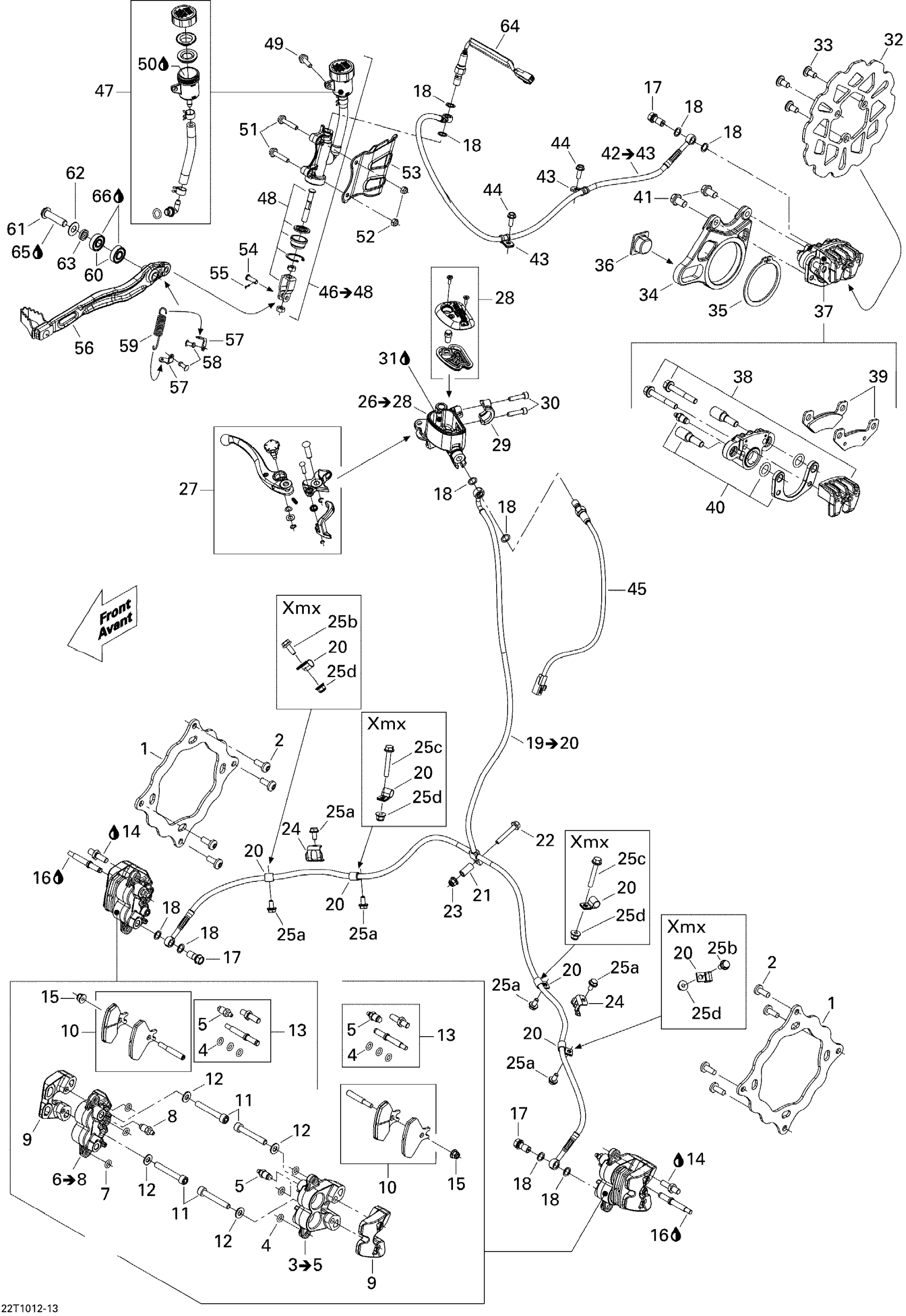

Can-Am DS 450 EFI, 2010 06- Hydraulic Brakes Diagram

#

Description
Price

1

FRONT BRAKE DISC - Call your local BRP dealership

705600400

Unavailable

2

Torx Screw M8 X 20, Scotch Grip

250000740

Unavailable

3

LH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 3 to 5

705600401

Unavailable

4

PIN SLIDE KIT - Call your local BRP dealership

705600425

Unavailable

5

PIN SLIDE KIT - Call your local BRP dealership

705600425

Unavailable

6

RH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 6 to 8

705600404

Unavailable

7

PIN SLIDE KIT - Call your local BRP dealership

705600425

Unavailable

8

PIN SLIDE KIT - Call your local BRP dealership

705600425

Unavailable

9

OUTER CALIPER - Call your local BRP dealership

705600560

Unavailable

10

Front Brake Pad Kit

705600402

Unavailable

11

SOCKET HEAD SCREW M8 X 55 - Call your local BRP dealership

205085534

Unavailable

12

Flat Washer M8

234081430

Unavailable

13

PIN SLIDE KIT - Call your local BRP dealership

705600425

Unavailable

14

Loctite 243, 10 ml

293800060

Unavailable

15

Flange Elastic Nut M6

233261434

Unavailable

16

Loctite 243, 10 ml

293800060

Unavailable

17

Banjo Bolt

705600628

Unavailable

18

Copper Washer

705601628

Unavailable

19

FRONT LEVER BRAKE HOSE ASS'Y - Call your local BRP dealership | Includes 19 to 20

705600408

Unavailable

20

Clamp

293650256

Unavailable

21

SPACER - Call your local BRP dealership

512059812

Unavailable

22

Hex. Flange Screw M6 X 40

207664034

Unavailable

23

Flange Elastic Nut M6

233261434

Unavailable

24

Hose Holder

705600553

Unavailable

25a

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

Unavailable

25b

Not Available As Spare Parts

XXX

Unavailable

25c

Not Available As Spare Parts

XXX

Unavailable

25d

Not Available As Spare Parts

XXX

Unavailable

26

CYLINDER MASTER ASS'Y - Call your local BRP dealership | Includes 25 to 27

705600409

Unavailable

27

Brake Lever Kit

705600491

Unavailable

28

CAP SET - Call your local BRP dealership

705600493

Unavailable

29

BRACKET KIT - Call your local BRP dealership

705600619

Unavailable

30

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

205062534

Unavailable

31

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

32

REAR DISC BRAKE - Call your local BRP dealership

705600410

Unavailable

33

SHOULDER SCREW M8 - Call your local BRP dealership

250000330

Unavailable

34

REAR CALIPER SUPPORT - Call your local BRP dealership

705600411

Unavailable

35

SNAP RING - Call your local BRP dealership

293370045

Unavailable

36

GUIDE REAR CALIPER - Call your local BRP dealership

705600412

Unavailable

37

Rear Caliper Ass'y

705600713

Unavailable

38

ANVIL KIT - Call your local BRP dealership

705600490

Unavailable

39

Brake Pad Kit

705600711

Unavailable

40

BRACKET KIT - Call your local BRP dealership

705600714

Unavailable

41

HEX. FLANGED SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

250000313

Unavailable

42

BRAKE LINE - Call your local BRP dealership | Includes 42 to 43

705600947

Unavailable

43

Clamp

293650256

Unavailable

44

Hex. Flange Screw M6 X 16

210261650

Unavailable

45

Switch

710003837

Unavailable

46

Rear Master Cylinder | Includes 46 to 48

705600738

Unavailable

47

SET TANK ASS'Y - Call your local BRP dealership

705600740

Unavailable

48

ROD SET - Call your local BRP dealership

705600498

Unavailable

49

Hex. Flange Screw M6 X 20

207662034

Unavailable

50

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

51

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

Unavailable

52

Elastic Stop Nut M6

232561434

Unavailable

53

Hose Protector

705600538

Unavailable

54

Clevis Pin

250400031

Unavailable

55

Cotter Pin

250400032

Unavailable

56

BRAKE PEDAL - Call your local BRP dealership

705600534

Unavailable

57

FIXATION PLATE - Call your local BRP dealership

705600631

Unavailable

58

Pop Rivet 3/16”

390407200

Unavailable

59

BRAKE PEDAL SPRING - Call your local BRP dealership

705600635

Unavailable

60

Bearing

705600458

Unavailable

61

SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership

205404036

Unavailable

62

Washer

506152194

Unavailable

63

Bushing

293900087

Unavailable

64

BRAKE SWITCH - Call your local BRP dealership

710003838

Unavailable

65

Loctite 243, 10 ml

293800060

Unavailable

66

Loctite 609, 10 ml

413703100

Unavailable
