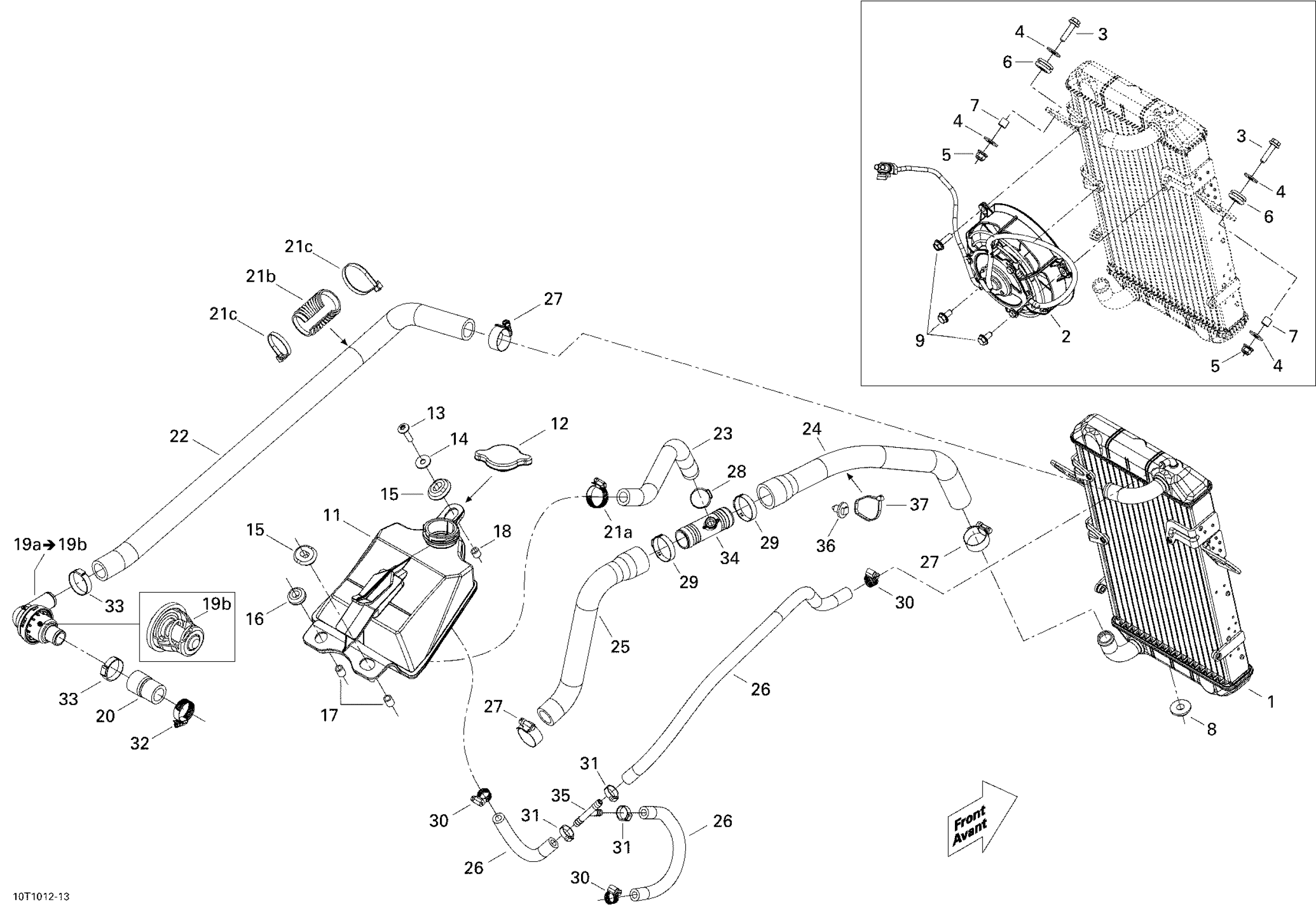

Can-Am DS 450 EFI, 2010 Cooling System Diagram

#

Description
Price

1

RADIATOR - Call your local BRP dealership

709200152

$329.97

2

Fan

709200573

$241.51

3

Hex. Flange Screw M6 X 25

207662534

$1.74

4

FLAT WASHER - Call your local BRP dealership

250200099

$2.02

5

Flange Elastic Nut M6

233261434

$3.61

6

Grommet

709000582

$4.38

7

Bushing

293900105

$6.26

8

Grommet

705003932

$2.75

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

$2.06

11

Tank

709200164

$50.74

12

Radiator Pressure Cap

709200207

$18.82

13

Hex. Flange Screw M6 X 25

207562544

$1.39

14

Flat Washer

250200082

$0.35

15

Oval Washer

705005156

$4.85

16

Grommet

709000582

$4.38

17

Bushing

293900019

$7.37

18

Bushing

293900105

$6.26

19a

THERMOSTAT ASS'Y - Call your local BRP dealership

709200172

Unavailable

19b

Thermostat | Includes 53 to 54

420222495

$36.89

20

HOSE - Call your local BRP dealership

709200200

Unavailable

21a

Tridon Gear Clamp

293650173

$2.46

21b

Tubing 25 MM 1000MM Long

219704402

$12.69

21c

Tie-Rap 180 mm

414115200

$0.09

22

RADIATOR IN HOSE - Call your local BRP dealership

709200236

$22.28

23

Was 276000001 Hose 12.5 mm

219704394

$42.87

24

RADIATOR OUT HOSE - Call your local BRP dealership

709200237

Unavailable

25

HOSE PUMP - Call your local BRP dealership

709200238

$17.66

26

Was 509000407 Hose 8 mm

219704420

$40.27

27

Tridon Gear Clamp

293650051

$3.61

28

Oetiker Clamp

293650012

$4.94

29

Oetiker Gear Clamp 36.1MM

509000045

$3.55

30

Norma Clamp

293650084

$4.00

31

Oetiker Clamp

293650125

$2.69

32

Tridon Gear Clamp

293650173

$2.46

33

Crimp Clamp

293650099

$4.60

34

Y-FITTING - Call your local BRP dealership

509000390

$9.74

35

T-Fitting | Europe

293710024

$12.82

36

Mount Dart

293730040

$0.86

37

Tie-Rap 180 mm

414115200

$0.09
