- DS 450 EFI, 2009
10- Electrical System Europe

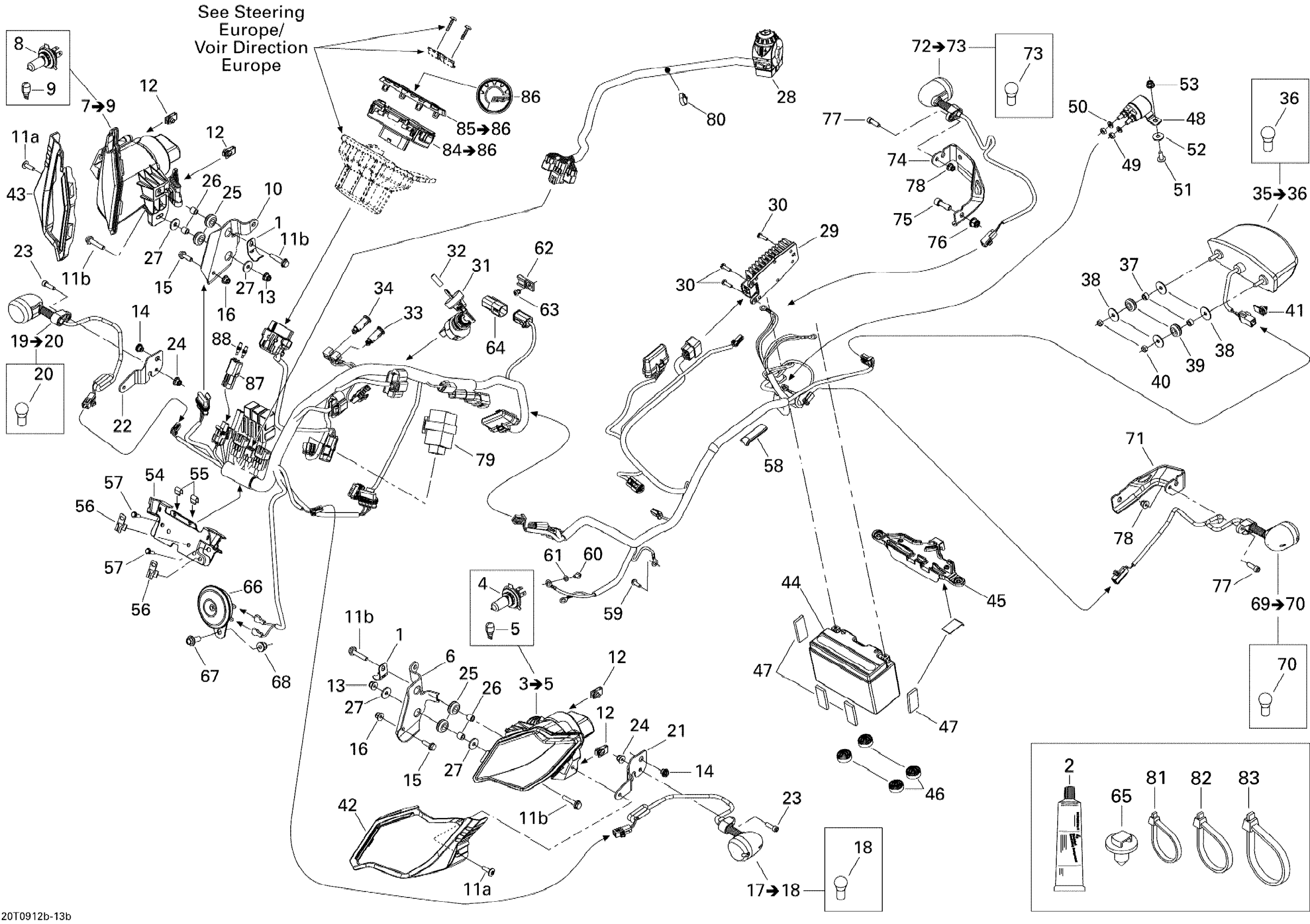

Can-Am DS 450 EFI, 2009 10- Electrical System Europe Diagram
#
1
HARNESS SUPPORT - Call your local BRP dealership
710001499
Unavailable
2
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
3
LH FRONT LIGHT - Call your local BRP dealership | STD, Includes 3 to 5
710001626
Unavailable
4
Bulb, 12V 35/35W
710000871
Unavailable
5
BULB, 12V W5W - Call your local BRP dealership
715900060
Unavailable
6
LH FRONT SUPPORT - Call your local BRP dealership
710001763
Unavailable
7
RH FRONT LIGHT - Call your local BRP dealership | STD, Includes 7 to 9
710001627
Unavailable
8
Bulb, 12V 35/35W
710000871
Unavailable
9
BULB, 12V W5W - Call your local BRP dealership
715900060
Unavailable
10
RH FRONT SUPPORT - Call your local BRP dealership
710001764
Unavailable
11a
Torx Screw M6 X 20
250000722
Unavailable
11b
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
12
Panel Nut M6 X 1.0
250100198
Unavailable
13
Flange Elastic Nut M6
233261434
Unavailable
14
Threaded Insert M6 X 1.0
250100242
Unavailable
15
Hex. Flange Screw M6 X 20
207662034
Unavailable
16
Flange Elastic Nut M6
233261434
Unavailable
17
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26
710001079
Unavailable
18
Bulb
415129258
Unavailable
19
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35
710001080
Unavailable
20
Bulb
415129258
Unavailable
21
LH SUPPORT - Call your local BRP dealership
710001302
Unavailable
22
RH SUPPORT - Call your local BRP dealership
710001303
Unavailable
23
Socket Head Screw M6 X 20
205062034
Unavailable
24
Flange Elastic Nut M6
233261434
Unavailable
25
Grommet
709000582
Unavailable
26
Bushing
293900105
Unavailable
27
Flat Washer
224061201
Unavailable
28
MULTI FUNCTION SWITCH - Call your local BRP dealership
710001306
Unavailable
29
Rectifier
710000803
Unavailable
30
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
31
Ignition Switch With Key
710002323
Unavailable
32
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
33
PILOT LAMP - Call your local BRP dealership
710002526
Unavailable
34
PILOT LAMP, NEUTRAL - Call your local BRP dealership
710001012
Unavailable
35
Tail Light Ass'y | Europe Models, Includes 53 To 54
710000760
Unavailable
36
Bulb
520000758
Unavailable
37
SPACER - Call your local BRP dealership
293900089
Unavailable
38
FLAT WASHER - Call your local BRP dealership
250200099
Unavailable
39
Grommet
709000582
Unavailable
40
Elastic Stop Nut M6
232561434
Unavailable
41
HOUSING SUPPORT - Call your local BRP dealership
515175944
Unavailable
42
PROTECTOR - Call your local BRP dealership
710001310
Unavailable
43
PROTECTOR - Call your local BRP dealership
710001311
Unavailable
44
Battery 6,5A
715500305
Unavailable
45
BATTERY SUPPORT - Call your local BRP dealership
710000963
Unavailable
46
Rubber Stopper
708000506
Unavailable
47
RUBBER PAD - Call your local BRP dealership
293830129
Unavailable
48
Starter Relay
710007777
Unavailable
49
Hex. Nut M6
232061600
Unavailable
50
Lock Washer Helical M6
234161601
Unavailable
51
Torx Screw M6 X 16
250000223
Unavailable
52
Flat Washer
250200097
Unavailable
53
Flange Elastic Nut M6
233261434
Unavailable
54
Housing Support
710001074
Unavailable
55
Clip
414479100
Unavailable
56
Housing Support
515175283
Unavailable
57
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
58
Neoprene Seal (1PAC=3M)
219704364
Unavailable
59
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
60
SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership
207551034
Unavailable
61
Flat Washer
234051430
Unavailable
62
Clip
270000141
Unavailable
63
Avex Rivet
390909200
Unavailable
64
Diagnostic Connector
278002704
Unavailable
65
Mount Dart
293730040
Unavailable
66
Horn
710004791
Unavailable
67
Hex. Flange Screw
207682034
Unavailable
68
Hex. Flange Elastic Nut M8
233281434
Unavailable
69
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35
710001080
Unavailable
70
Bulb
415129258
Unavailable
71
LH FLASHING LIGHT SUPPORT - Call your local BRP dealership
710001304
Unavailable
72
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26
710001079
Unavailable
73
Bulb
415129258
Unavailable
74
RH FLASHING LIGHT SUPPORT - Call your local BRP dealership
710001305
Unavailable
75
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership
205082534
Unavailable
76
Hex. Flange Elastic Nut M8
233281434
Unavailable
77
Socket Head Screw M6 X 20
205062034
Unavailable
78
Flange Elastic Nut M6
233261434
Unavailable
79
FLASHER UNIT - Call your local BRP dealership
710001447
Unavailable
80
Clamp
293650082
Unavailable
81
Tie Wrap 142 mm
293750002
Unavailable
82
Tie-Rap 180 mm
414115200
Unavailable
83
Tie Wrap 368 mm
293750008
Unavailable
84
Calibrated Speedometer | Includes 16 to 17
710003288
Unavailable
85
Trim Ring Ass'y
710001183
Unavailable
86
BRP Logo13 mm
704904615
Unavailable
87
Female Housing, 2 Circuits
278000217
Unavailable
88
Wire Seal
278000216
Unavailable
