- DS 450 EFI, 2009
06- Hydraulic Brakes Europe

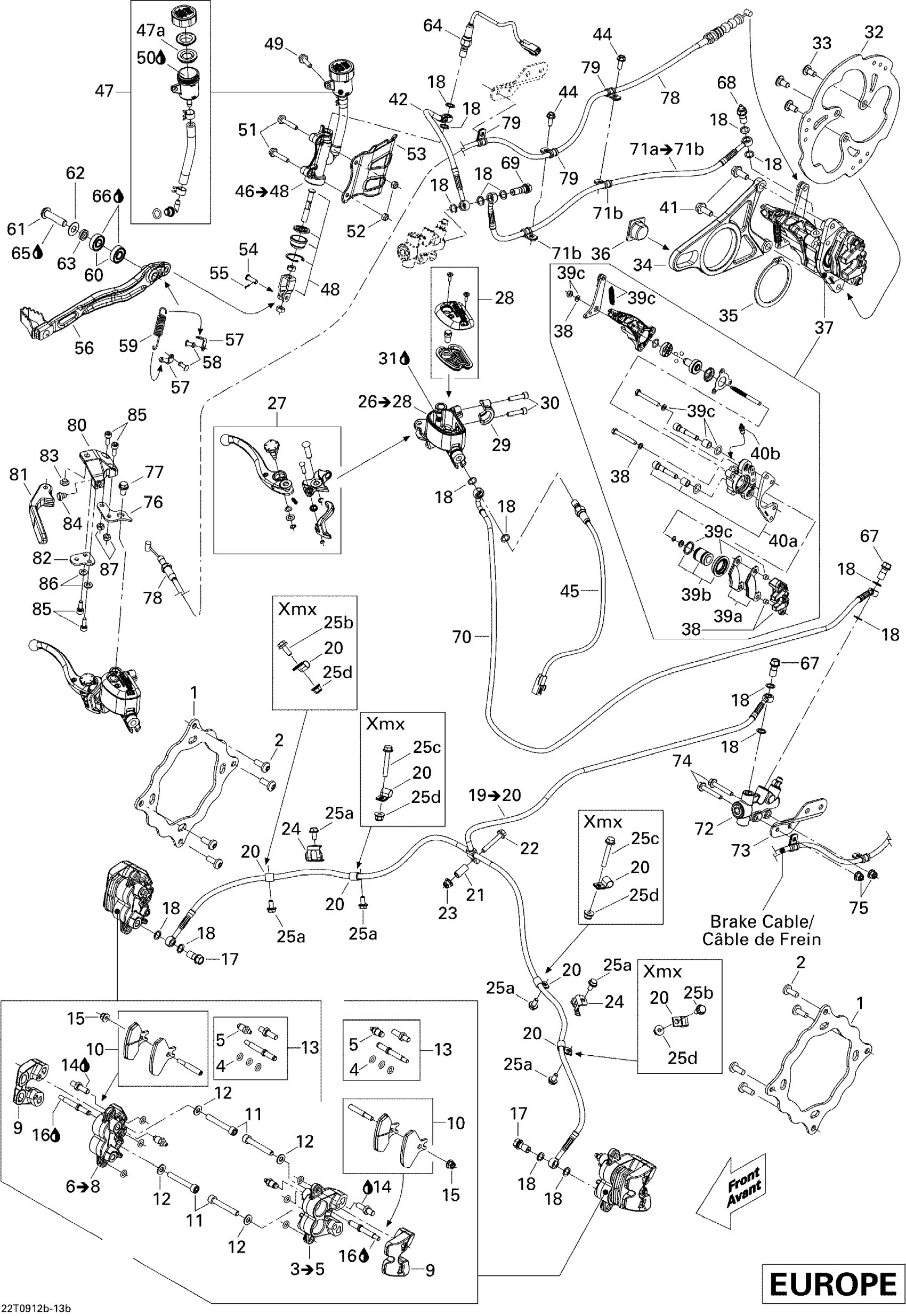

Can-Am DS 450 EFI, 2009 06- Hydraulic Brakes Europe Diagram
#
1
FRONT BRAKE DISC - Call your local BRP dealership
705600400
Unavailable
2
Torx Screw M8 X 20, Scotch Grip
250000740
Unavailable
3
LH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 3 to 5
705600401
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
RH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 6 to 8
705600404
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
OUTER CALIPER - Call your local BRP dealership
705600560
Unavailable
10
Front Brake Pad Kit
705600402
Unavailable
11
SOCKET HEAD SCREW M8 X 55 - Call your local BRP dealership
205085534
Unavailable
12
Flat Washer M8
234081430
Unavailable
13
PIN SLIDE KIT - Call your local BRP dealership
705600425
Unavailable
14
Loctite 243, 10 ml
293800060
Unavailable
15
Flange Elastic Nut M6
233261434
Unavailable
16
Loctite 243, 10 ml
293800060
Unavailable
17
Banjo Bolt
705600628
Unavailable
18
Copper Washer
705601628
Unavailable
19
BRAKE LINE - Call your local BRP dealership | Includes 50 to 51
705601041
Unavailable
20
Clamp
293650256
Unavailable
21
SPACER - Call your local BRP dealership
512059812
Unavailable
22
HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership
207663534
Unavailable
23
Flange Elastic Nut M6
233261434
Unavailable
24
Hose Holder
705600553
Unavailable
25a
Hex. Flange Screw M6 X 12, Scotch Grip
207561234
Unavailable
25b
Not Available As Spare Parts
XXX
Unavailable
25c
Not Available As Spare Parts
XXX
Unavailable
25d
Not Available As Spare Parts
XXX
Unavailable
26
CYLINDER MASTER ASS'Y - Call your local BRP dealership | Includes 25 to 27
705600409
Unavailable
27
Brake Lever Kit
705600491
Unavailable
28
CAP SET - Call your local BRP dealership
705600493
Unavailable
29
BRACKET KIT - Call your local BRP dealership
705600619
Unavailable
30
SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership
205062534
Unavailable
31
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
32
REAR BRAKE DISC - Call your local BRP dealership
705600655
Unavailable
33
SHOULDER SCREW M8 - Call your local BRP dealership
250000330
Unavailable
34
REAR CALIPER SUPPORT - Call your local BRP dealership
705600656
Unavailable
35
SNAP RING - Call your local BRP dealership
293370045
Unavailable
36
GUIDE REAR CALIPER - Call your local BRP dealership
705600412
Unavailable
37
REAR CALIPER ASS'Y - Call your local BRP dealership | Includes 13 to 19
705600657
Unavailable
38
Anvil Kit
705600658
Unavailable
39a
Brake Pad Kit
705600711
Unavailable
39b
PISTONT KIT - Call your local BRP dealership
705600668
Unavailable
39c
HARDWARE KIT - Call your local BRP dealership
705600667
Unavailable
40a
SUPPORT KIT - Call your local BRP dealership
705600685
Unavailable
40b
Bleeder Kit
705600686
Unavailable
41
Hex. Flange Screw M10 X 16 S.GRIP
250001044
Unavailable
42
BRAKE LINE - Call your local BRP dealership
705600986
Unavailable
44
Hex. Flange Screw M6 X 16
210261650
Unavailable
45
Switch
710003837
Unavailable
46
Rear Master Cylinder | Includes 46 to 48
705600738
Unavailable
47
SET TANK ASS'Y - Call your local BRP dealership
705600740
Unavailable
47a
DIAPHRAGM - Call your local BRP dealership
705600762
Unavailable
48
ROD SET - Call your local BRP dealership
705600498
Unavailable
49
Hex. Flange Screw M6 X 20
207662034
Unavailable
50
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
51
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
52
Elastic Stop Nut M6
232561434
Unavailable
53
Hose Protector
705600538
Unavailable
54
Clevis Pin
250400031
Unavailable
55
Cotter Pin
250400032
Unavailable
56
BRAKE PEDAL - Call your local BRP dealership
705600534
Unavailable
57
FIXATION PLATE - Call your local BRP dealership
705600631
Unavailable
58
Pop Rivet 3/16”
390407200
Unavailable
59
BRAKE PEDAL SPRING - Call your local BRP dealership
705600635
Unavailable
60
Bearing
705600458
Unavailable
61
SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership
205404036
Unavailable
62
Washer
506152194
Unavailable
63
Bushing
293900087
Unavailable
64
BRAKE SWITCH - Call your local BRP dealership
710003838
Unavailable
65
Loctite 243, 10 ml
293800060
Unavailable
66
Loctite 609, 10 ml
413703100
Unavailable
67
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
68
SCREW BLEEDER - Call your local BRP dealership
705600680
Unavailable
69
Banjo Bolt
705600958
Unavailable
70
FRONT LEVER BRAKE HOSE ASS'Y - Call your local BRP dealership
705600615
Unavailable
71a
BRAKE LINE - Call your local BRP dealership | Includes 52 to 53
705600948
Unavailable
71b
Clamp
293650256
Unavailable
72
SPLITTER - Call your local BRP dealership
705600617
Unavailable
73
Splitter Support
705600618
Unavailable
74
Hex. Flange Screw M6 X 45
207664544
Unavailable
75
Flange Elastic Nut M6
233261434
Unavailable
76
LEVER SUPPORT - Call your local BRP dealership
705600660
Unavailable
77
Hex. Flange Screw M10 X 16 S.GRIP
250001044
Unavailable
78
BRAKE CABLE - Call your local BRP dealership
705600661
Unavailable
79
Clamp
293650256
Unavailable
80
CABLE SUPPORT - Call your local BRP dealership
705600662
Unavailable
81
LEVER BRAKE - Call your local BRP dealership
705600663
Unavailable
82
SUPPORT - Call your local BRP dealership
705600664
Unavailable
83
LEVER PIVOT - Call your local BRP dealership
705600665
Unavailable
84
Stopper
705600666
Unavailable
85
Socket Screw M6 X 16
205061660
Unavailable
86
Stainless Flat Washer M6
234061600
Unavailable
87
Elastic Stop Nut M6
232561434
Unavailable
