01- Engine

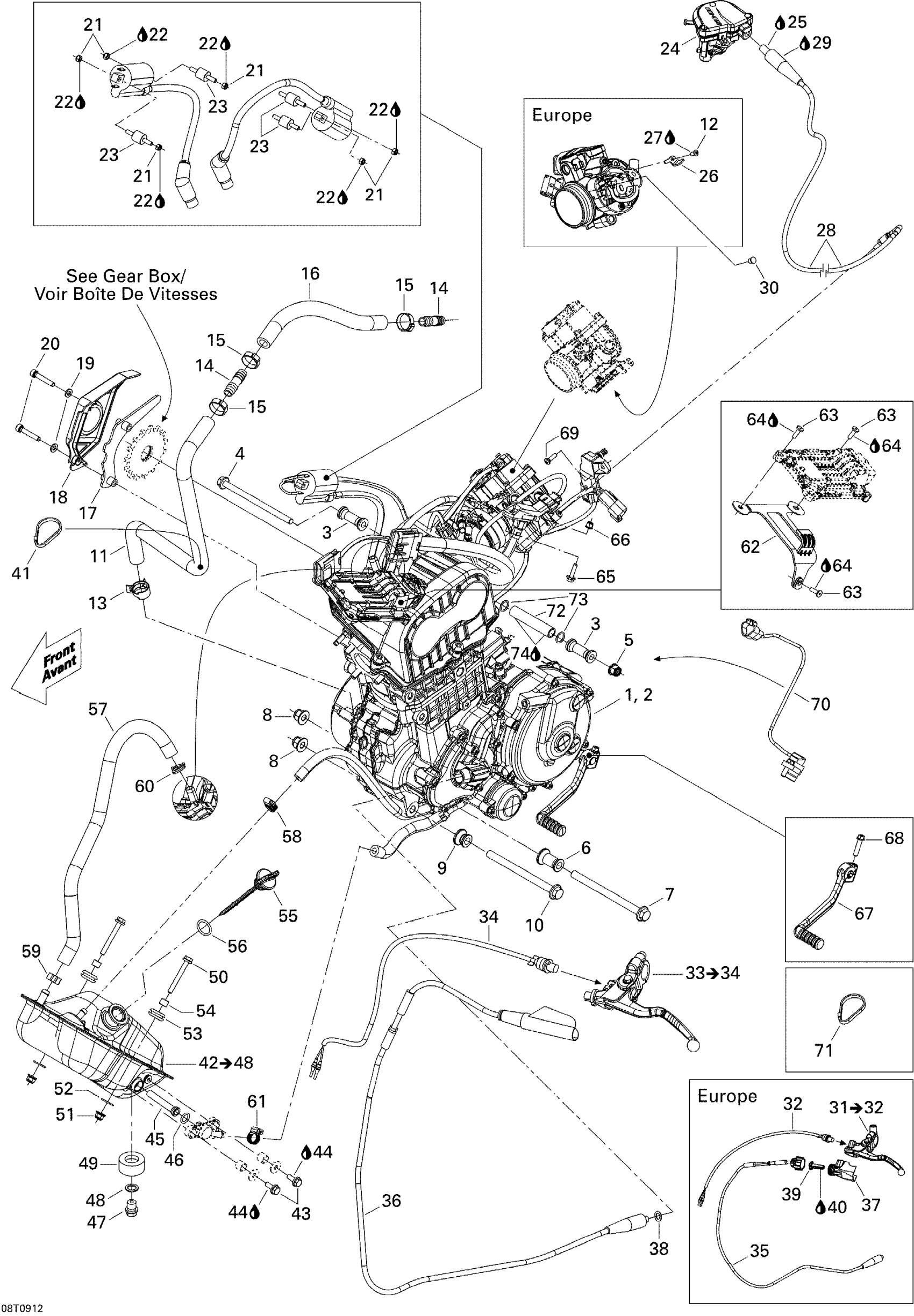

Can-Am DS 450 EFI, 2009 01- Engine Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
LONG BLOCK, 449 EFI ENGINE - Call your local BRP dealership
420044902
Unavailable
3
SPACER - Call your local BRP dealership
293900071
Unavailable
4
Hex. Flange Screw M8 X 130
230683034
Unavailable
5
Hex. Flange Elastic Nut M8
233281434
Unavailable
6
SPACER - Call your local BRP dealership
293900072
Unavailable
7
HEX. FLANGED SCREW M10 X 135 - Call your local BRP dealership
230603536
Unavailable
8
Hex. Flange Elastic Nut M10
233201434
Unavailable
9
SPACER - Call your local BRP dealership
293900074
Unavailable
10
HEX. FLANGED SCREW M10 X 130 - Call your local BRP dealership
230603036
Unavailable
11
Hose
707000502
Unavailable
12
TORX SCREW M4 X 8 - Call your local BRP dealership | Europe
250000332
Unavailable
13
Norma Clamp
293650110
Unavailable
14
CONNECTOR - Call your local BRP dealership
293710119
Unavailable
15
Oetiker Clamp
293650012
Unavailable
16
HOSE 12 MM - Call your local BRP dealership
707000537
Unavailable
17
CHAIN GUARD - Call your local BRP dealership
707000464
Unavailable
17
CHAIN GUARD - Call your local BRP dealership
707000701
Unavailable
18
SPROCKET COVER - Call your local BRP dealership
707000425
Unavailable
19
Flat Washer M6
234061430
Unavailable
20
SOCKET HEAD SCREW M6 X 35, SCOTCH GRIP - Call your local BRP dealership
205563536
Unavailable
21
Elastic Stop Nut M5
232551414
Unavailable
22
Loctite 243, 10 ml
293800060
Unavailable
23
Rubber Mount
707000746
Unavailable
24
THROTTLE HANDLE - Call your local BRP dealership
707000440
Unavailable
25
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
26
Speed Limiter
707000624
Unavailable
27
Loctite 243, 10 ml
293800060
Unavailable
28
THROTTLE CABLE - Call your local BRP dealership
707000439
Unavailable
29
CABLE LUBRICANT, 400 G - Call your local BRP dealership
293600041
Unavailable
30
Cable Guide
707000434
Unavailable
31
HANDLE LEVER ASS'Y - Call your local BRP dealership | Includes 32 to 33, Europe
707000592
Unavailable
32
LEVER SHIFTER SWITCH - Call your local BRP dealership
707000183
Unavailable
33
HANDLE LEVER ASS'Y - Call your local BRP dealership | Includes 30 to 31
707000605
Unavailable
34
LEVER SHIFTER SWITCH - Call your local BRP dealership
707000183
Unavailable
35
Clutch Cable
707000422
Unavailable
36
CLUTCH CABLE - Call your local BRP dealership
707000606
Unavailable
37
BOOT - Call your local BRP dealership
293830122
Unavailable
38
Washer
504082900
Unavailable
39
SCREW - Call your local BRP dealership
707000602
Unavailable
40
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
41
Tie-Rap 180 mm
414115200
Unavailable
42
OIL TANK ASS'Y - Call your local BRP dealership | Includes 40 to 46
707000806
Unavailable
43
Hex. Flange Screw M6 X 20
207662034
Unavailable
44
Loctite 243, 10 ml
293800060
Unavailable
45
STRAINER - Call your local BRP dealership
519000144
Unavailable
46
O-Ring
293300128
Unavailable
47
Plug
250500010
Unavailable
48
Copper Washer
250200061
Unavailable
49
RUBBER STOPPER - Call your local BRP dealership
705001678
Unavailable
50
HEX. FLANGED SCREW M6 X 50 - Call your local BRP dealership
207665034
Unavailable
51
Flange Elastic Nut M6
233261434
Unavailable
52
Flat Washer
250200082
Unavailable
53
Grommet
293720062
Unavailable
54
SPACER - Call your local BRP dealership
293900089
Unavailable
55
Oil Cap
707000526
Unavailable
56
O-Ring
709000089
Unavailable
57
HOSE - Call your local BRP dealership
707000544
Unavailable
58
Tridon Gear Clamp
293650171
Unavailable
59
Oetiker Clamp
293650011
Unavailable
60
ROTOCLIP CLAMP - Call your local BRP dealership
293650180
Unavailable
61
Tridon Gear Clamp
293650171
Unavailable
62
MODULE SUPPORT - Call your local BRP dealership
710000972
Unavailable
63
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership
250000295
Unavailable
64
Loctite 243, 10 ml
293800060
Unavailable
65
HEX. FLANGED SCREW M5 X 20 - Call your local BRP dealership
207652034
Unavailable
66
Flange Elastic Nut M5
233251434
Unavailable
67
Gearshift Pedal
420248540
Unavailable
68
Torx Flange Screw M6 X 25
420440234
Unavailable
69
Torx Screw K50 X 16
250000720
Unavailable
70
Speed Sensor
420265723
Unavailable
71
Tie Wrap 142 mm
293750002
Unavailable
72
SPACER - Call your local BRP dealership
293900093
Unavailable
73
O-Ring
709000089
Unavailable
74
Sealant Loctite 648
219703000
Unavailable
