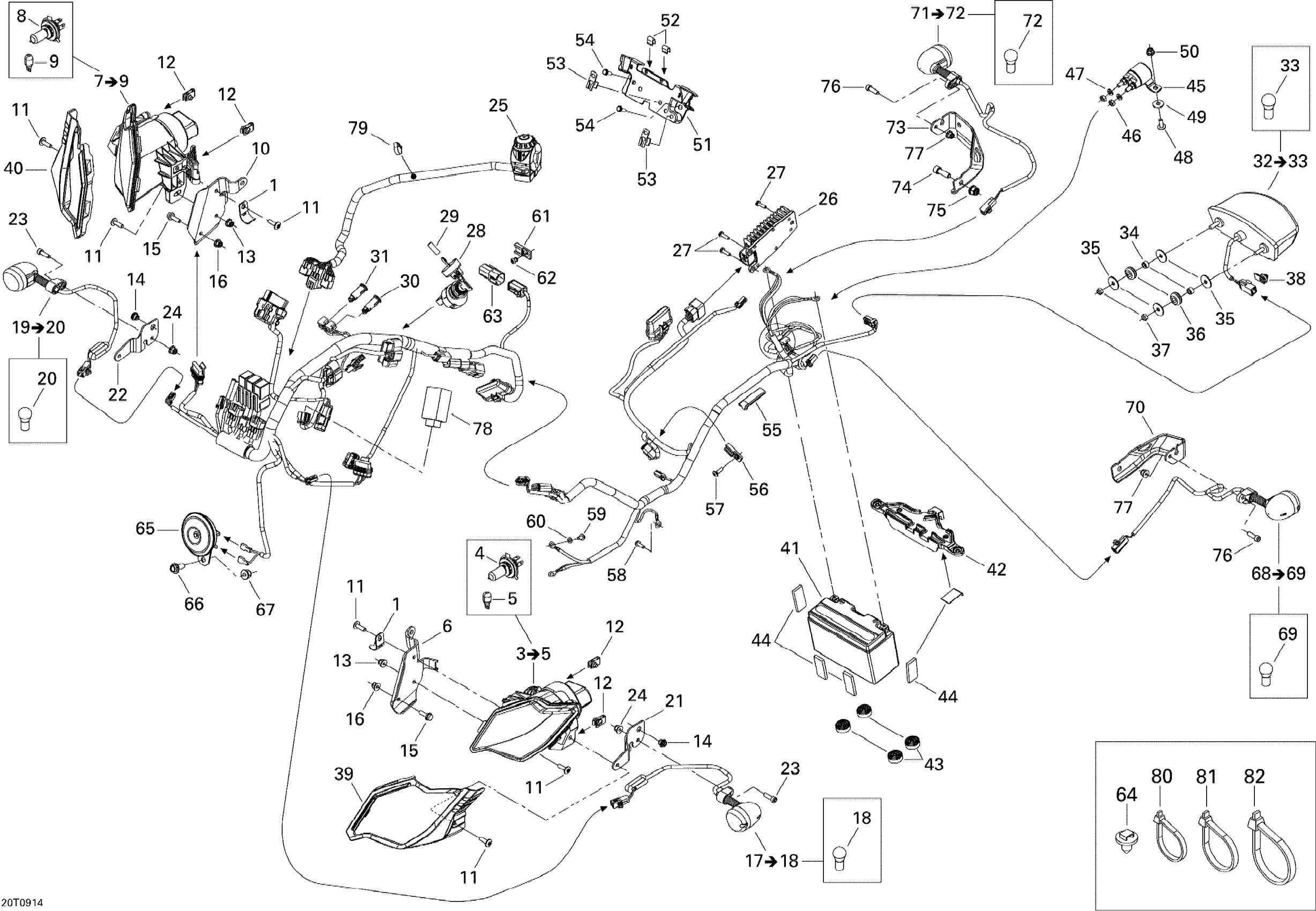

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 Electrical System Diagram

#

Description
Price

1

HARNESS SUPPORT - Call your local BRP dealership

710001499

Unavailable

2

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

3

LH FRONT LIGHT - Call your local BRP dealership | STD, Includes 3 to 5

710001626

Unavailable

3

LH FRONT LIGHT - Call your local BRP dealership | STD, Includes 3 to 5

710001626

Unavailable

4

Bulb, 12V 35/35W

710000871

$32.28

5

BULB, 12V W5W - Call your local BRP dealership

715900060

Unavailable

6

LH Front Support

710001308

Unavailable

7

RH FRONT LIGHT - Call your local BRP dealership | STD, Includes 7 to 9

710001627

Unavailable

7

RH FRONT LIGHT - Call your local BRP dealership | STD, Includes 7 to 9

710001627

Unavailable

8

Bulb, 12V 35/35W

710000871

$32.28

9

BULB, 12V W5W - Call your local BRP dealership

715900060

Unavailable

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

11

Torx Screw M6 X 20

250000722

$1.34

12

Panel Nut M6 X 1.0

250100198

$1.73

13

Flange Elastic Nut M6

233261434

$3.61

14

Threaded Insert M6 X 1.0

250100242

Unavailable

15

Hex. Flange Screw M6 X 20

207662034

$1.74

16

Flange Elastic Nut M6

233261434

$3.61

17

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

18

Bulb

415129258

Unavailable

19

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

20

Bulb

415129258

Unavailable

21

LH SUPPORT - Call your local BRP dealership

710001302

Unavailable

22

RH SUPPORT - Call your local BRP dealership

710001303

Unavailable

23

Socket Head Screw M6 X 20

205062034

Unavailable

24

Flange Elastic Nut M6

233261434

$3.61

25

MULTI FUNCTION SWITCH - Call your local BRP dealership

710001306

Unavailable

26

Rectifier

710000803

$78.43

27

Hex. Flange Screw, Scotch Grip

207551634

$1.66

28

Ignition Switch With Key

710002323

$70.17

29

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

30

PILOT LAMP - Call your local BRP dealership

710002526

Unavailable

31

PILOT LAMP, NEUTRAL - Call your local BRP dealership

710001012

Unavailable

32

Tail Light Ass'y | Europe Models, Includes 53 To 54

710000760

$55.35

33

Bulb

520000758

$7.49

34

SPACER - Call your local BRP dealership

293900089

Unavailable

35

FLAT WASHER - Call your local BRP dealership

250200099

Unavailable

36

Grommet

709000582

$4.38

37

Elastic Stop Nut M6

232561434

$1.55

38

HOUSING SUPPORT - Call your local BRP dealership

515175944

Unavailable

39

PROTECTOR - Call your local BRP dealership

710001310

Unavailable

40

PROTECTOR - Call your local BRP dealership

710001311

Unavailable

41

Battery 6,5A

715500305

$101.37

42

BATTERY SUPPORT - Call your local BRP dealership

710000963

Unavailable

43

Rubber Stopper

708000506

$6.15

44

RUBBER PAD - Call your local BRP dealership

293830129

Unavailable

45

Starter Relay

710007777

$46.89

46

Hex. Nut M6

232061600

$0.91

47

Lock Washer Helical M6

234161601

$0.92

48

Torx Screw M6 X 16

250000223

$1.74

49

Flat Washer

250200097

$1.74

50

Flange Elastic Nut M6

233261434

$3.61

51

Housing Support

710001074

Unavailable

52

Clip

414479100

$1.86

53

Housing Support

515175283

$8.43

54

Hex. Flange Screw, Scotch Grip

207551634

$1.66

55

Neoprene Seal (1PAC=3M)

219704364

$22.72

56

Clip

515175821

$9.55

57

Torx Screw K50 X 16

250000720

$1.39

58

Hex. Flange Screw, Scotch Grip

207551634

$1.66

59

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207551034

Unavailable

60

Flat Washer

234051430

$2.26

61

Clip

270000141

$8.33

62

Avex Rivet

390909200

$0.29

63

Diagnostic Connector

278002704

$15.57

64

Mount Dart

293730040

$0.86

65

Horn

710004791

$37.66

66

Hex. Flange Screw

207682034

$2.06

67

Hex. Flange Elastic Nut M8

233281434

$1.74

68

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

69

Bulb

415129258

Unavailable

70

LH FLASHING LIGHT SUPPORT - Call your local BRP dealership

710001304

Unavailable

71

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

72

Bulb

415129258

Unavailable

73

RH FLASHING LIGHT SUPPORT - Call your local BRP dealership

710001305

Unavailable

74

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205082534

Unavailable

75

Hex. Flange Elastic Nut M8

233281434

$1.74

76

Socket Head Screw M6 X 20

205062034

Unavailable

77

Flange Elastic Nut M6

233261434

$3.61

78

FLASHER UNIT - Call your local BRP dealership

710001447

Unavailable

79

Clamp

293650082

$3.33

80

Tie Wrap 142 mm

293750002

$0.88

81

Tie-Rap 180 mm

414115200

$0.09

82

Tie Wrap 368 mm

293750008

$0.85
