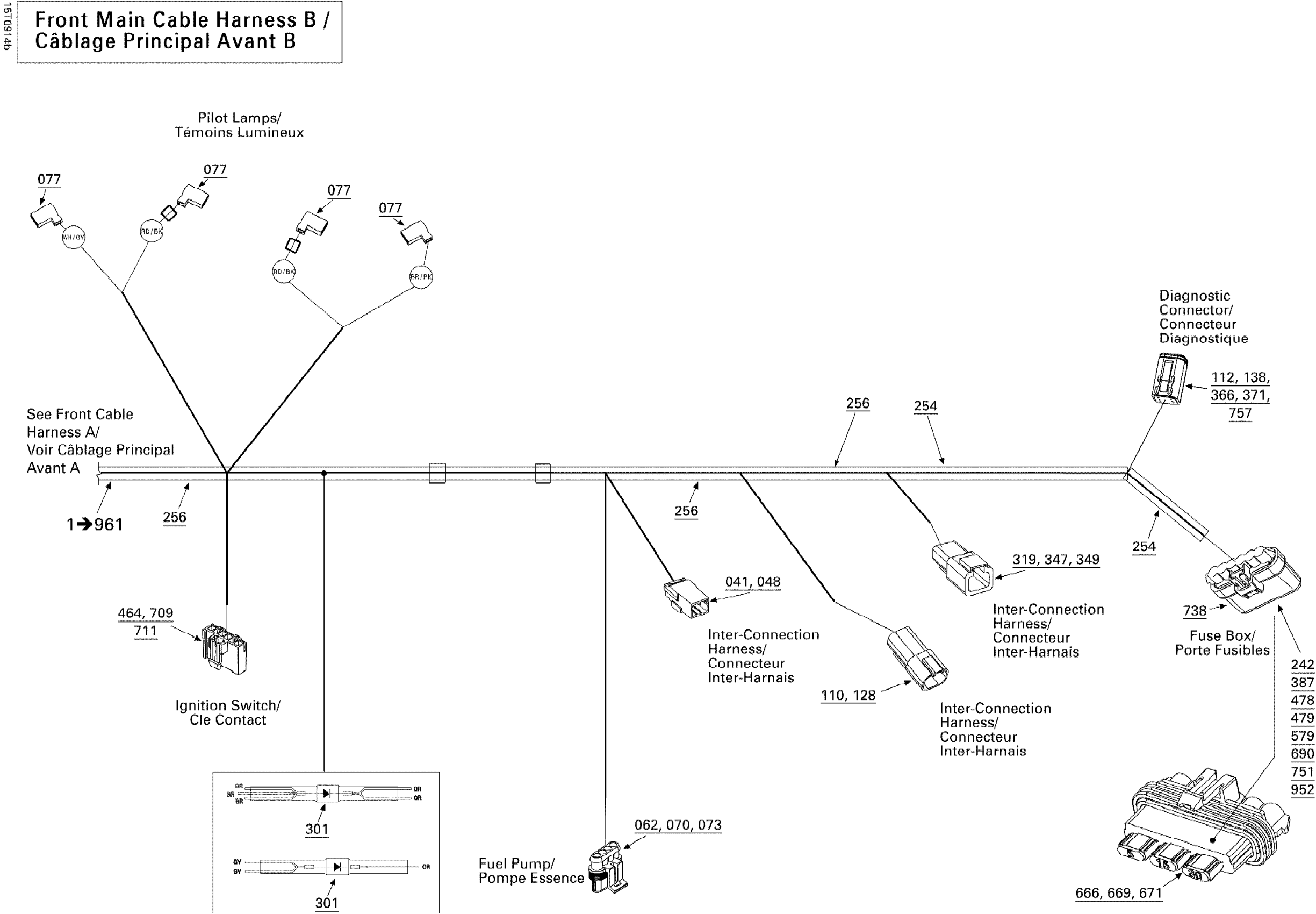

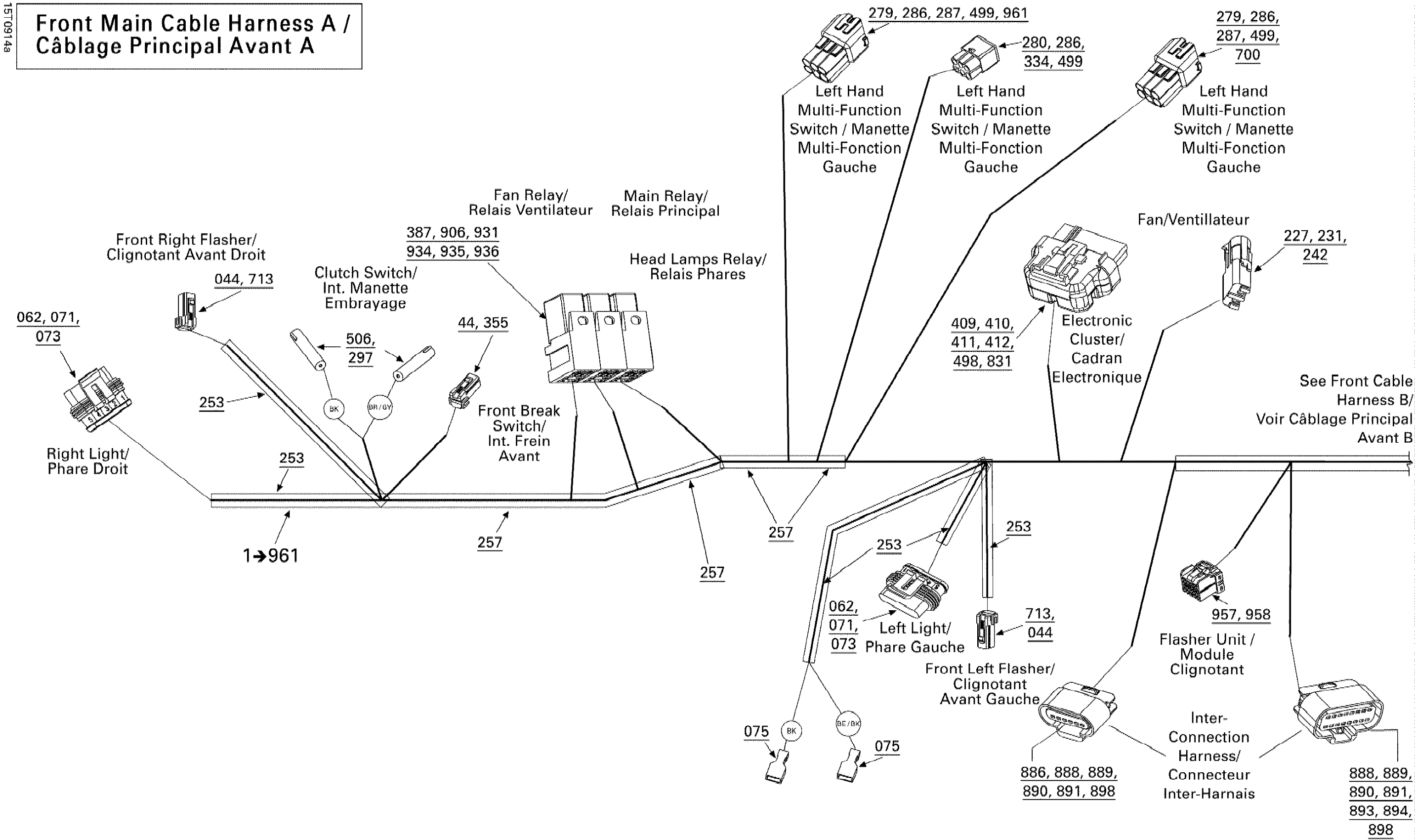

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 Electrical Harness, Front Section Diagram

#

Description
Price

1

FRONT MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 961

710001296

Unavailable

41

Male Terminal

515175232

$1.49

44

Female Terminal

515175231

$4.12

48

Male Housing, 3 Circuits

515175494

$15.35

62

Female Terminal

278001014

$2.72

70

Female Housing, 4 Circuits

409209700

$12.97

71

Connector

710000780

$18.43

73

Wire Seal

278001013

$2.72

75

Female Terminal

409010700

$5.08

77

Female Terminal

409010300

$4.12

110

Male Terminal

278000631

$4.12

112

Male Terminal

278000631

$4.12

128

Female Wedge, 4 Circuits

278000636

$4.12

138

Sealing Cap

293000052

$2.55

227

Male Terminal

409004300

$5.46

231

Female Housing, 2 Circuits

278000217

$7.59

242

Wire Seal

278000218

$3.48

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

257

Was 409901600 Tubing 19mm

219704398

$89.97

279

Male Terminal

409011300

$5.78

280

Female Terminal

409012100

$3.73

286

Seal

409012300

$4.38

287

Cap

710000080

$6.48

297

Insulated Sheath

278001007

$3.22

301

Diode

409012700

$10.83

319

Male Terminal

515175568

$7.48

334

Female Housing, 6 Circuits

710000081

$8.29

347

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

349

Male Lock, 2 Circuits

278001672

$3.02

355

Female Housing, 2 Circuits

515175658

$15.35

366

Male Housing, 6 Circuits

515175673

$13.05

371

Male Wedge, 6 Circuits

515175678

$5.11

387

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

409

Plug

515175812

$1.70

410

Female Housing, 24 Circuits

515175801

$9.00

411

Retainer Block

515175802

$10.66

412

Wire Seal

515175803

$2.41

464

Female Terminal

710000274

$8.98

478

Housing, 6 Circuits

710000888

$16.89

479

Lock

710000889

$4.60

498

Female Housing

710000399

$14.02

499

Wire Seal

710000402

$4.42

506

Female Terminal

710000421

$5.46

579

Wire Seal

710000504

$4.60

666

Little Fuse, 5 Amperes

710000742

$7.24

669

Little Fuse, 15 Ampere

710000745

$6.77

671

Little Fuse, 30 Amperes

710000747

$6.77

690

Female Terminal

710000890

$3.73

700

Female Terminal

710000890

$3.73

709

Lock

710000848

$3.98

711

Male Housing, 6 Circuits

710000849

$7.55

713

Female Terminal Housing, 2 Circuits

515176296

$5.11

738

Cover

710000897

$12.62

751

Female Terminal

710000918

$5.10

757

Female Terminal

278001665

$3.73

831

Female Terminal

710001131

$7.00

886

Housing

710001232

$13.80

888

Seal

710001230

$2.75

889

Seal

710001233

$2.55

890

Terminal

710001229

$3.02

891

Terminal

710001228

$2.72

893

Housing

710001226

$11.83

894

Cap

710001225

$7.27

898

LOCK - Call your local BRP dealership

710001221

$8.68

906

TERMINAL - Call your local BRP dealership

710001234

Unavailable

931

TERMINAL - Call your local BRP dealership

710001369

Unavailable

934

TERMINAL - Call your local BRP dealership

710001356

Unavailable

935

HOUSING - Call your local BRP dealership

710001355

Unavailable

936

Relay

715900135

$16.89

952

Clip

293650187

$4.88

957

HOUSING - Call your local BRP dealership

710001435

Unavailable

958

TERMINAL - Call your local BRP dealership

710001436

Unavailable

961

Male Housing Terminal, 6 Circuits

710001446

$4.60
