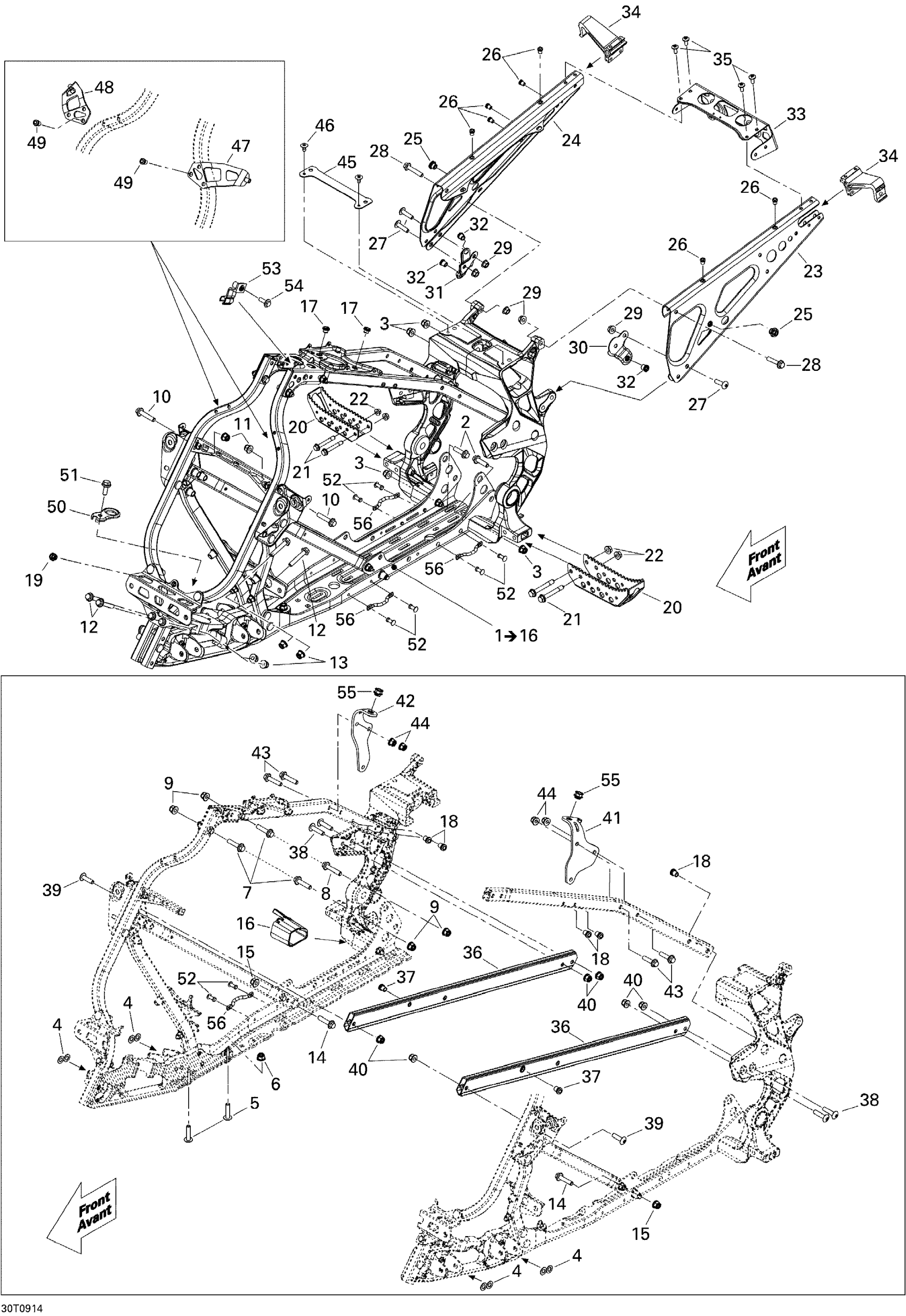

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 09- Frame Diagram
#
1
Frame Ass'y
705201043
Unavailable
2
Hex. Flange Screw M8 X 30
207683034
Unavailable
3
Hex. Flange Elastic Nut M8
233281434
Unavailable
4
Washer
506151252
Unavailable
5
TORX TRUSS SCREW M8 X 35 - Call your local BRP dealership
250000316
Unavailable
6
Hex. Flange Elastic Nut M8
233281434
Unavailable
7
Hex. Flange Screw M8 X 35
207683534
Unavailable
8
Hex. Flange Screw M8 X 40
207684034
Unavailable
9
Hex. Flange Elastic Nut M8
233281434
Unavailable
10
Hex. Flange Screw M8 X 40
207684034
Unavailable
11
Hex. Flange Elastic Nut M8
233281434
Unavailable
12
HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership
207684534
Unavailable
13
Hex. Flange Elastic Nut M8
233281434
Unavailable
14
Hex. Flange Screw M8 X 35
207683534
Unavailable
15
Hex. Flange Elastic Nut M8
233281434
Unavailable
16
GUARD - Call your local BRP dealership
705500931
Unavailable
17
Threaded Insert M6 X 1.0
250100242
Unavailable
18
Insert M5 X 0.8
293450268
Unavailable
19
Insert
293450275
Unavailable
20
FOOTREST - Call your local BRP dealership
705201044
Unavailable
21
HEX. FLANGED SCREW M8 X 60, SCOTCH GRIP - Call your local BRP dealership
207586034
Unavailable
22
Hex. Flange Nut M8
233181434
Unavailable
23
EXTENTION - Call your local BRP dealership
705202547
Unavailable
24
EXTENTION - Call your local BRP dealership
705202548
Unavailable
25
Threaded Insert M6 X 1.0
250100242
Unavailable
26
Insert M5 X 0.8
293450268
Unavailable
27
Hex Torx Truss M8 X30
250000745
Unavailable
28
Hex. Flange Screw M8 X 40
207684034
Unavailable
29
Hex. Flange Nut M8
233181434
Unavailable
30
LH Bracket
707600399
Unavailable
31
RH Bracket
705201485
Unavailable
32
Insert
293450275
Unavailable
33
PLATE SUPPORT - Call your local BRP dealership
705201898
Unavailable
34
REAR FENDER SUPPORT - Call your local BRP dealership
705002094
Unavailable
35
Torx Screw M6 X 16
250000223
Unavailable
36
Side Member
705201950
Unavailable
37
Insert
293450275
Unavailable
38
Torx Truss Screw M8 X 35
250000256
Unavailable
39
Hex Torx Truss M8 X30
250000745
Unavailable
40
Hex. Flange Elastic Nut M8
233281434
Unavailable
41
LH ENGINE SUPPORT - Call your local BRP dealership
705201380
Unavailable
42
RH ENGINE SUPPORT - Call your local BRP dealership
705201381
Unavailable
43
Hex. Flange Screw M8 X 35
207683534
Unavailable
44
Hex. Flange Elastic Nut M8
233281434
Unavailable
45
REAR BRACE - Call your local BRP dealership
705201406
Unavailable
46
Pop Rivet 3/16"
293150008
Unavailable
47
LH BODY ATTACHMENT PLATE - Call your local BRP dealership
705201461
Unavailable
48
RH BODY ATTACHMENT PLATE - Call your local BRP dealership
705201462
Unavailable
49
Insert M5 X 0.8
293450268
Unavailable
50
RADIATOR GUIDE - Call your local BRP dealership
705201550
Unavailable
51
Hex. Flange Screw M6 X 16, Scotch Grip
207561634
Unavailable
52
Pop Rivet 3/16”
390407200
Unavailable
53
Cable Support
707000561
Unavailable
54
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
55
Insert
293450278
Unavailable
56
Not Available As Spare Parts
XXX
Unavailable
