Partiron

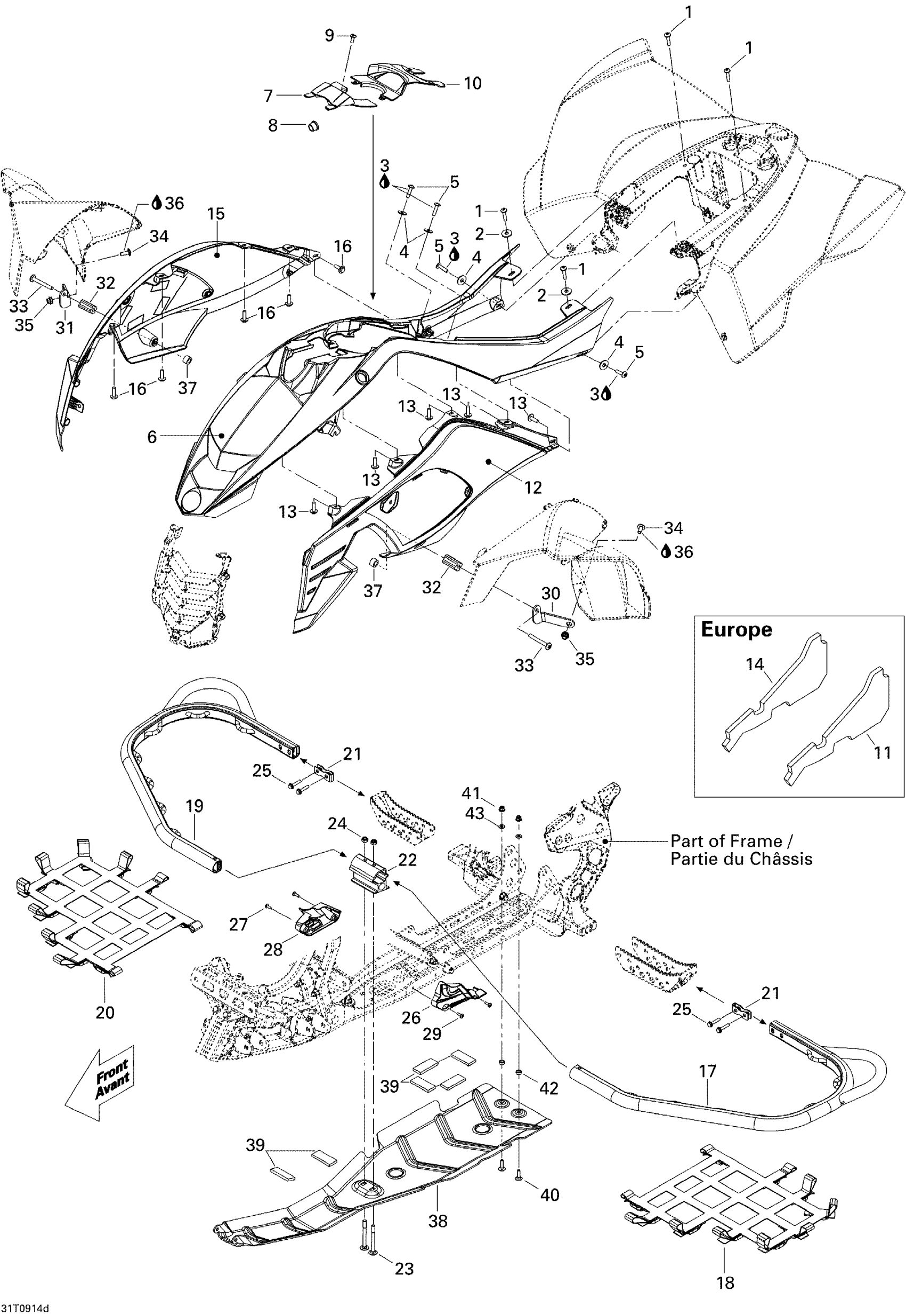

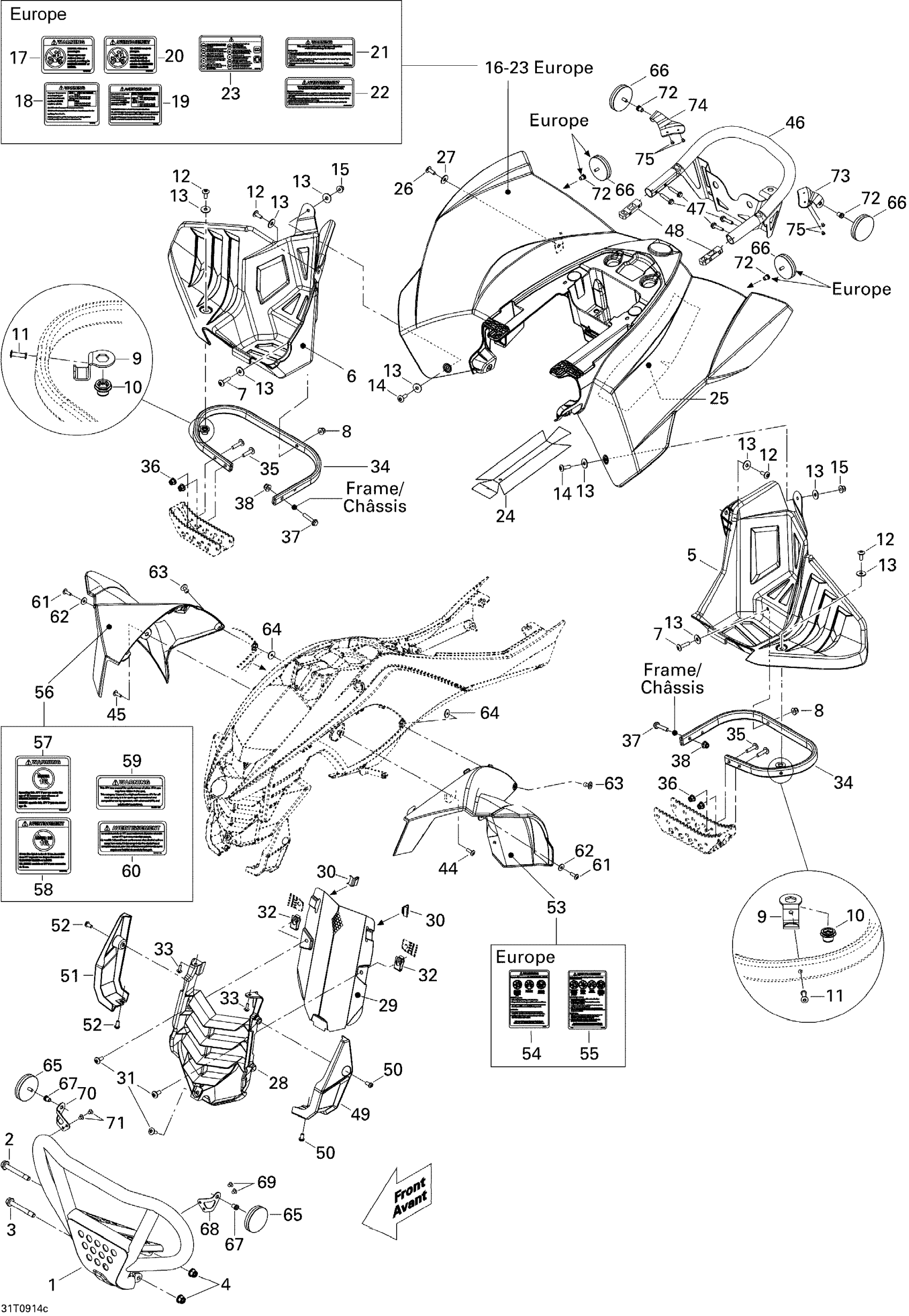

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 Body And Accessories, Front View X Diagram

#

Description
Price

1

FRONT BUMPER - Call your local BRP dealership

705002767

Unavailable

2

Hex Flange Screw M8 X 65, SCOTCH GRIP - Call your local BRP dealership

250000302

Unavailable

3

Hex. Flange Screw M8 X 75, Scotch Grip

207587534

$4.44

4

Hex. Flange Nut M8

233181434

$2.11

5

LH FOOT PROTECTOR - Call your local BRP dealership

705001745

Unavailable

6

RH FOOT PROTECTOR - Call your local BRP dealership

705001746

Unavailable

7

Torx Screw M6 x 25

250000284

$2.11

8

Elastic Stop Nut M6

232561434

$1.99

9

FOOT PROTECTOR BRACKET - Call your local BRP dealership

705002373

Unavailable

10

Threaded Insert M6 X 1.0

250100242

Unavailable

11

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

12

Torx Screw M6 X 16

250000223

$2.11

13

Flat Washer

250200097

$2.11

14

Torx Screw M6 X 20

250000722

$1.68

15

Elastic Stop Nut M6

232561434

$1.99

16

REAR FENDER KIT, BLACK - Call your local BRP dealership | Includes 15 to 19, Xxc, Xmx Europe

715000582

Unavailable

17

WARNING DECAL, PASSENGER - Call your local BRP dealership

704900005

Unavailable

18

WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership

704901365

Unavailable

19

WARNING DECAL, PUBLIC ROAD USE - Call your local BRP dealership | English Version

704901392

Unavailable

20

International Decal, Multilingual | International

704901394

Unavailable

21

Warning Decal Tire Pressure, French

704901395

Unavailable

22

Warning Decal, Passenger, French | French Version

704900006

Unavailable

23

Warning Label, French | Europe

704901393

Unavailable

24

Reflective Sheet | Europe

705003351

Unavailable

25

Reflective Sheet | Europe

705003357

Unavailable

26

Torx Screw M6 X 16

250000223

$2.11

27

Flat Washer

250200097

$2.11

28

Radiator Protector Ass'y

705004009

$38.99

29

GRILL - Call your local BRP dealership

709200167

Unavailable

30

CLIP - Call your local BRP dealership

517302789

Unavailable

31

Torx Screw M6 X 16

250000223

$2.11

32

Panel Nut M6 X 1.0

250100198

$2.11

33

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

34

FOOT PROTECTOR SUPPORT - Call your local BRP dealership

705002091

Unavailable

35

Hex. Socket Screw M6 X 20

250000770

$2.09

36

Elastic Stop Nut M6

232561434

$1.99

37

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

38

Flange Elastic Nut M6

233261434

$4.44

44

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

45

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

46

REAR BUMPER - Call your local BRP dealership | Europe

705003395

Unavailable

47

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

48

CLAMP - Call your local BRP dealership

705002913

Unavailable

49

LH RADIATOR MOULDING - Call your local BRP dealership

705002514

$19.49

50

SOCKET SCREW M6 X 12 - Call your local BRP dealership

250000339

Unavailable

51

RH RADIATOR MOULDING - Call your local BRP dealership

705002515

Unavailable

52

SOCKET SCREW M6 X 12 - Call your local BRP dealership

250000339

Unavailable

53

KIT FR. FENDER - Call your local BRP dealership | Includes 44 to 46

715002376

Unavailable

54

Warning Decal, Death And Injuries | Europe

704901875

Unavailable

55

Warning Decal, Death And Injuries | French Version

704901441

Unavailable

56

RH FRONT FENDER KIT, BLACK - Call your local BRP dealership | Includes 47 to 51

715000569

Unavailable

57

Warning Decal, Under 16 Years Old

704900011

Unavailable

58

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

59

Warning Decal, Performance, French

704901135

Unavailable

60

WARNING DECAL, PERFORMANCE - Call your local BRP dealership

704901133

Unavailable

61

Pop Rivet 3/16"

293150123

$4.29

62

Washer

503191273

$1.35

63

Torx Screw M6 X 20

250000722

$1.68

64

Flat Washer

250200097

$2.11

65

Amber Reflector | Except Europe Model

705011222

$14.49

66

Red Reflector

705011221

$14.49

67

Insert M5 X 0.8

293450268

$2.09

68

LH REFLECTOR SUPPORT - Call your local BRP dealership

705002655

Unavailable

69

Stavex Rivet

293150144

$0.82

70

RH REFLECTOR SUPPORT - Call your local BRP dealership

705002656

Unavailable

71

Stavex Rivet

293150144

$0.82

72

Insert M5 X 0.8

293450268

$2.09

73

SUPPORT - Call your local BRP dealership

705002907

Unavailable

74

RH SUPPORT - Call your local BRP dealership

705002912

Unavailable

75

Stavex Rivet

293150144

$0.82
