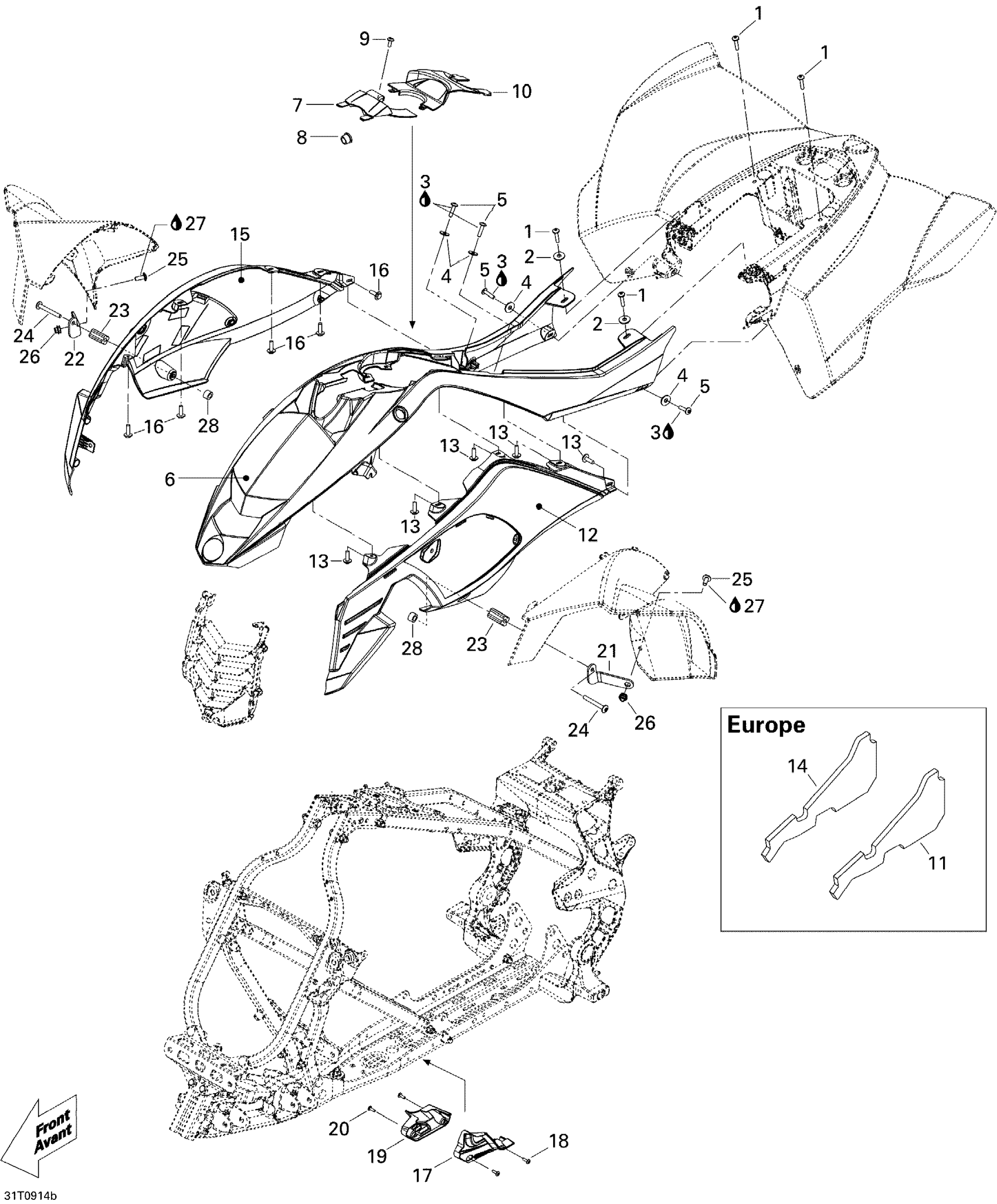

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 Body And Accessories, Front View Europe Diagram

#

Description
Price

1

FRONT BUMPER - Call your local BRP dealership

705002768

Unavailable

2

Hex Flange Screw M8 X 65, SCOTCH GRIP - Call your local BRP dealership

250000302

Unavailable

3

Hex. Flange Nut M8

233181434

$2.06

4

LH FOOT PROTECTOR - Call your local BRP dealership

705001745

Unavailable

5

RH FOOT PROTECTOR - Call your local BRP dealership

705001746

Unavailable

6

Torx Screw M6 x 25

250000284

$1.74

7

Elastic Stop Nut M6

232561434

$1.55

8

FOOT PROTECTOR BRACKET - Call your local BRP dealership

705002373

Unavailable

9

Threaded Insert M6 X 1.0

250100242

Unavailable

10

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

11

Torx Screw M6 X 16

250000223

$1.74

12

Flat Washer

250200097

$1.74

13

Torx Screw M6 X 20

250000722

$1.34

14

Elastic Stop Nut M6

232561434

$1.55

15

REAR FENDER KIT, YELLOW - Call your local BRP dealership | Includes 15 to 19

715000570

Unavailable

16

WARNING DECAL, PASSENGER - Call your local BRP dealership

704900005

Unavailable

17

WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership

704901365

Unavailable

18

Warning Decal Tire Pressure, French

704901395

Unavailable

19

Warning Decal, Passenger, French | French Version

704900006

Unavailable

20

Reflective Sheet | Europe

705003351

Unavailable

21

Reflective Sheet | Europe

705003357

Unavailable

22

Torx Screw M6 X 16

250000223

$1.74

23

Flat Washer

250200097

$1.74

24

Radiator Protector Ass'y

705004009

Unavailable

25

GRILL - Call your local BRP dealership

709200167

Unavailable

26

CLIP - Call your local BRP dealership

517302789

Unavailable

27

Torx Screw M6 X 16

250000223

$1.74

28

Panel Nut M6 X 1.0

250100198

$1.73

29

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

30

FOOT PROTECTOR SUPPORT - Call your local BRP dealership

705002091

Unavailable

31

Hex. Socket Screw M6 X 20

250000770

$1.63

32

Elastic Stop Nut M6

232561434

$1.55

33

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

34

Flange Elastic Nut M6

233261434

$3.61

35

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

36

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

37

REAR BUMPER - Call your local BRP dealership | Europe

705003395

Unavailable

38

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

39

CLAMP - Call your local BRP dealership

705002913

Unavailable

40

LH RADIATOR MOULDING - Call your local BRP dealership

705002514

Unavailable

41

SOCKET SCREW M6 X 12 - Call your local BRP dealership

250000339

Unavailable

42

RH RADIATOR MOULDING - Call your local BRP dealership

705002515

Unavailable

43

SOCKET SCREW M6 X 12 - Call your local BRP dealership

250000339

Unavailable

44

KIT FR. FENDER - Call your local BRP dealership | Includes 44 to 46, Yellow Model

715002375

Unavailable

45

Warning Decal, Death And Injuries | Europe

704901875

Unavailable

46

Warning Decal, Death And Injuries | French Version

704901441

Unavailable

47

RH FRONT FENDER KIT, YELLOW - Call your local BRP dealership | Includes 47 to 51, Yellow Model

715000567

Unavailable

48

Warning Decal, Under 16 Years Old

704900011

Unavailable

49

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

50

Warning Decal, Performance, French

704901135

Unavailable

51

WARNING DECAL, PERFORMANCE - Call your local BRP dealership

704901133

Unavailable

52

Pop Rivet 3/16"

293150123

$3.43

53

Washer

503191273

$1.06

54

Torx Screw M6 X 20

250000722

$1.34

55

Flat Washer

250200097

$1.74

56

Amber Reflector | Except Europe Model

705011222

$12.32

57

Amber Reflector | Except Europe Model

705011222

$12.32

58

Red Reflector

705011221

$12.32

59

Insert M5 X 0.8

293450268

$1.95

60

LH Reflector Support

705002859

Unavailable

61

Stavex Rivet

293150144

$0.77

62

RH Reflector Support

705002860

Unavailable

63

Stavex Rivet

293150144

$0.77

64

SUPPORT - Call your local BRP dealership

705002907

Unavailable

65

RH SUPPORT - Call your local BRP dealership

705002912

Unavailable

66

Stavex Rivet

293150144

$0.77
