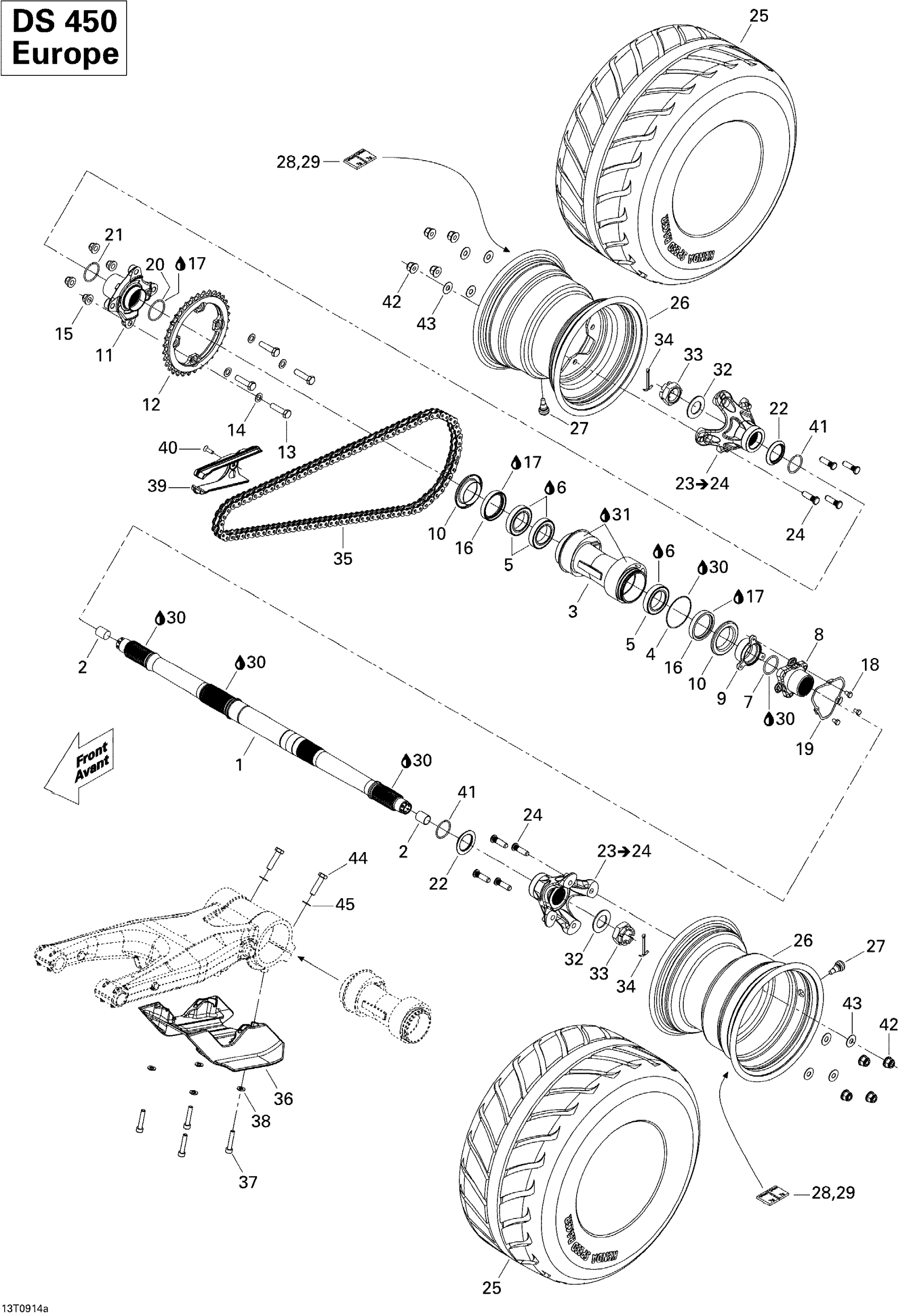

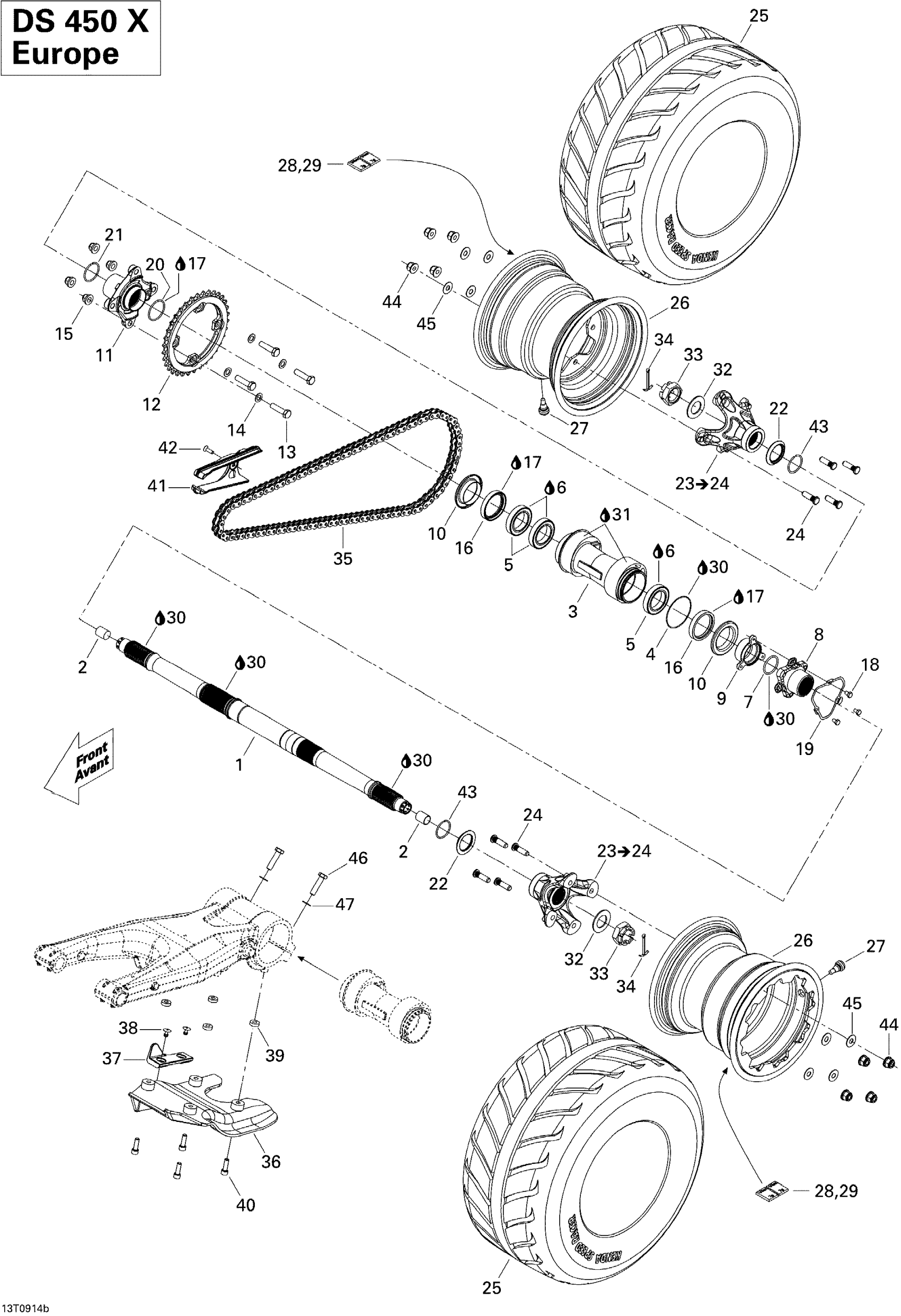

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 08- Drive System, Rear Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

705501079

Unavailable

2

CAP - Call your local BRP dealership

293730044

Unavailable

3

CHAIN TIGHTENER - Call your local BRP dealership

705500644

Unavailable

4

O-Ring

293300115

Unavailable

5

Ball Bearing

293350053

Unavailable

6

Loctite 609, 10 ml

413703100

Unavailable

7

O-RING - Call your local BRP dealership

293300089

Unavailable

8

Brake Disc Hub

705500646

Unavailable

9

NUT M40 - Call your local BRP dealership

705500649

Unavailable

10

Wear Ring

705500648

Unavailable

11

Wheel Hub

705501161

Unavailable

12

Sprocket Kit, 34 Teeth

715000643

Unavailable

13

Hex. Screw M10 X 40

207004036

Unavailable

14

Flat Washer

250200084

Unavailable

15

Hex. Flange Elastic Nut M10

233201436

Unavailable

16

Oil Seal

293250164

Unavailable

17

Synthetic Grease, 400 G

293550010

Unavailable

18

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161034

Unavailable

19

LOCK WASHER - Call your local BRP dealership

705500669

Unavailable

20

O-RING - Call your local BRP dealership

293300099

Unavailable

21

RING RETAINER - Call your local BRP dealership

705500108

Unavailable

22

SUPPORT RING - Call your local BRP dealership

705500663

Unavailable

23

Rear Wheel Hub Ass'y | Includes 23 to 24

705501075

Unavailable

24

Wheel Stud

250000138

Unavailable

25

TIRE_20X11R9 REAR - Call your local BRP dealership

705500970

Unavailable

26

RIM_9 INCH X 8,5 - Call your local BRP dealership

705500781

Unavailable

27

Rim Valve With Cap

705400193

Unavailable

28

Self Adhesive Weight, 5G 20mm

705502106

Unavailable

29

ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership

705500824

Unavailable

30

Graisse *Grease

293550062

Unavailable

31

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

32

FLAT WASHER - Call your local BRP dealership

250200087

Unavailable

33

Hex. Castlellated Nut M27

250100093

Unavailable

34

COTTER PIN - Call your local BRP dealership

250400028

Unavailable

35

CHAIN - Call your local BRP dealership

705501060

Unavailable

36

REAR SKID PLATE - Call your local BRP dealership

705500889

Unavailable

37

CHAIN SLIDER - Call your local BRP dealership

705500923

Unavailable

38

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

39

Washer

515176500

Unavailable

40

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205082534

Unavailable

41

Chain Slider

705501422

Unavailable

42

Socket Head Screw M6, Scotch Grip

205862034

Unavailable

43

RING RETAINER - Call your local BRP dealership

705500065

Unavailable

44

Flange Nut M10

250100105

Unavailable

45

Flat Washer

250200080

Unavailable

46

Hex. Screw M10 X 1.5 X 40

207004034

Unavailable

47

Flat Washer

250200084

Unavailable
