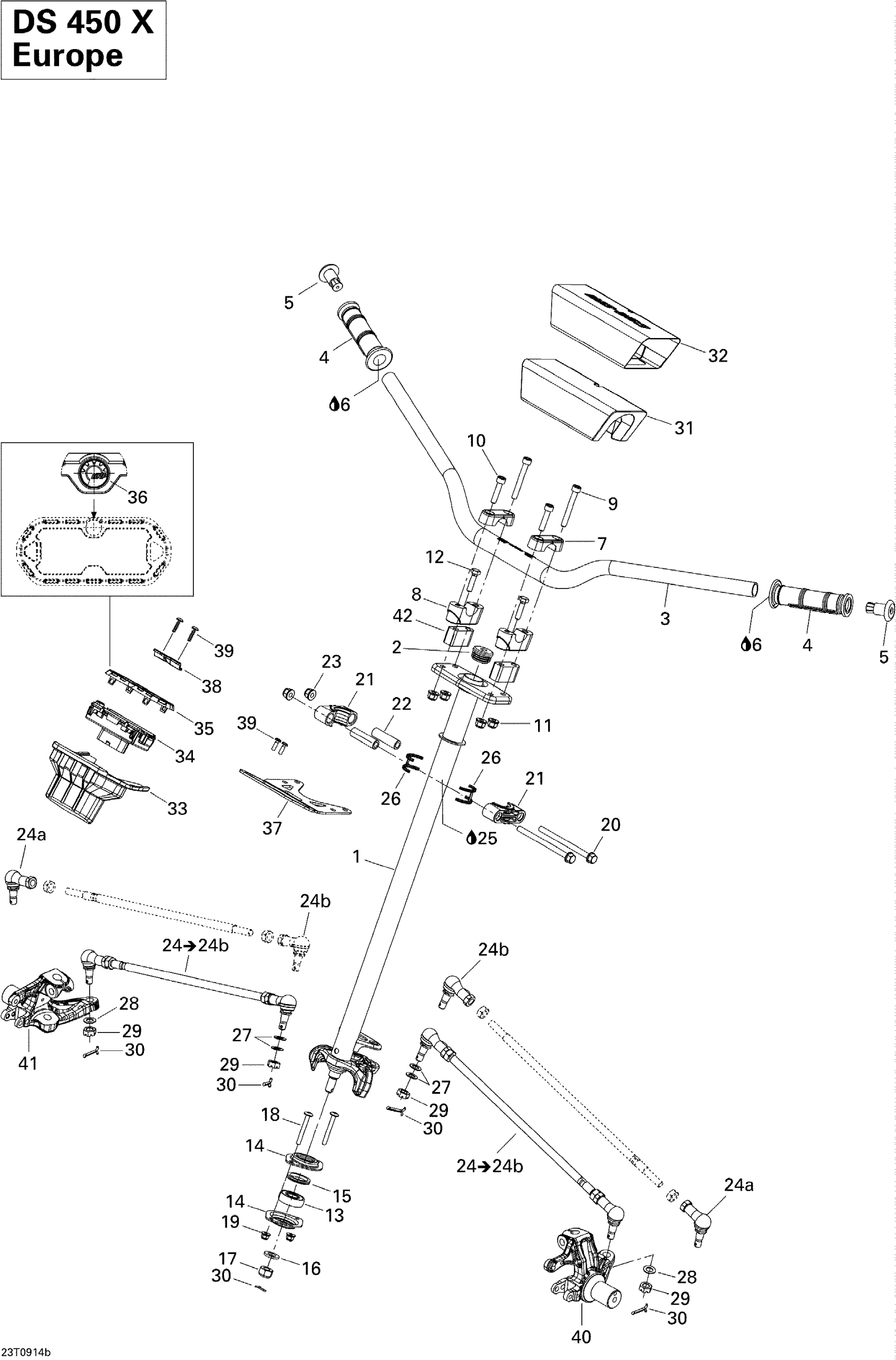

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 Steering Diagram

#

Description
Price

1

STEERING COLUMN - Call your local BRP dealership

709400542

Unavailable

2

Cap

293730045

Unavailable

3

HANDLE BAR - Call your local BRP dealership

709400495

Unavailable

4

Handle Grip

709400493

$14.75

5

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

6

Loctite 406, 7 Oz

293800100

$36.99

7

Support

709400496

$27.66

8

Lower Mounting Clamp

709402750

$27.66

9

Socket Head Screw M8 X 60

205086060

$3.38

10

Socket Head Screw

205083534

$2.06

11

Hex. Flange Elastic Nut M8

233281434

$1.74

12

Hex. Screw M8 X 30

207183060

$1.30

13

Ball Bearing

709400439

$18.43

14

THRUST WASHER - Call your local BRP dealership

709400468

Unavailable

15

Seal

293250177

$7.37

16

Flat Washer

234021430

$2.06

17

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

Unavailable

18

Torx Screw M6 X 50

250000317

$2.06

19

Flange Elastic Nut M6

233261434

$3.61

20

Hex. Flange Screw M8 X 110

230681034

$4.28

21

Half Bushing

709400471

$13.59

22

BUSHING - Call your local BRP dealership

709400072

Unavailable

23

Hex. Flange Elastic Nut M8

233281434

$1.74

24

ROD_TIE ASSY - Call your local BRP dealership

709400352

Unavailable

24a

BALL JOINT - Call your local BRP dealership

715900052

Unavailable

24b

BALL JOINT - Call your local BRP dealership

715900053

Unavailable

25

Synthetic Grease, 400 G

293550010

Unavailable

26

HALF-SEAL - Call your local BRP dealership

293300120

Unavailable

27

Flat Washer

250200084

$2.76

28

Flat Washer

250200084

$2.76

29

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

30

Cotter Pin

250400034

$2.06

31

Speedometer Cover

709400514

$15.35

32

Calibrated Speedometer | Includes 16 to 17

710003288

$332.28

33

Trim Ring Ass'y

710001183

$18.43

34

BRP Logo13 mm

704904615

$9.66

35

INDICATOR SUPPORT - Call your local BRP dealership

709400671

Unavailable

36

Latch Indicator Cover

709400573

$10.98

37

Truss Head Torx Screw K50 X 20

250000297

$2.06

38

LH KNUCKLE - Call your local BRP dealership

709400346

Unavailable

39

RH KNUCKLE - Call your local BRP dealership

709400348

Unavailable
