- DS 450 CE STD & X (3F9D,3G9D), 2009
07- Front Suspension

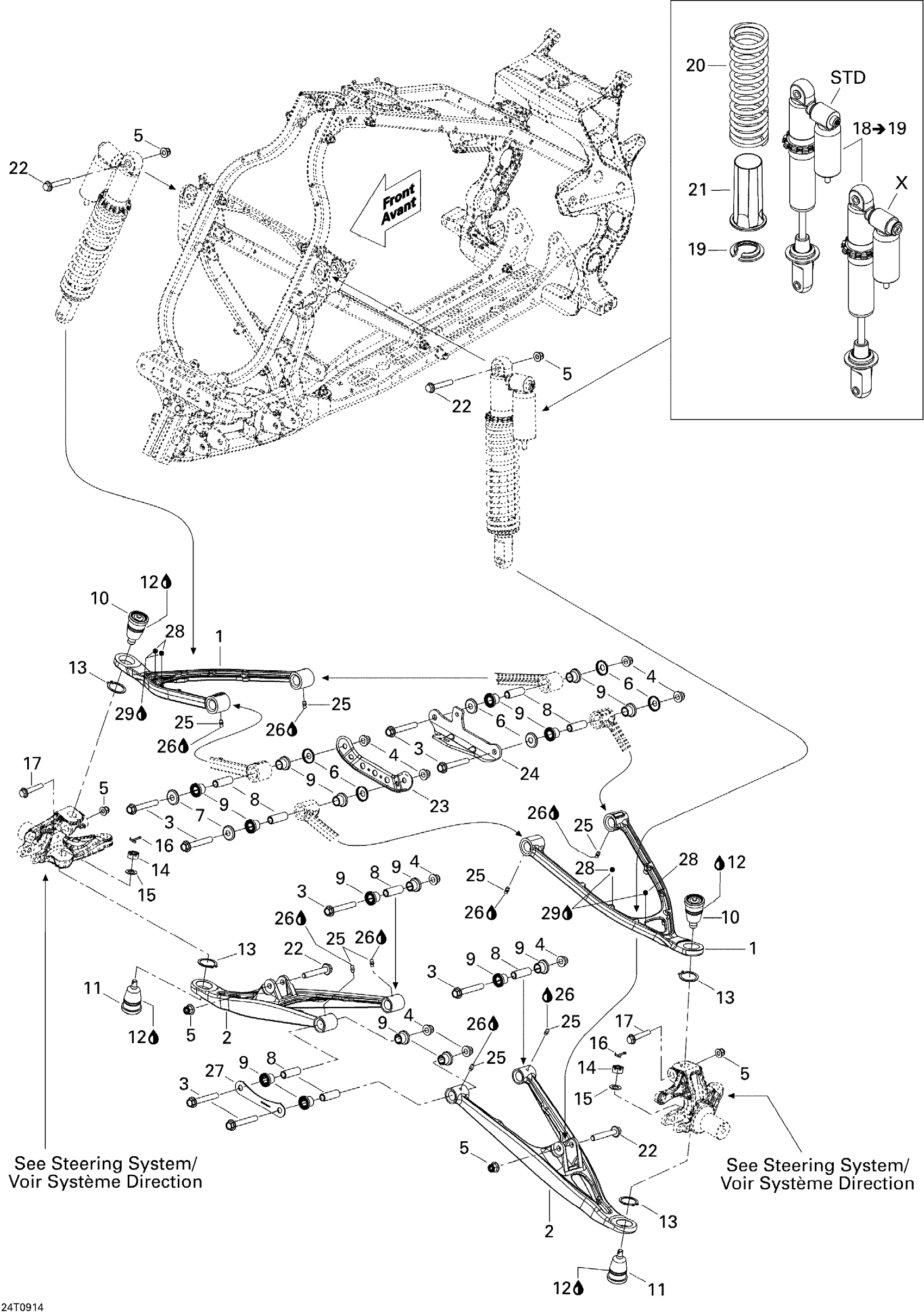

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 07- Front Suspension Diagram
#
Description
Price
1
UPPER ARM - Call your local BRP dealership
706200454
Unavailable
2
LOWER ARM - Call your local BRP dealership
706200456
Unavailable
3
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership
207607036
Unavailable
4
Hex. Flange Elastic Nut M10
233201436
Unavailable
5
Hex. Flange Elastic Nut M10
233201434
Unavailable
6
WASHER - Call your local BRP dealership
706200479
Unavailable
7
Flat Washer 10 mm, Stainless
234002600
Unavailable
8
Sleeve
706201587
Unavailable
9
Bushing
706200181
Unavailable
10
UPPER BALL JOINT - Call your local BRP dealership
706200462
Unavailable
11
LOWER BALL JOINT - Call your local BRP dealership
706200461
Unavailable
12
Loctite 609, 10 ml
413703100
Unavailable
13
Circlip 32 mm
293370009
Unavailable
14
CASTLE NUT - Call your local BRP dealership
250100094
Unavailable
15
Flat Washer
250200084
Unavailable
16
Cotter Pin
250400035
Unavailable
17
Hex. Flange Screw
207605534
Unavailable
18
FRONT SHOCK - Call your local BRP dealership
706200518
Unavailable
18
FRONT SHOCK - Call your local BRP dealership
706200531
Unavailable
19
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership
706200481
Unavailable
20
SPRING STOPPER - Call your local BRP dealership
706000528
Unavailable
21
ROD PROTECTOR - Call your local BRP dealership
706200645
Unavailable
22
HEX. FLANGED SCREW M10 X 65 - Call your local BRP dealership
207606534
Unavailable
23
FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership
706200532
Unavailable
24
FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership
709400679
Unavailable
25
Grease Fitting
250000315
Unavailable
26
Synthetic Grease, 400 G
293550010
Unavailable
27
Front Suspension Lower Plate
706200722
Unavailable
28
Socket Set Screw M6 X 6
206260699
Unavailable
29
Loctite 243, 10 ml
293800060
Unavailable
