- DS 450 CE STD & X (3F9D,3G9D), 2009
06- Hydraulic Brakes

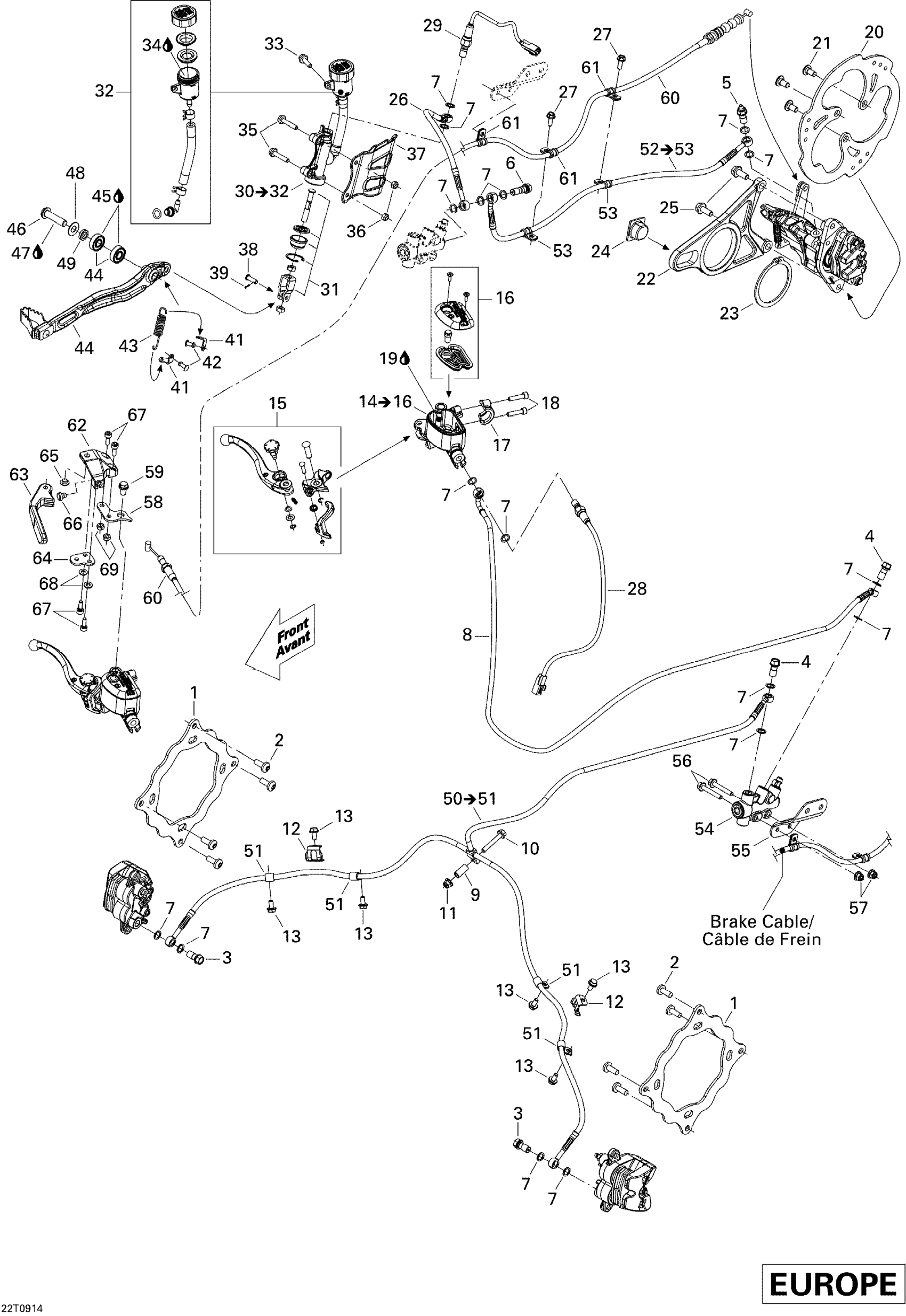

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 06- Hydraulic Brakes Diagram
#
1
FRONT BRAKE DISC - Call your local BRP dealership
705600400
Unavailable
2
Torx Screw M8 X 20, Scotch Grip
250000740
Unavailable
3
Banjo Bolt
705600628
Unavailable
4
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
5
SCREW BLEEDER - Call your local BRP dealership
705600680
Unavailable
6
Banjo Bolt
705600958
Unavailable
7
Copper Washer
705601628
Unavailable
8
FRONT LEVER BRAKE HOSE ASS'Y - Call your local BRP dealership
705600615
Unavailable
9
SPACER - Call your local BRP dealership
512059812
Unavailable
10
Hex. Flange Screw M6 X 40
207664034
Unavailable
11
Flange Elastic Nut M6
233261434
Unavailable
12
Hose Holder
705600553
Unavailable
13
Hex. Flange Screw M6 X 12, Scotch Grip
207561234
Unavailable
14
CYLINDER MASTER ASS'Y - Call your local BRP dealership | Includes 25 to 27
705600409
Unavailable
15
Brake Lever Kit
705600491
Unavailable
16
CAP SET - Call your local BRP dealership
705600493
Unavailable
17
BRACKET KIT - Call your local BRP dealership
705600619
Unavailable
18
SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership
205062534
Unavailable
19
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
20
REAR BRAKE DISC - Call your local BRP dealership
705600655
Unavailable
21
SHOULDER SCREW M8 - Call your local BRP dealership
250000330
Unavailable
22
REAR CALIPER SUPPORT - Call your local BRP dealership
705600656
Unavailable
23
SNAP RING - Call your local BRP dealership
293370045
Unavailable
24
GUIDE REAR CALIPER - Call your local BRP dealership
705600412
Unavailable
25
Hex. Flange Screw M10 X 16 S.GRIP
250001044
Unavailable
26
BRAKE LINE - Call your local BRP dealership
705600986
Unavailable
27
Hex. Flange Screw M6 X 16
210261650
Unavailable
28
Switch
710003837
Unavailable
29
BRAKE SWITCH - Call your local BRP dealership
710003838
Unavailable
30
Rear Master Cylinder | Includes 46 to 48
705600738
Unavailable
31
ROD SET - Call your local BRP dealership
705600498
Unavailable
32
SET TANK ASS'Y - Call your local BRP dealership
705600740
Unavailable
33
Hex. Flange Screw M6 X 20
207662034
Unavailable
34
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
35
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
36
Elastic Stop Nut M6
232561434
Unavailable
37
Hose Protector
705600538
Unavailable
38
Clevis Pin
250400031
Unavailable
39
Cotter Pin
250400032
Unavailable
40
BRAKE PEDAL - Call your local BRP dealership
705600534
Unavailable
41
FIXATION PLATE - Call your local BRP dealership
705600631
Unavailable
42
Pop Rivet 3/16”
390407200
Unavailable
43
BRAKE PEDAL SPRING - Call your local BRP dealership
705600635
Unavailable
44
Bearing
705600458
Unavailable
45
Loctite 609, 10 ml
413703100
Unavailable
46
SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership
205404036
Unavailable
47
Loctite 243, 10 ml
293800060
Unavailable
48
Washer
506152194
Unavailable
49
Bushing
293900087
Unavailable
50
BRAKE LINE - Call your local BRP dealership | Includes 50 to 51
705601041
Unavailable
51
Clamp
293650256
Unavailable
52
BRAKE LINE - Call your local BRP dealership | Includes 52 to 53
705600948
Unavailable
53
Clamp
293650256
Unavailable
54
SPLITTER - Call your local BRP dealership
705600617
Unavailable
55
Splitter Support
705600618
Unavailable
56
Hex. Flange Screw M6 X 40
207664034
Unavailable
57
Flange Elastic Nut M6
233261434
Unavailable
58
LEVER SUPPORT - Call your local BRP dealership
705600660
Unavailable
59
Hex. Flange Screw M10 X 16 S.GRIP
250001044
Unavailable
60
BRAKE CABLE - Call your local BRP dealership
705600661
Unavailable
61
Clamp
293650256
Unavailable
62
CABLE SUPPORT - Call your local BRP dealership
705600662
Unavailable
63
LEVER BRAKE - Call your local BRP dealership
705600663
Unavailable
64
SUPPORT - Call your local BRP dealership
705600664
Unavailable
65
LEVER PIVOT - Call your local BRP dealership
705600665
Unavailable
66
Stopper
705600666
Unavailable
67
Socket Screw M6 X 16
205061660
Unavailable
68
Stainless Flat Washer M6
234061600
Unavailable
69
Elastic Stop Nut M6
232561434
Unavailable
