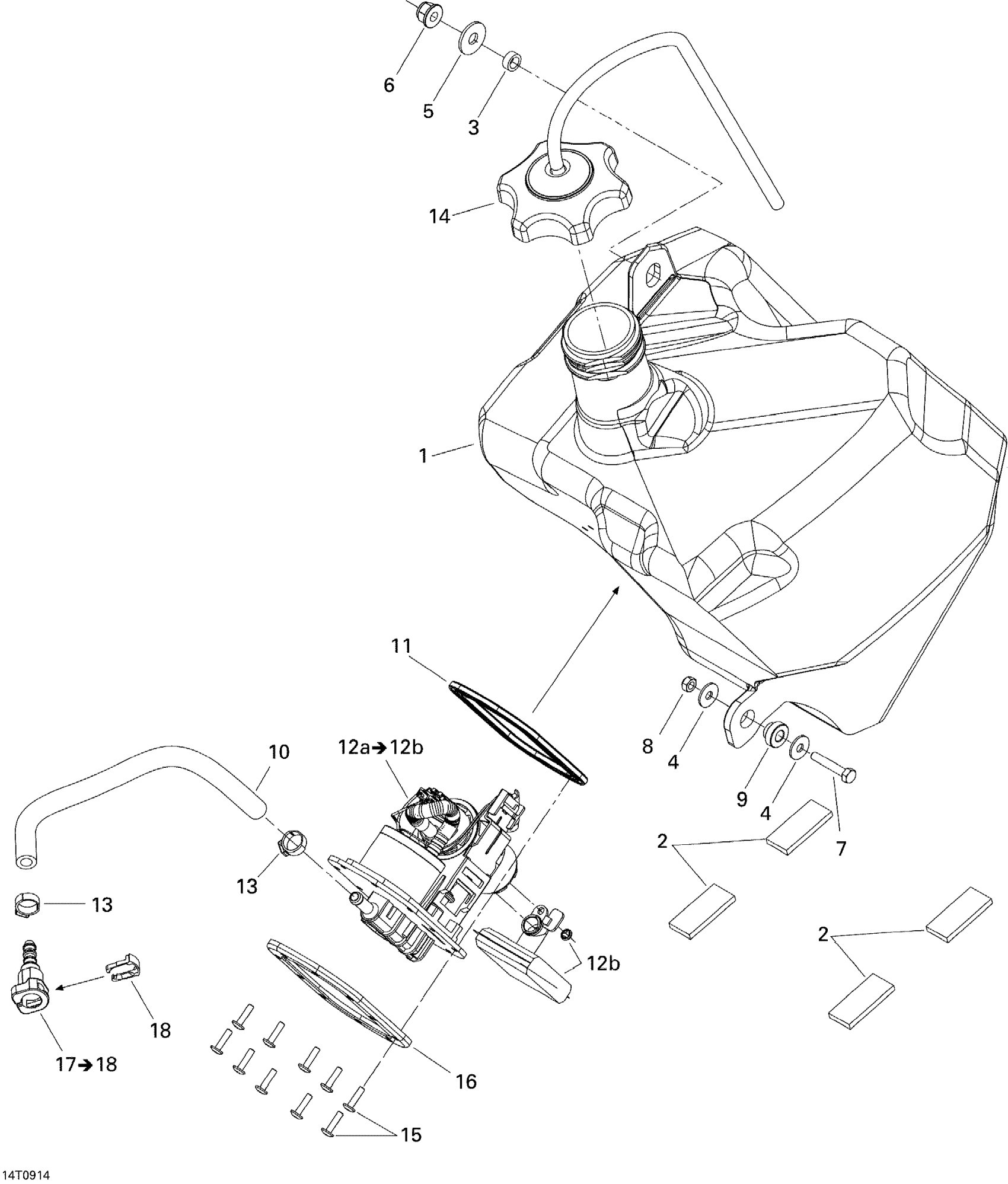

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000180

Unavailable

2

Rubber Pad

709000401

$9.98

3

BUSHING - Call your local BRP dealership

293900067

Unavailable

4

Flat Washer

250200082

$0.35

5

Flat Washer M8

234082430

$2.06

6

Hex. Flange Elastic Nut M8

233281434

$1.74

7

Hex. Flange Screw M6 X 35

207063544

$1.35

8

Elastic Stop Nut M6

232561434

$1.55

9

BUSHING - Call your local BRP dealership

293900088

Unavailable

10

Was 709000163 Fuel Line

219704440

$27.66

11

Joint Etanche *Gasket

709000540

$36.89

12a

Fuel Pump

709000386

Unavailable

12b

Filter Kit

715900063

Unavailable

13

Crimp Clamp, 15.3-706R

293650047

$2.64

14

FUEL CAP - Call your local BRP dealership

709000117

Unavailable

15

Torx Screw M4 X 16

250000750

$1.37

16

Pump Ring

709000170

$15.35

17

Female Quick Fitting Ass'y

709000125

$11.12

18

Locking Clip

513033135

$5.11
