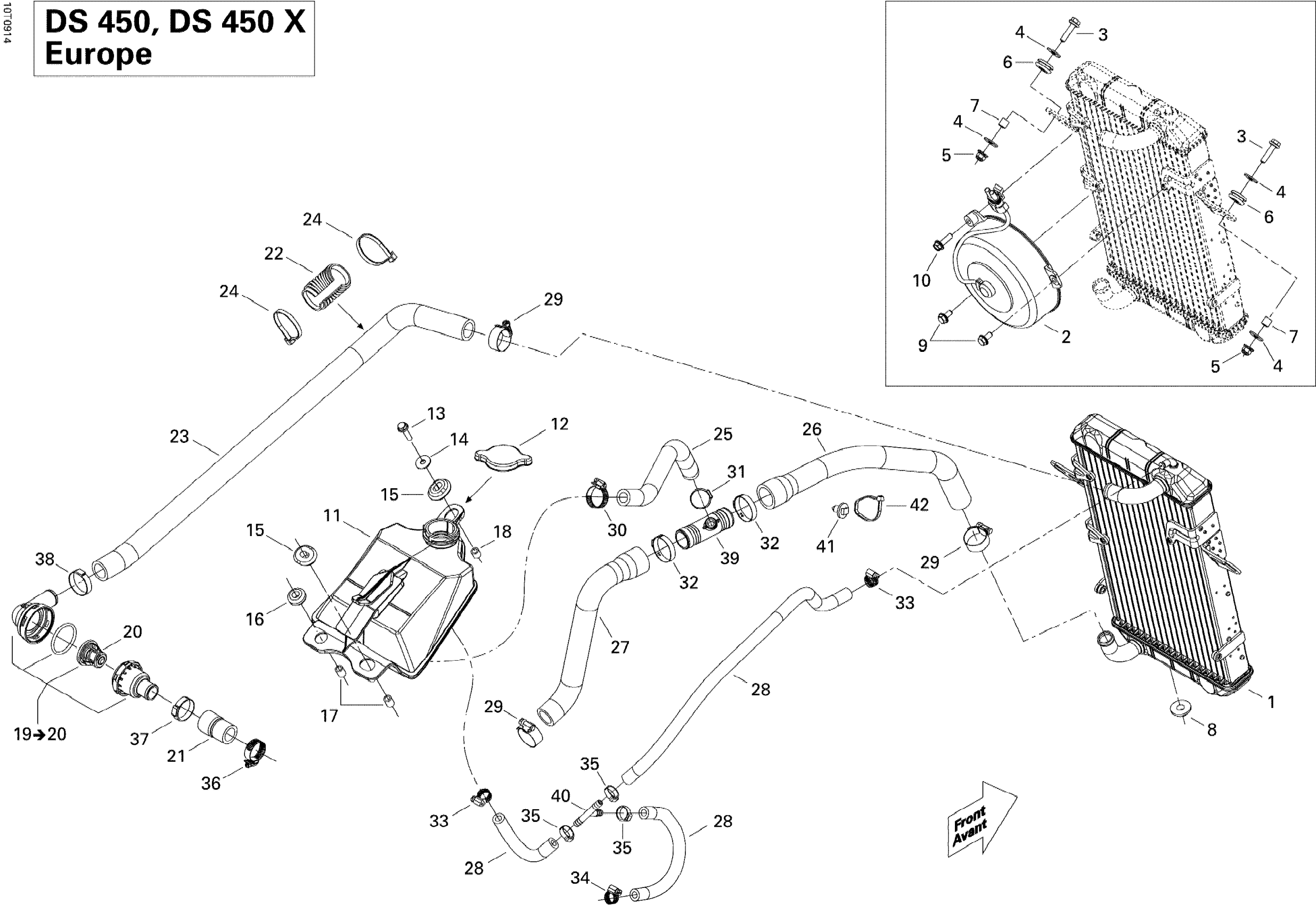

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 Cooling System Diagram

RADIATOR - Call your local BRP dealership

709200152

Unavailable

FAN - Call your local BRP dealership

709200173

Unavailable

Hex. Flange Screw M6 X 25

207662534

$1.74

Flat Washer

250200082

$0.35

Flange Elastic Nut M6

233261434

$3.61

Grommet

709000582

$4.38

Bushing

293900105

$6.26

Grommet

705003932

$2.75

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

$2.06

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Tank

709200164

$50.74

Radiator Pressure Cap

709200207

$18.82

Hex. Flange Screw M6 X 25

207562544

$1.39

Flat Washer

250200082

$0.35

Oval Washer

705005156

$4.85

Grommet

709000582

$4.38

Bushing

293900019

$7.37

Bushing

293900105

$6.26

THERMOSTAT ASS'Y - Call your local BRP dealership

709200172

Unavailable

Thermostat | Includes 53 to 54

420222495

$36.89

HOSE - Call your local BRP dealership

709200200

Unavailable

Tubing 25 MM 1000MM Long

219704402

$12.69

RADIATOR IN HOSE - Call your local BRP dealership

709200236

Unavailable

Tie-Rap 180 mm

414115200

$0.09

Was 276000001 Hose 12.5 mm

219704394

$42.87

RADIATOR OUT HOSE - Call your local BRP dealership

709200237

Unavailable

HOSE PUMP - Call your local BRP dealership

709200238

Unavailable

Was 509000407 Hose 8 mm

219704420

$40.27

Tridon Gear Clamp

293650051

$3.61

Tridon Gear Clamp

293650173

$2.46

Oetiker Clamp

293650012

$4.94

Oetiker Gear Clamp 36.1MM

509000045

$3.55

Norma Clamp

293650084

$4.00

Norma Clamp

293650084

$4.00

Oetiker Clamp

293650125

$2.69

Tridon Gear Clamp

293650173

$2.46

Crimp Clamp

293650099

$4.60

Oetiker Gear Clamp

293650165

$4.32

Y-FITTING - Call your local BRP dealership

509000390

Unavailable

T-Fitting | Europe

293710024

$12.82

Mount Dart

293730040

$0.86

Tie-Rap 180 mm

414115200

$0.09
