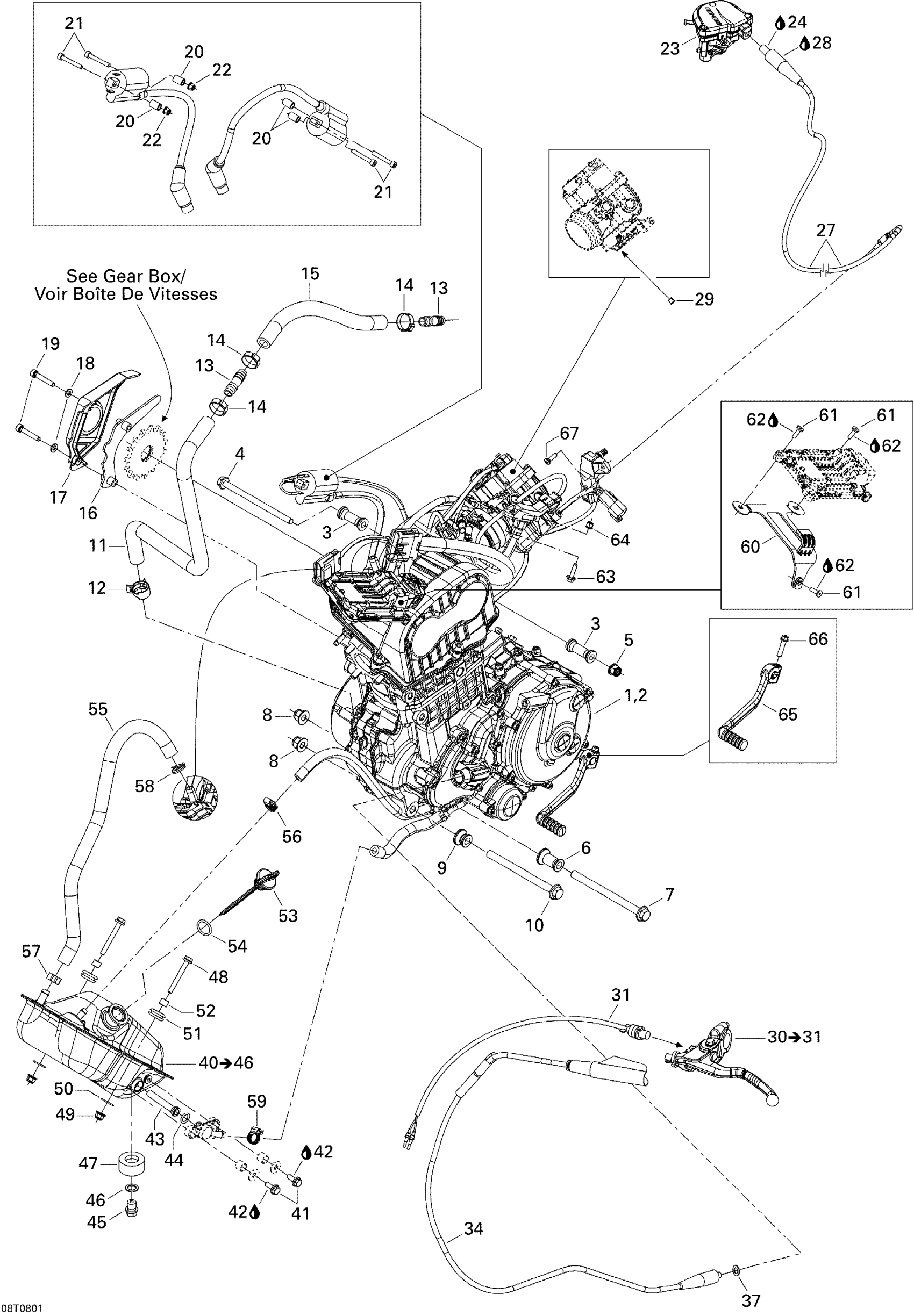

Can-Am DS 450, 2008 01- Engine Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

LONG BLOCK, 449 ENGINE - Call your local BRP dealership

420044901

Unavailable

3

SPACER - Call your local BRP dealership

293900071

Unavailable

4

Hex. Flange Screw M8 X 130

230683034

Unavailable

5

Hex. Flange Elastic Nut M8

233281434

Unavailable

6

SPACER - Call your local BRP dealership

293900072

Unavailable

7

HEX. FLANGED SCREW M10 X 135 - Call your local BRP dealership

230603536

Unavailable

8

Hex. Flange Elastic Nut M10

233201434

Unavailable

9

SPACER - Call your local BRP dealership

293900074

Unavailable

10

HEX. FLANGED SCREW M10 X 130 - Call your local BRP dealership

230603036

Unavailable

11

Hose

707000502

Unavailable

12

Norma Clamp

293650110

Unavailable

13

CONNECTOR - Call your local BRP dealership

293710119

Unavailable

14

Oetiker Clamp

293650012

Unavailable

15

HOSE 12 MM - Call your local BRP dealership

707000537

Unavailable

16

CHAIN GUARD - Call your local BRP dealership

707000464

Unavailable

17

SPROCKET COVER - Call your local BRP dealership

707000425

Unavailable

18

Flat Washer M6

234061430

Unavailable

19

SOCKET HEAD SCREW M6 X 35, SCOTCH GRIP - Call your local BRP dealership

205563536

Unavailable

20

Sleeve

293900078

Unavailable

21

SOCKET HEAD SCREW M5 X 35 - Call your local BRP dealership

205053534

Unavailable

22

Flange Elastic Nut M5

233251434

Unavailable

23

THROTTLE HANDLE - Call your local BRP dealership

707000440

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

27

THROTTLE CABLE - Call your local BRP dealership

707000439

Unavailable

28

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

29

Cable Guide

707000434

Unavailable

30

HANDLE LEVER ASS'Y - Call your local BRP dealership | Includes 30 to 31

707000605

Unavailable

31

LEVER SHIFTER SWITCH - Call your local BRP dealership

707000183

Unavailable

34

CLUTCH CABLE - Call your local BRP dealership

707000606

Unavailable

37

Washer

504082900

Unavailable

40

OIL TANK ASS'Y - Call your local BRP dealership | Includes 40 to 46

707000806

Unavailable

41

Hex. Flange Screw M6 X 20

207662034

Unavailable

42

Loctite 243, 10 ml

293800060

Unavailable

43

STRAINER - Call your local BRP dealership

519000144

Unavailable

44

O-Ring

293300128

Unavailable

45

Plug

250500010

Unavailable

46

Copper Washer

250200061

Unavailable

47

RUBBER STOPPER - Call your local BRP dealership

705001678

Unavailable

48

HEX. FLANGED SCREW M6 X 50 - Call your local BRP dealership

207665034

Unavailable

49

Flange Elastic Nut M6

233261434

Unavailable

50

Flat Washer

250200082

Unavailable

51

Grommet

293720062

Unavailable

52

SPACER - Call your local BRP dealership

293900089

Unavailable

53

Oil Cap

707000526

Unavailable

54

O-Ring

709000089

Unavailable

55

HOSE - Call your local BRP dealership

707000544

Unavailable

56

Tridon Gear Clamp

293650171

Unavailable

57

Oetiker Clamp

293650011

Unavailable

58

ROTOCLIP CLAMP - Call your local BRP dealership

293650180

Unavailable

59

Tridon Gear Clamp

293650171

Unavailable

60

MODULE SUPPORT - Call your local BRP dealership

710000972

Unavailable

61

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

250000295

Unavailable

62

Loctite 243, 10 ml

293800060

Unavailable

63

HEX. FLANGED SCREW M5 X 20 - Call your local BRP dealership

207652034

Unavailable

64

Flange Elastic Nut M5

233251434

Unavailable

65

Gearshift Pedal

420248540

Unavailable

66

Torx Flange Screw M6 X 25

420440234

Unavailable

67

Torx Screw K50 X 16

250000720

Unavailable
