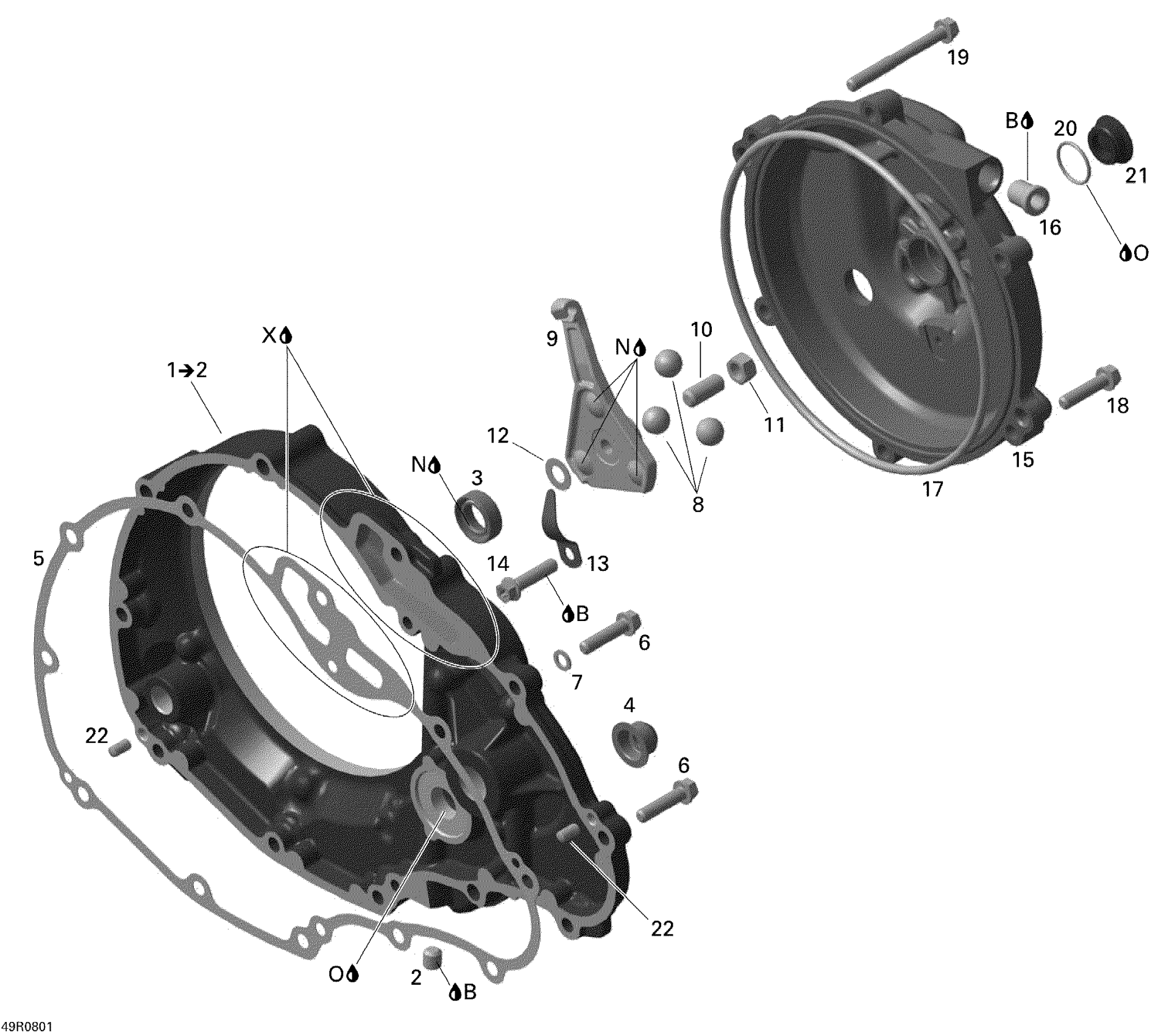

Can-Am DS 450, 2008 Clutch Cover Diagram

#

Description
Price

1

Clutch Cover | Includes 1 to 2

420611666

$207.66

2

Plug Screw

420941611

$11.98

3

Oil Seal

420250455

$15.22

4

SLEEVE - Call your local BRP dealership

420647100

Unavailable

5

Gasket

420430995

$27.66

6

Torx Flange Screw M6 X 25

420641238

$2.68

7

Seal Washer

420230415

$1.77

8

Ball 12 mm

420232150

$5.52

9

Clutch Release Cam

420259325

$32.28

10

Adjustment Screw M8 X 19.5

420240310

$11.98

11

Hex. Nut M8

420942674

$5.02

12

Thrust Washer

420227945

$3.86

13

SPRING - Call your local BRP dealership

420239907

Unavailable

14

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

15

Clutch Release Cover

420210966

$87.66

16

Thread Sleeve M8

420629010

$16.12

17

Gasket

420431432

$25.35

18

Torx Flange Screw M6 X 25

420641238

$2.68

19

Torx Flange Screw M6 X 55

420440702

$2.54

20

O-Ring

420250890

$2.50

21

PLUG SCREW M18 - Call your local BRP dealership

420241800

Unavailable

22

Drive Pin 5 X 10

420929650

$1.34

B

Loctite 243, 10 ml

293800060

$20.77

N

Grease, Super Lube

293550030

$24.67

O

Not Available As Spare Part - Friction Washer

Unavailable

X

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97
