08- Rear Swing Arm

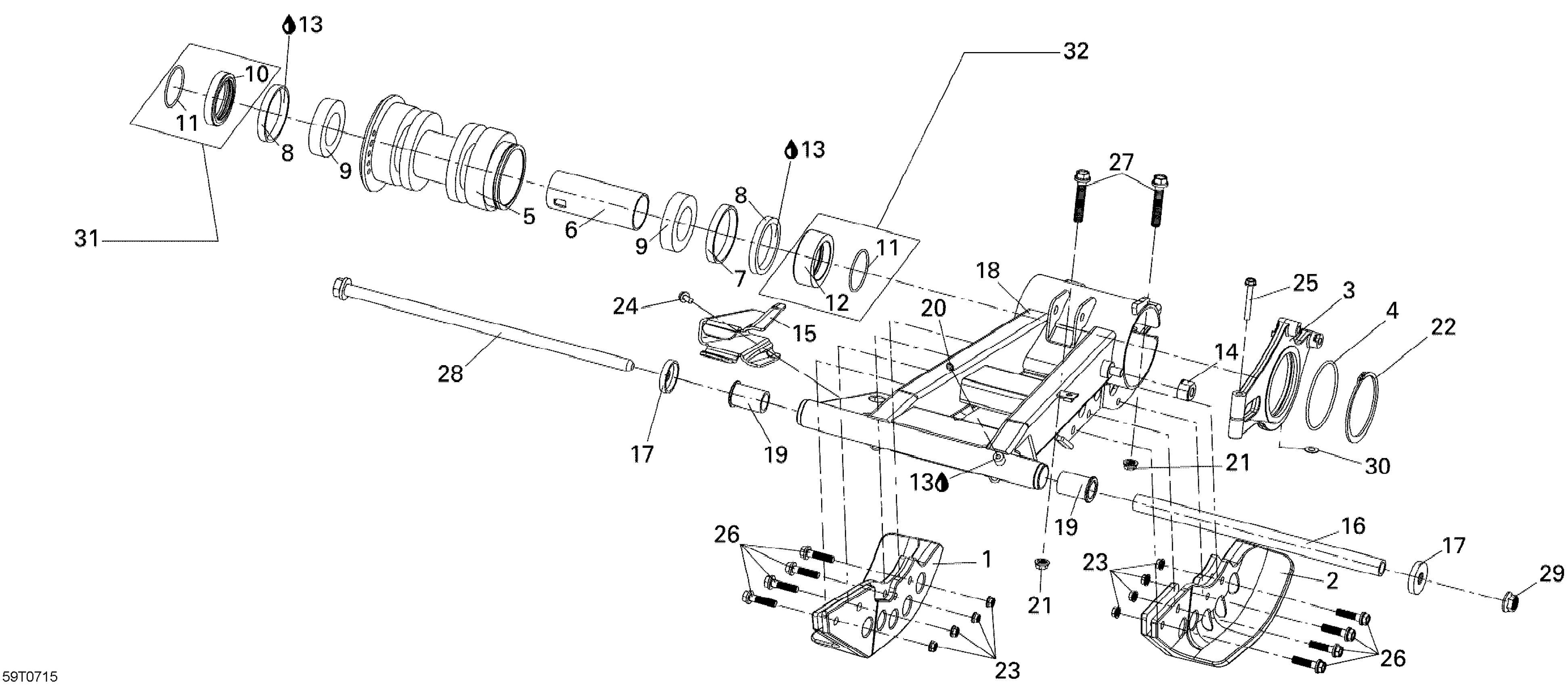

Can-Am DS 250 NA / Inter, 2007 08- Rear Swing Arm Diagram
#
1
RH Skid Plate
S40150RCA000
Unavailable
2
LH Skid Plate
S40160RCA000
Unavailable
3
Rear Brake Caliper Bracket
S42318RCA000
Unavailable
4
O Ring
S42319RCA000
Unavailable
5
Rear Axle Housing Ass'y
S4231ARCA000
Unavailable
6
AXLE HOUSING SPACER - Call your local BRP dealership
S42311RCA000
Unavailable
7
Steel Collar
S42312RCA000
Unavailable
8
Oil Seal
S91206RCA000
Unavailable
9
Ball Bearing
S961506008310
Unavailable
10
Not Available As Spare Parts
NASP/NDPR
Unavailable
11
Not Available As Spare Parts
NASP/NDPR
Unavailable
12
Not Available As Spare Parts
NASP/NDPR
Unavailable
13
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
293550033
Unavailable
14
Locking Collar
S52201RCA000
Unavailable
15
Chain Guide
S52205RCA000
Unavailable
16
Pivot Spacer
S52208RCA000
Unavailable
17
Pivot Dust Seal
S52209RCA000
Unavailable
18
Swing Arm
S52200RCA000
Unavailable
19
Pivot
S52210RCA000
Unavailable
20
Grease Fitting
408200700
Unavailable
21
Flanged Nylon Nut 10 mm
S90304RCA000
Unavailable
22
Circlip
S91301RCA000
Unavailable
23
Flanged Nut 10 mm
S9405008070
Unavailable
24
Flanged Bolt M6 X 12
S958010601207
Unavailable
25
Hex. Flange Screw M6 X 45
207664544
Unavailable
26
Flanged Bolt M8 X 30
S958010803007
Unavailable
27
Flanged Bolt M10 X 65
S964001006508
Unavailable
28
Pivot Bolt
S90103RCA000
Unavailable
29
Self Lock Nut
S90305GW090A
Unavailable
30
Washer
S9410206000
Unavailable
31
RH Axle Collar Ass'y
S4011ARCA000
Unavailable
32
LH Axle Collar Ass'y
S4011BRCA000
Unavailable
