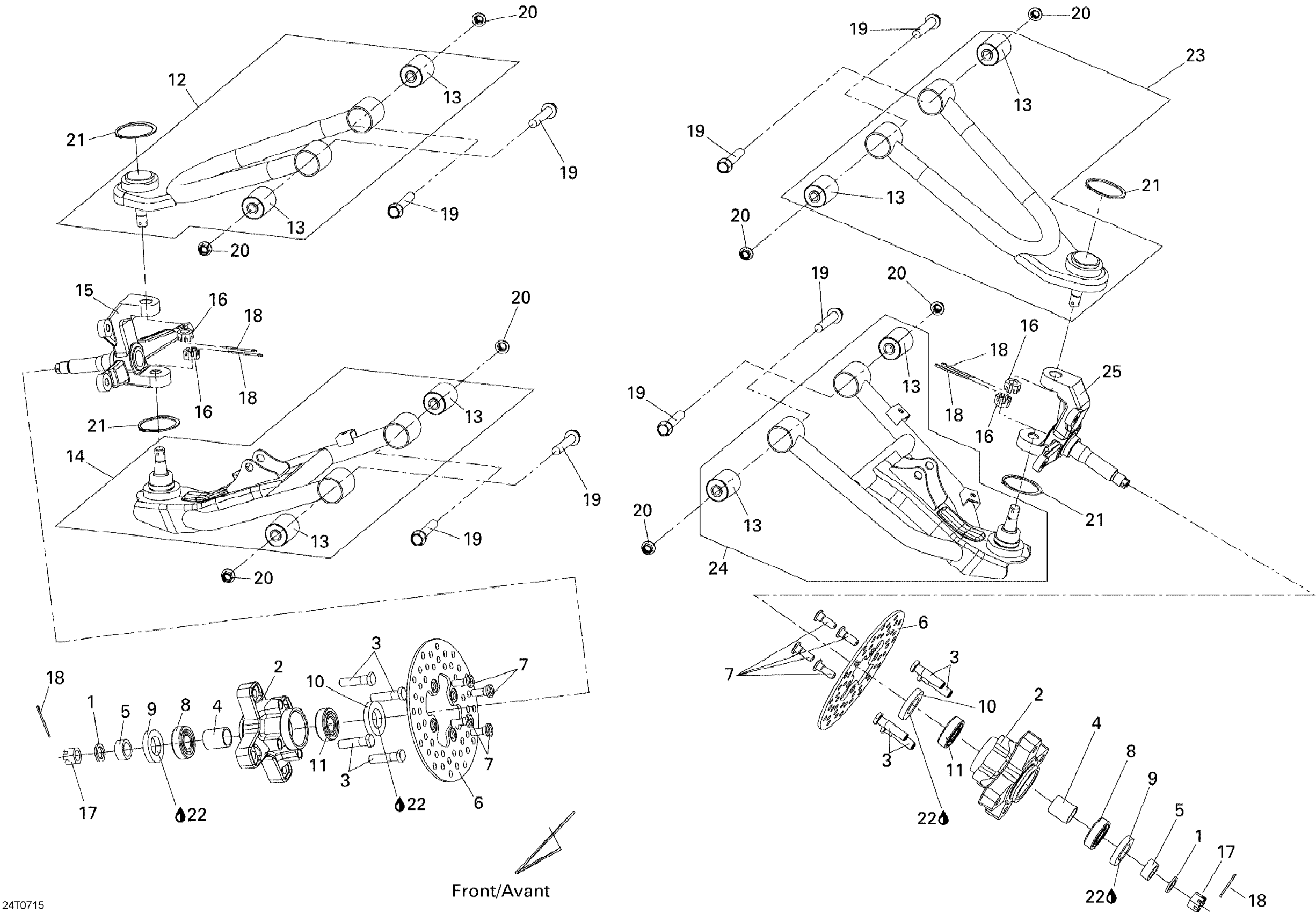

Can-Am DS 250 NA / Inter, 2007 Front Suspension Diagram

#

Description
Price

1

Front Wheel Washer

S44611RCA000

$0.95

2

Front Wheel Hub

S44610RCA000

$101.49

3

Wheel Stud

S44612RCA000

$1.78

4

Inner Spacer

S44620RCA000

$8.99

5

Outer Collar

S44622RCA000

$9.79

6

Brake Disk

S45351RCA000

$91.99

7

Bolt M8 X 24

S90105KR3000

$4.55

8

Radial Ball Bearing

S91208GA7003

$20.99

9

Oil Seal

S91202RCA000

$7.51

10

Oil Seal

S91205RCA000

$14.28

11

Ball Bearing

S961506004310

$20.99

12

RH Upper Arm Ass'y

S50200RCA000

$116.49

13

Bushing

S50201RCA000

$23.49

14

RH Lower Arm Ass'y

S50220RCA000

$116.49

15

RH Knuckle Ass'y

S50240RCA000

$211.99

16

Hex. Castellated Nut M12

S94011122000S

Unavailable

17

Hex. Castlellated Nut 14 mm

S94011142000S

$2.30

18

Cotter Pin

371003400

$0.71

19

Flanged Bolt M10 X 60

S958011006007

$1.18

20

Flanged Nylon Nut 10 mm

S90304RCA000

$5.66

21

CIRCLIP - Call your local BRP dealership

S9451029120

Unavailable

22

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

23

LH Upper Arm

S50210RCA000KB

$116.49

24

Lh Lower Arm Ass'Y This part replaces S50230RCA000.

S50230RCA000KB

$116.49

25

LH Knuckle Ass'y

S50250RCA000

$211.99
