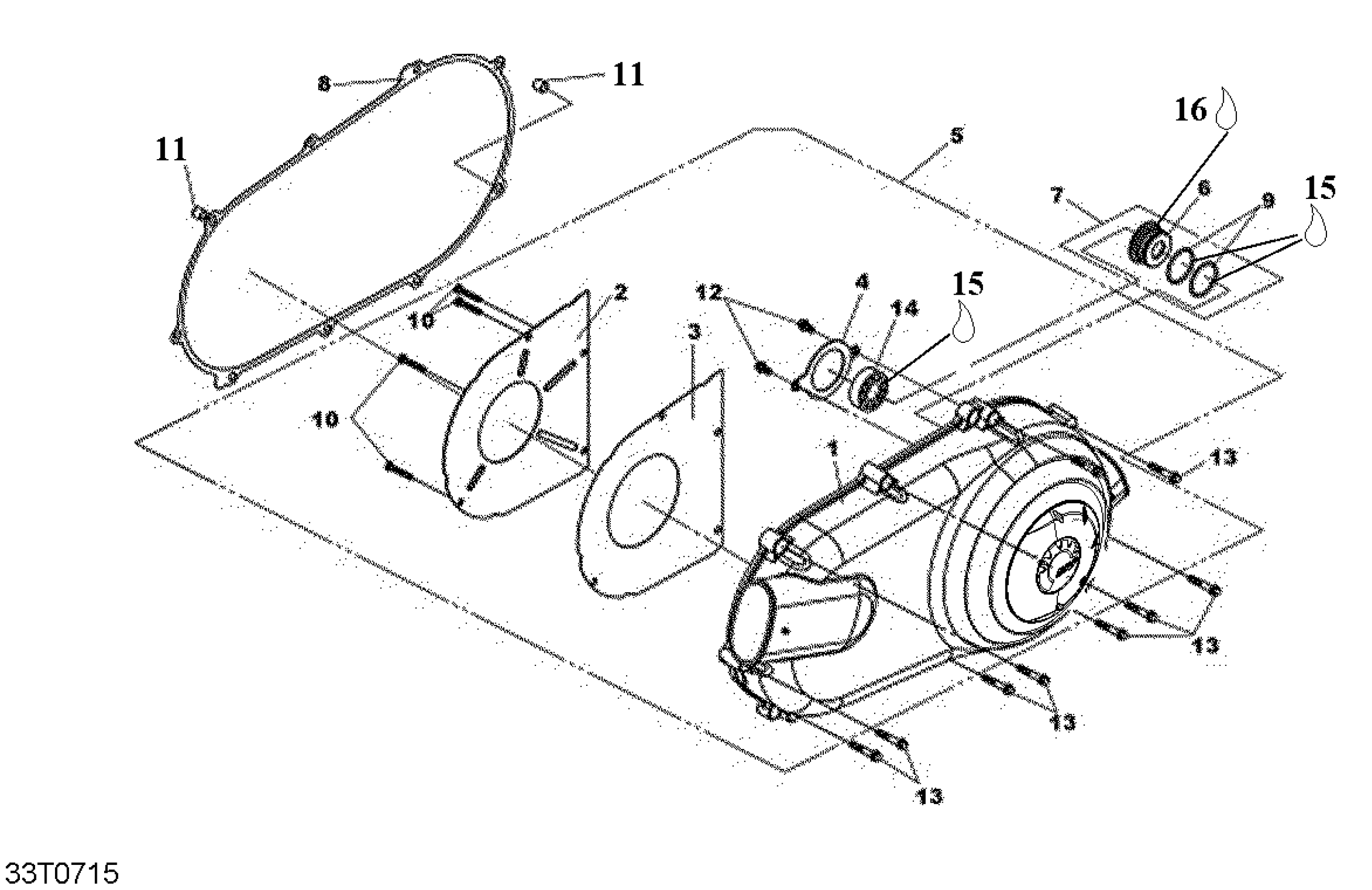

Can-Am DS 250 NA / Inter, 2007 05- CVT Cover Diagram

#

Description
Price

1

Not Available As Spare Parts

NASP/NDPR

Unavailable

2

Not Available As Spare Parts

NASP/NDPR

Unavailable

3

Not Available As Spare Parts

NASP/NDPR

Unavailable

4

Not Available As Spare Parts

NASP/NDPR

Unavailable

5

LH Crankcase Cvt Cover Ass'y

S1134ARCA000

Unavailable

6

Not Available As Spare Parts

NASP/NDPR

Unavailable

7

Bearing Collar Ass'y

S1137AHMA000

Unavailable

8

Gasket

S11395RB1000

Unavailable

9

Not Available As Spare Parts

NASP/NDPR

Unavailable

10

Not Available As Spare Parts

NASP/NDPR

Unavailable

11

Dowel Pin

S9430108140

Unavailable

12

Hex. Flange Screw M6 X 12

S960010601200

Unavailable

13

Hex. Flange Screw M6 X 35

S960010603500

Unavailable

14

Ball Bearing

504152418

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Isoflex Grease, TOPAS NB52, 50 g

293550021

Unavailable
