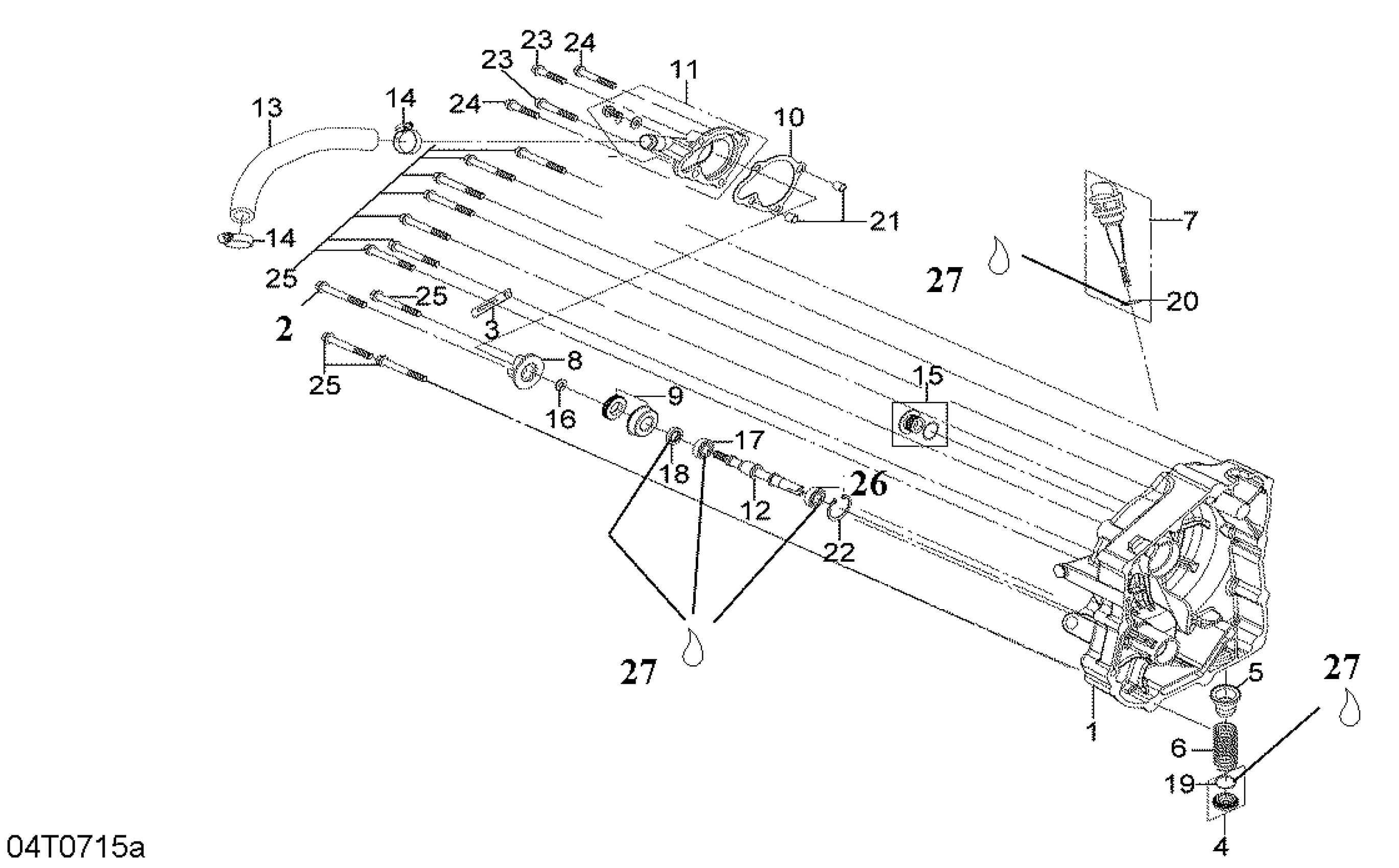

Can-Am DS 250 NA / Inter, 2007 Magneto Cover and Water Pump Diagram

#

Description
Price

1

Crankcase

S11330RB1000

$169.99

2

Hex. Flange Screw M6 X 70

S960010607000

$1.04

3

Clamp

S12342X01000

Unavailable

4

Cap Ass'y

S1236AV02000

$6.67

5

OIL FILTER SCREEN - Call your local BRP dealership

S15421M9Q000

Unavailable

6

Oil Filter Screw Spring

S15426M9Q000

$20.99

7

Oil Level Gauge Ass'Y

S1565ARCA001

$13.22

8

Water Pump Impeller

S19215HLA000

$6.59

9

Mechanical Seal

S19217H9A300

$12.71

10

Gasket

S19229H9A002

$1.19

11

Water Pump Cover

S1922AHLA000

$13.24

12

Water Pump Shaft

S19231HMA000

$15.87

13

Hose

S19502RB1000

$6.67

14

Clamp

S19505KS6700

$1.40

15

Cap And Seal Ass'y

S9008AH9A000

$2.68

16

Washer

S90423KJ9000

$0.53

17

Ball Bearing

S91001KJ9005

$9.26

18

Oil Seal

S91205KF0003

$4.55

19

Not Available As Spare Parts

NASP/NDPR

Unavailable

20

Not Available As Spare Parts

NASP/NDPR

Unavailable

21

Dowel Pin

S9430108140

$2.57

22

Circlip

S9452026000

$0.95

23

Flanged Bolt M6 X 22

S960010602200

$0.42

24

Flanged Bolt M6 X 32

S960010603200

$0.42

25

Flanged Bolt M6 X 45

S960010604500

$0.42

26

Ball Bearing

S961006000000

$14.74

27

Not Available As Spare Part - Friction Washer

Unavailable
