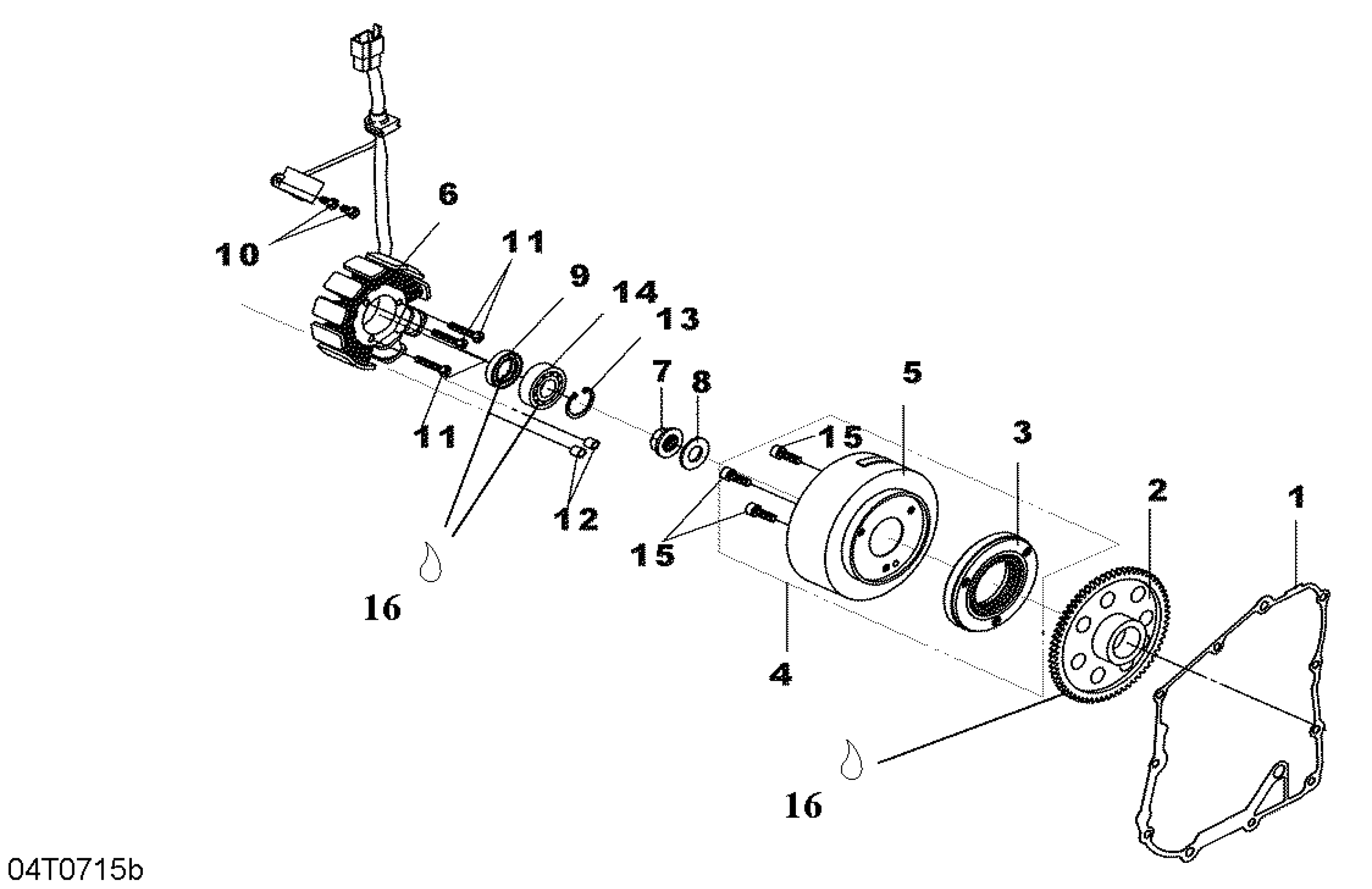

Can-Am DS 250 NA / Inter, 2007 Magneto Diagram

#

Description
Price

1

Cover Gasket

S11394RB1003

$8.85

2

Starter Wheel

S28110HMA000

$74.99

3

One Way Clutch

S2812AHMA000

$349.49

4

Generator Flywheel

S3110ARB1010

$455.99

5

Not Available As Spare Parts

NASP/NDPR

Unavailable

6

Stator Ass'y

S31120RB1000

Unavailable

7

NUT FLANGE - Call your local BRP dealership

S90201KR8751

Unavailable

8

Thrust Washer

S90401KJ9000

$2.09

9

Oil Seal

S91202HMA000

$5.40

10

Not Available As Spare Parts

NASP/NDPR

Unavailable

11

Pan Screw M5 X 16

S93500060400A

Unavailable

12

Dowel Pin

S9430108140

$2.57

13

Circlip

S9452032000

$0.95

14

Ball Bearing

S961406201310

$13.18

15

Not Available As Spare Parts

NASP/NDPR

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable
