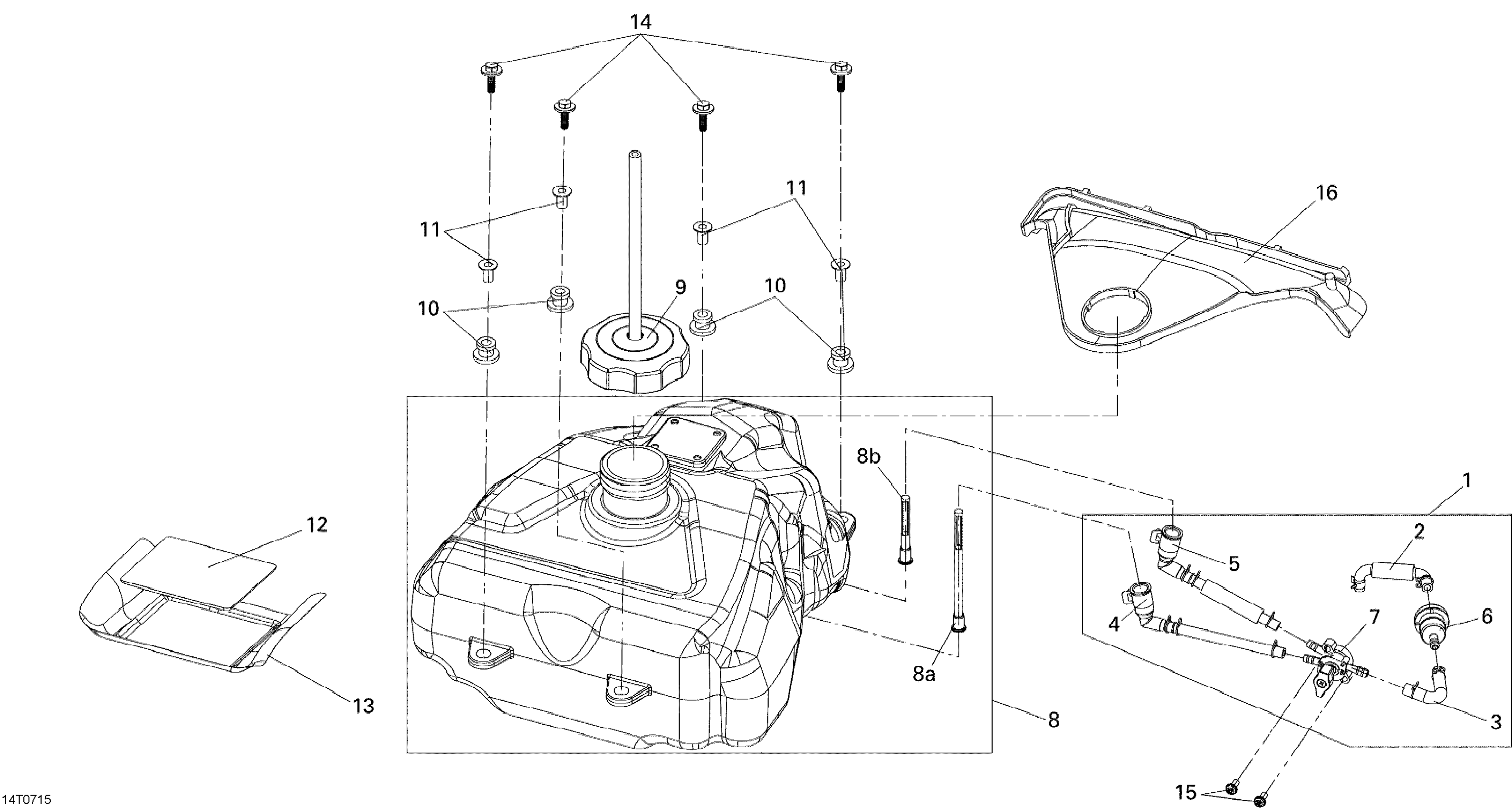

Can-Am DS 250 NA / Inter, 2007 Fuel System Diagram

#

Description
Price

1

Not Available As Spare Parts

NASP/NDPR

Unavailable

2

Hose

S16702RFB000

$46.49

3

Hose

S16702RFB000

$46.49

4

Fuel Tube

S16708RCA000

Unavailable

5

Fuel Tube

S16708RCA000

Unavailable

6

Fuel Strainer

S16910GN5911M1

$19.49

7

Fuel Valve

V16950DGF010LL

$48.99

8

Fuel Tank

S17500RCB000

$249.99

8a

Fuel Strainer A

S17501RCA000

$20.49

8b

Fuel Strainer B

S17502RCA000

$23.99

9

Fuel Tank Cap

S17620RCB000

$42.49

10

Fuel Tank Rubber Bushing

S80103RCA000

$6.99

11

Fuel Tank Collar

S80104RCA000

$5.59

12

Heat Shield A

S80101RCA000

$22.49

13

Heat Shield B

S80102RCA001

Unavailable

14

Washer Bolt M6 X 30

S934040603007

$0.42

15

Washer Bolt M5 X 18

S938910501807

$0.42

16

Fuel Tank Cover

S17510RFA000

$42.99
