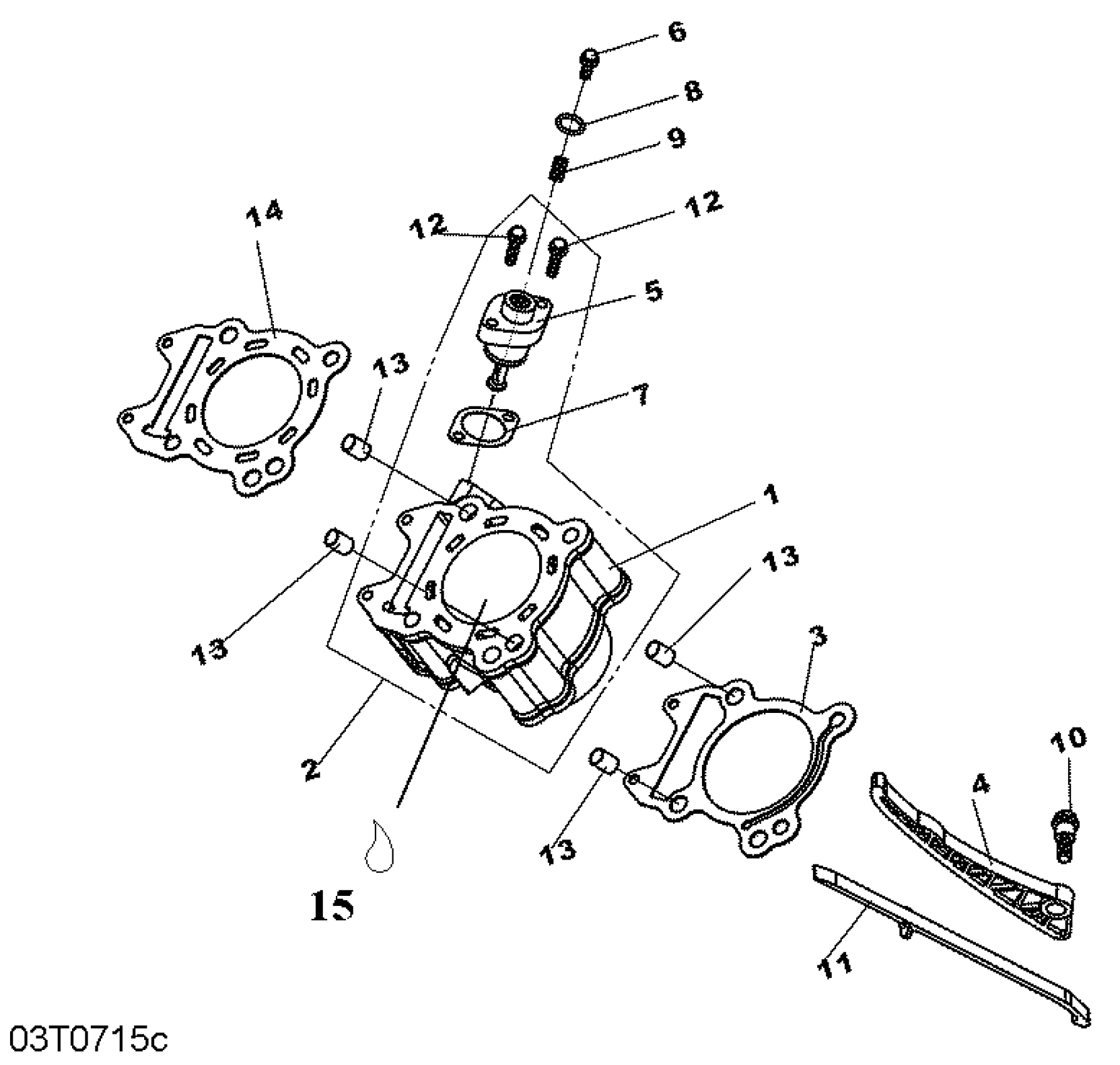

Can-Am DS 250 NA / Inter, 2007 Cylinder Diagram

#

Description
Price

1

Cylinder

S12100HMA000

Unavailable

2

Not Available As Spare Parts

NASP/NDPR

Unavailable

3

Cylinder Gasket

S12191HMA004

$7.90

4

Cam Chain Tensioner

S14510HMA000

$45.49

5

Tensioner Lifter

S14520H6T000

$110.99

6

Adjuster Bolt

S14522H6T000

$1.18

7

Tensioner Lifter Gasket

S14523M9Q000

$3.82

8

O-ring

S14524H6T000

$0.77

9

Adjuster Spring

S14525H6T000

$3.61

10

CAM CHAIN TENSIONNER PIVOT - Call your local BRP dealership

S14531KJ9000

Unavailable

11

Cam Chain Guide

S14610HMA000

$36.99

12

Hex. Flange Screw

S90001M9Q000

$0.72

13

Dowel Pin

S9430112200

$0.95

14

Cylinder Head Gasket

S12251HMA000

$25.99

15

Not Available As Spare Part - Friction Washer

Unavailable
