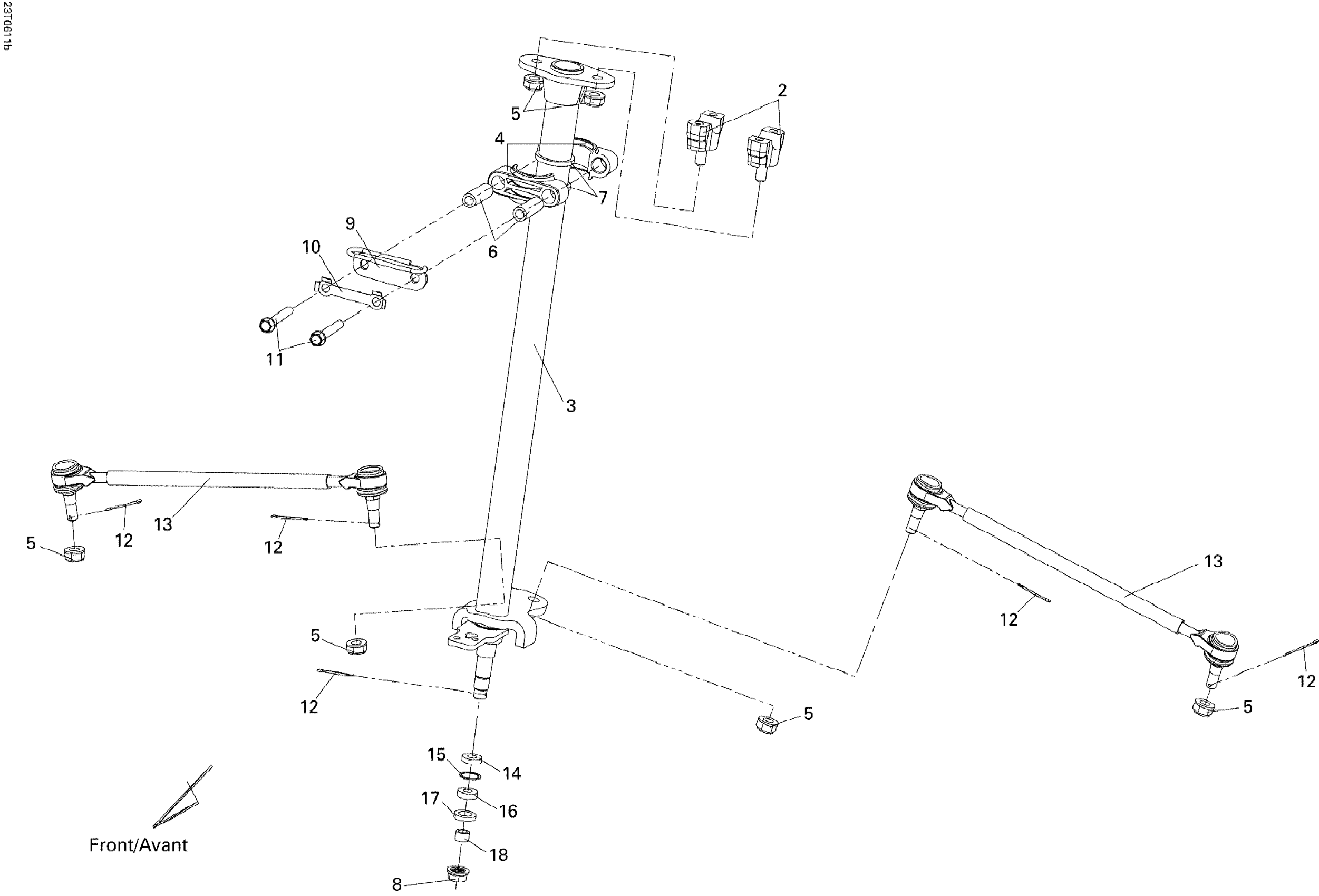

Can-Am DS 250 NA / Inter, 2006 07- Steering Linkage Diagram

#

Description

Price

2

HANDLE BAR BOTTOM CLAMP - Call your local BRP dealership

S53121RCA000

Unavailable

3

Steering Column

S53200RCA000

Unavailable

4

Half Bushing

S53202RCA000

Unavailable

5

Hex. Flange Nut 10 mm

S90304M9Q800

Unavailable

6

Bushing

S53203RCA000

Unavailable

7

Oil Seal

S91208RCA000

Unavailable

8

SELF LOCK NUT 14 MM - Call your local BRP dealership

S90305GW0901A

Unavailable

9

Steering Column Holder Plate

S53204RCA000

Unavailable

10

Lock Tab

S53206RCA000

Unavailable

11

Flanged Bolt M8 X 60

S958010806007

Unavailable

12

Split Pin

S9420125250

Unavailable

13

Tie-rod Ass'y

S50258RCA000

Unavailable

14

Oil Seal

S91210RCA000

Unavailable

15

Circlip

S9452032000

Unavailable

16

Ball Bearing

S961306002310

Unavailable

17

Oil Seal

S91211RCA000

Unavailable

18

Steering Column Collar

S53207RCA000

Unavailable
