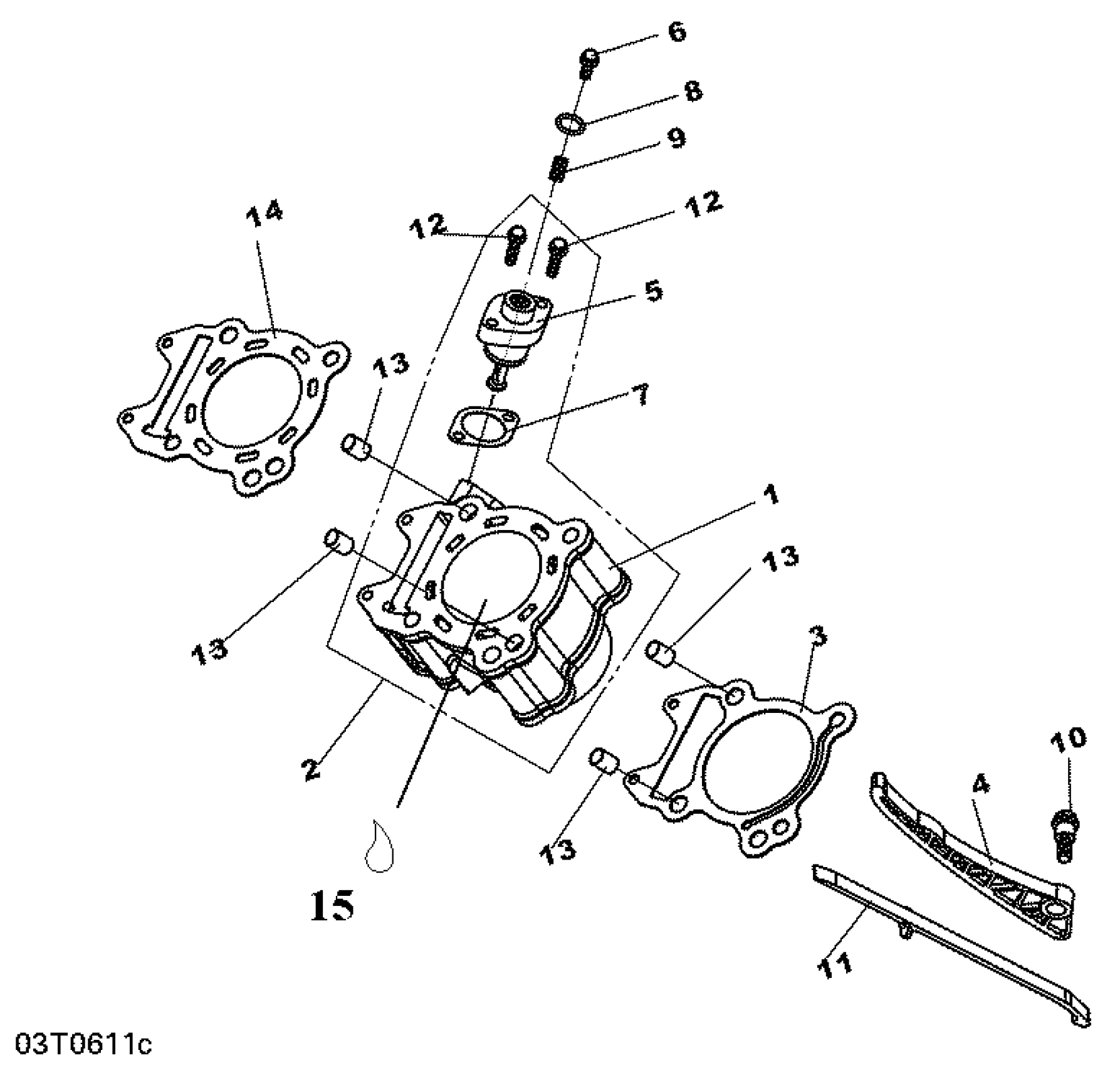

Can-Am DS 250 NA / Inter, 2006 01- Cylinder Diagram

#

Description

Price

1

Cylinder

S12100HMA000

Unavailable

2

Not Available As Spare Parts

NASP/NDPR

Unavailable

3

Cylinder Gasket

S12191HMA004

Unavailable

4

Cam Chain Tensioner

S14510HMA000

Unavailable

5

Tensioner Lifter

S14520H6T000

Unavailable

6

Adjuster Bolt

S14522H6T000

Unavailable

7

Tensioner Lifter Gasket

S14523M9Q000

Unavailable

8

O-ring

S14524H6T000

Unavailable

9

Adjuster Spring

S14525H6T000

Unavailable

10

CAM CHAIN TENSIONNER PIVOT - Call your local BRP dealership

S14531KJ9000

Unavailable

11

Cam Chain Guide

S14610HMA000

Unavailable

12

Hex. Flange Screw

S90001M9Q000

Unavailable

13

Dowel Pin

S9430112200

Unavailable

14

Cylinder Head Gasket

S12251HMA000

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable
