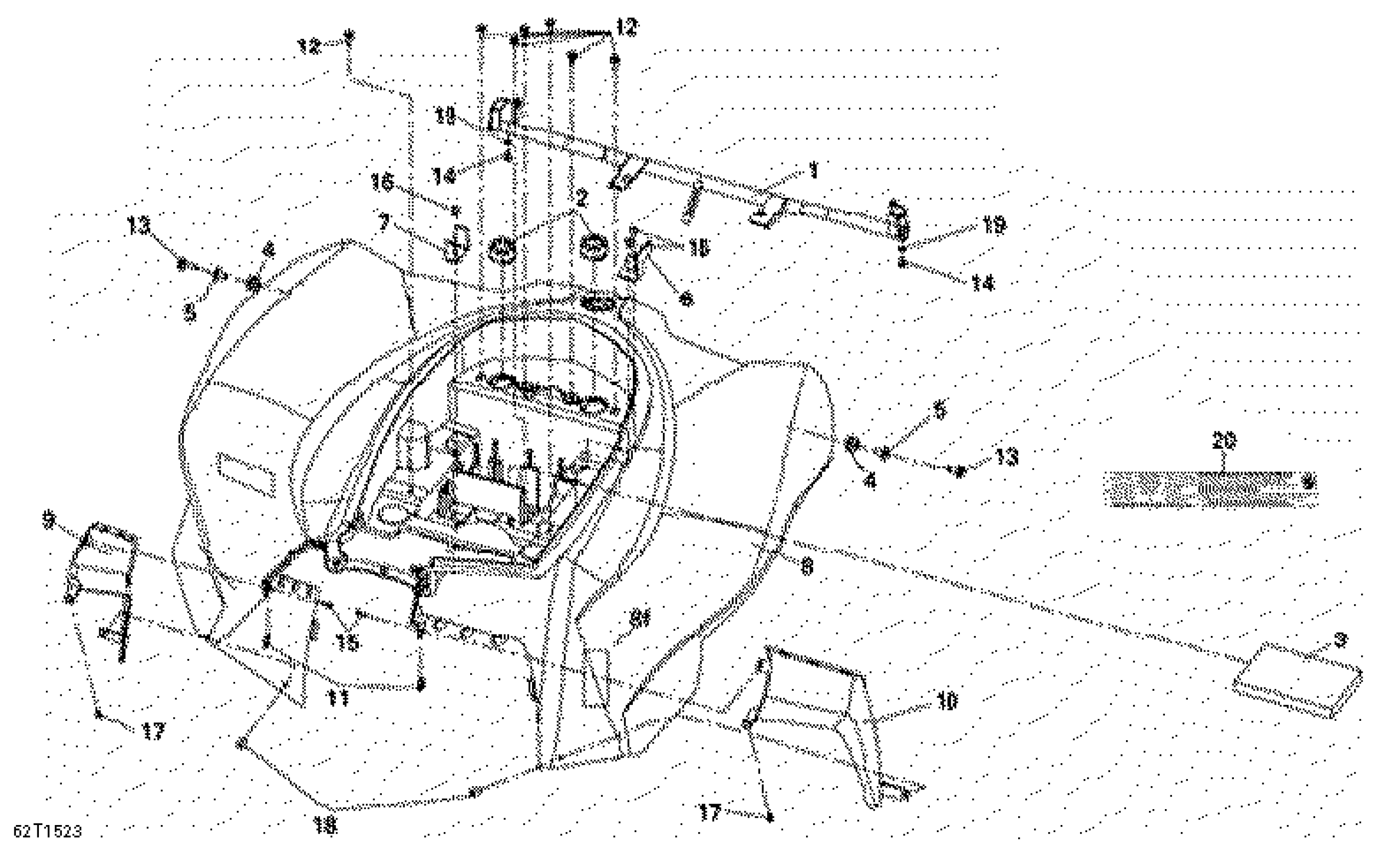

Can-Am DS 250 NA & INT, 2015 09- Rear Fender Inter_62T1523 Diagram

#

Description
Price

1

Rear Fender Support

S50530RCB000

Unavailable

2

Rubber Cushion

S77212RCA000

Unavailable

3

Sponge Rubber

S80108RCA000

Unavailable

4

Rubber Washer

S80103X01000

Unavailable

5

Fender Collar

S80104X01000

Unavailable

6

CDI Stay

S80107RCA000

Unavailable

7

Stay

S80109RB1000

Unavailable

8

Yellow Rear Fender

S8010GRCCE00ZY

Unavailable

8a

Reflective Sheet A

S80111RCA000

Unavailable

8b

Reflective Sheet B

S80112RCA000

Unavailable

8c

Reflective Sheet C

S80113RCA000

Unavailable

8d

Reflective Sheet D

S80114RCA000

Unavailable

8e

Reflective Sheet E

S80115RCA000

Unavailable

8f

Rear Fender Decal

S87132RCAA00

Unavailable

8g

Rear Fender Decal

S87133RCAA00

Unavailable

8m

Tire Pressure Warning Label

S87503RCCE00

Unavailable

8h

Passenger Warning Lable

S87504RCCE00

Unavailable

9

RH Side Cover

S83525RCA000JF

Unavailable

10

LH Side Cover

S83625RCA000JF

Unavailable

11

Clip Nut

S90302V02000

Unavailable

12

Washer Bolt M5 X 12

S934020501207

Unavailable

13

Washer Bolt

S934040602507

Unavailable

14

Flanged Bolt M8 X 16

S958010801607

Unavailable

15

Tapping Screw M4 X 12

S9390334380

Unavailable

16

Tapping Screw M5 X 12

S9390335280

Unavailable

17

Tapping Screw

S9390344380

Unavailable

18

Screw Washer

S90119G03900

Unavailable

19

Spring Washer 5 mm

S9411105800

Unavailable
