09- Front Fender

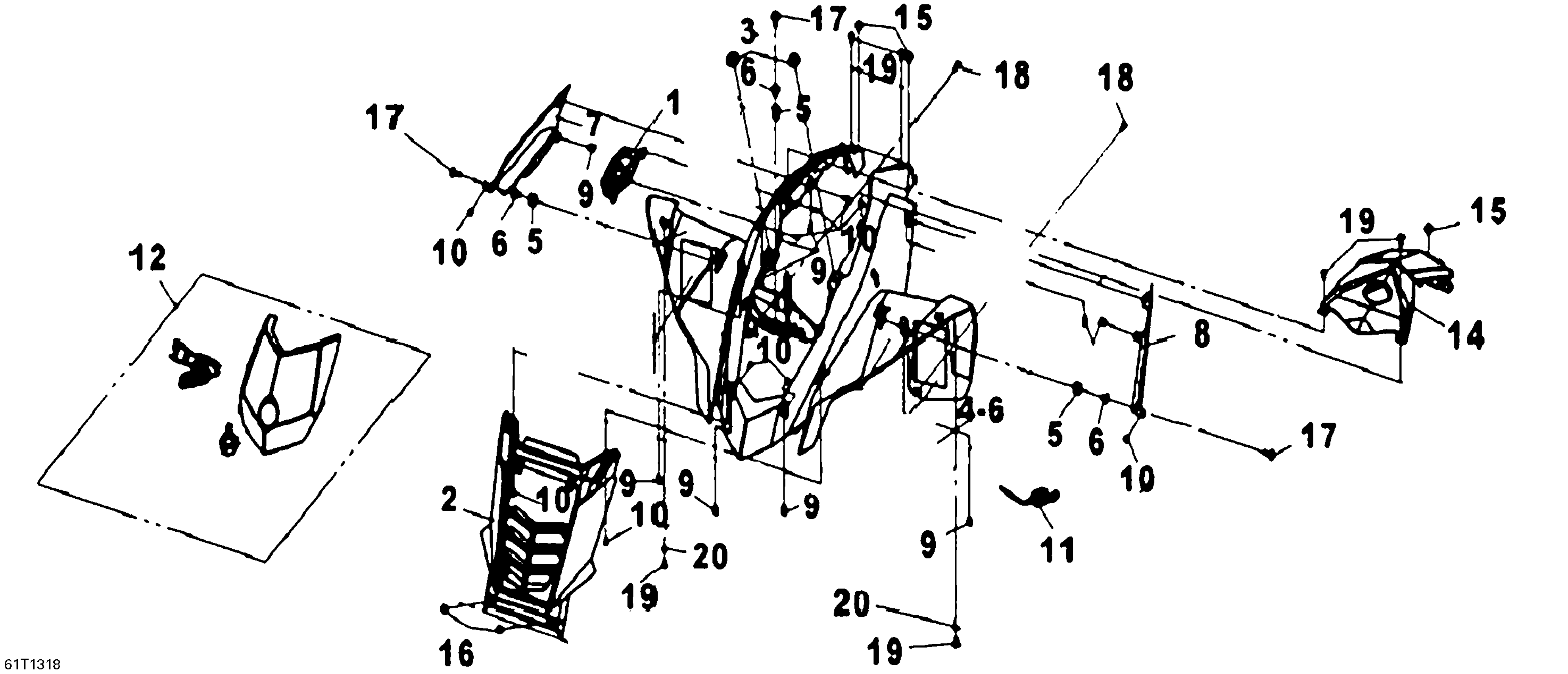

Can-Am DS 250 NA, CE & INT, 2013 09- Front Fender Diagram
#
Description
Price
1
Shift Lever Cover
S46220RCA000
Unavailable
2
Radiator Grille
S50611RCA000
Unavailable
3
Grommet
S61105RCA000
Unavailable
4
Yellow Front Fender
S6110GRCCE00ZY
Unavailable
4a
Front Decal
S87131RCAA00
Unavailable
4b
LH FRONT DECAL B - Call your local BRP dealership
S87136RCAA00T2
Unavailable
4c
RH FRONT DECAL B - Call your local BRP dealership
S87137RCAA00T2
Unavailable
4d
Warning Decal A
S87501RCB900
Unavailable
4e
Warning Decal B
S87502RCA000
Unavailable
4f
Shifter Label
S87505RCAA00
Unavailable
5
Rubber Washer
S80103X01000
Unavailable
6
Fender Collar
S80104X01000
Unavailable
7
Fr.Rh.Side Fender
S83520RCA000JF
Unavailable
8
LH Pannel
S83620RCA000JF
Unavailable
9
Clip Nut
S90302V02000
Unavailable
10
Tapping Screw M4 X 12
S9390332280
Unavailable
11
DC Power Outlet, 12 Volts
S38600RA1000
Unavailable
12
Radiator Cover Ass'y
S6430GRCAA00JF
Unavailable
12a
Decal Sd250
S87130RCAA00T2
Unavailable
12b
BRP Logo
S87500RCA000
Unavailable
14
Fuel Tank Cover
S43020RCA000
Unavailable
15
Washer Bolt
S934040601407
Unavailable
16
Special Screw
S90164RCA000
Unavailable
17
Washer Bolt
S934040602507
Unavailable
18
Screw Washer
S90119G03900
Unavailable
19
Tapping Screw M5 X 12
S9390335280
Unavailable
20
Spring Washer 5 mm
S9411105800
Unavailable
