09- Rear Fender North America

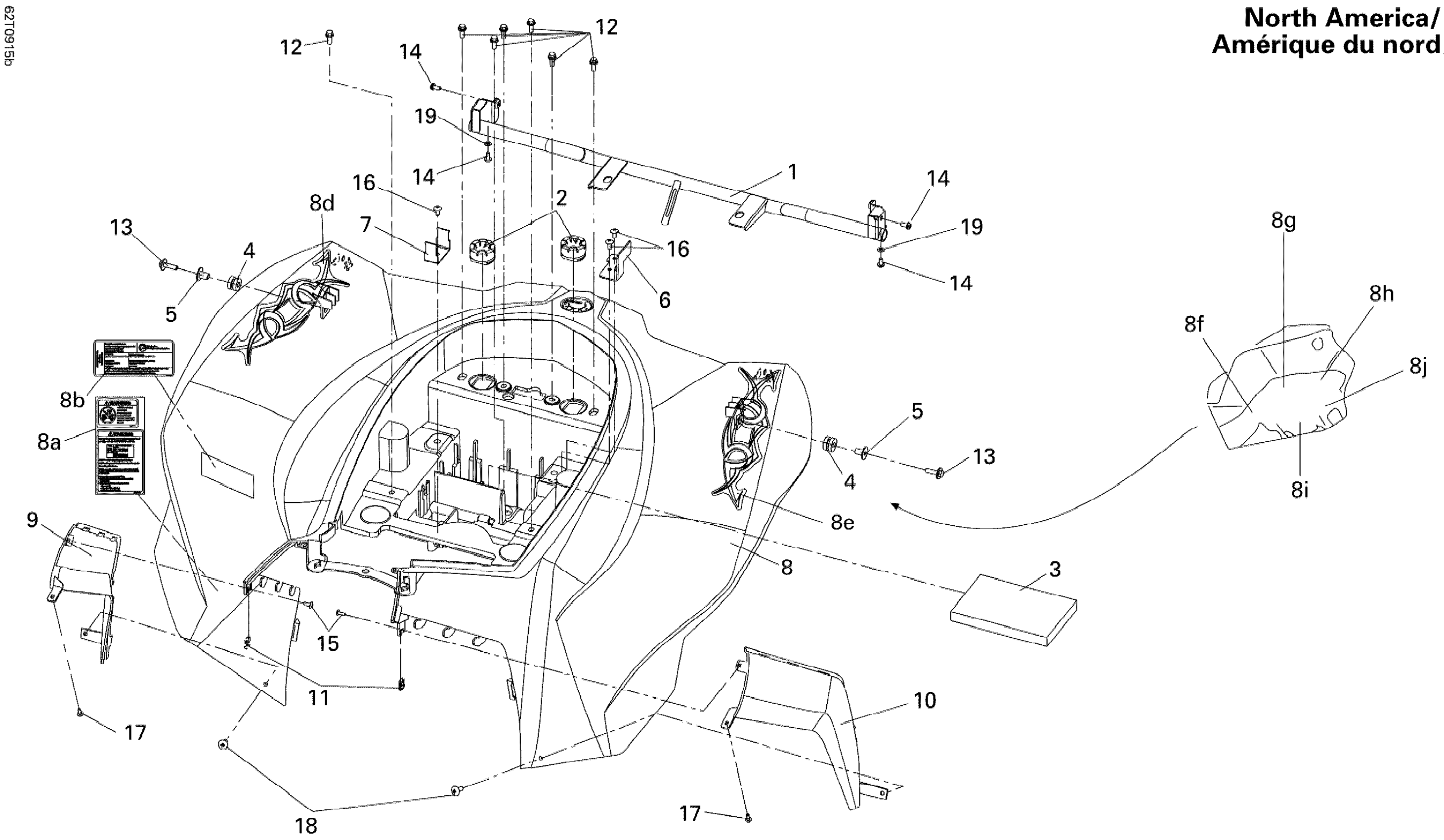

Can-Am DS 250 NA, CE & INT, 2009 09- Rear Fender North America Diagram
#
1
Rear Fender Support
S50530RCB000
Unavailable
2
Rubber Cushion
S77212RCA000
Unavailable
3
Sponge Rubber
S80108RCA000
Unavailable
4
Rubber Washer
S80103X01000
Unavailable
5
Fender Collar
S80104X01000
Unavailable
6
CDI Stay
S80107RCA000
Unavailable
7
Stay
S80109RB1000
Unavailable
8
Rear Fender , Yellow
S8010GRCB910ZY
Unavailable
8
Rear Fender , White | White Model
S8010GRCB910QX
Unavailable
8a
Warning Decal B
S8750BRCA000
Unavailable
8b
EPA Label
S87514RCA800
Unavailable
8d
LH REAR FENDER DECAL - Call your local BRP dealership
S87132RCA000
Unavailable
8e
RH REAR FENDER DECAL - Call your local BRP dealership
S87133RCA000
Unavailable
8f
Reflective Sheet A
S80111RCA000
Unavailable
8g
Reflective Sheet B
S80112RCA000
Unavailable
8h
Reflective Sheet C
S80113RCA000
Unavailable
8i
Reflective Sheet D
S80114RCA000
Unavailable
8j
Reflective Sheet E
S80115RCA000
Unavailable
9
RH Side Cover
S83525RCA000JF
Unavailable
10
LH Side Cover
S83625RCA000JF
Unavailable
11
Clip Nut
S90302V02000
Unavailable
12
Tapping Screw M5 X 12
S9390335280
Unavailable
13
Washer Bolt
S934040602507
Unavailable
14
Flanged Bolt M5 X 12
S938910501207
Unavailable
15
Tapping Screw M4 X 12
S9390334380
Unavailable
16
Tapping Screw M5 X 12
S9390335280
Unavailable
17
Tapping Screw
S9390344380
Unavailable
18
Screw Washer
S90119G03900
Unavailable
19
Spring Washer 5 mm
S9411105800
Unavailable
