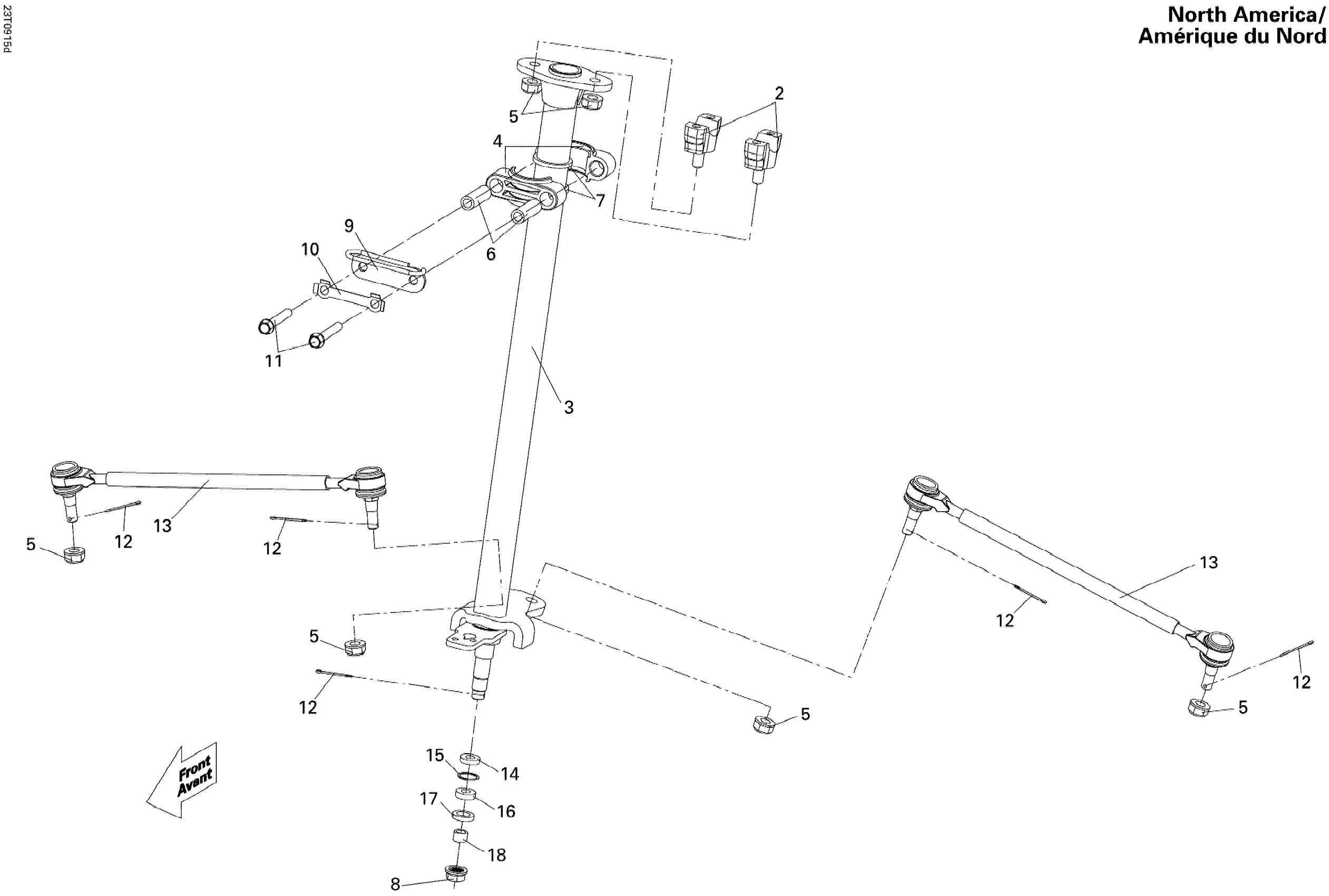

Can-Am DS 250 NA, CE & INT, 2009 Steering Linkage North America Diagram

#

Description
Price

2

Handle Bar Bottle Clamp

S53121RCA010

$17.04

3

Steering Column

S53200RCA000

$114.99

4

Half Bushing

S53202RCA000

$17.69

5

Hex. Flange Nut 10 mm

S90304M9Q800

$1.28

6

Bushing

S53203RCA000

$5.08

7

Oil Seal

S91208RCA000

$14.49

8

Self Lock Nut 14 mm

S90305GW0901

$11.64

9

Steering Column Holder Plate

S53204RCA000

$11.99

10

Lock Tab

S53206RCA000

$6.09

11

Flanged Bolt M8 X 60

S958010806007

$0.77

12

Split Pin

S9420125250

$0.53

13

Tie-rod Ass'y

S50258RCA000

$78.49

14

Oil Seal

S91210RCA000

$6.35

15

Circlip

S9452032000

$0.95

16

Ball Bearing

S961306002310

$17.05

17

Oil Seal

S91211RCA000

$12.71

18

Steering Column Collar

S53207RCA000

$11.49
