07- Front Suspension

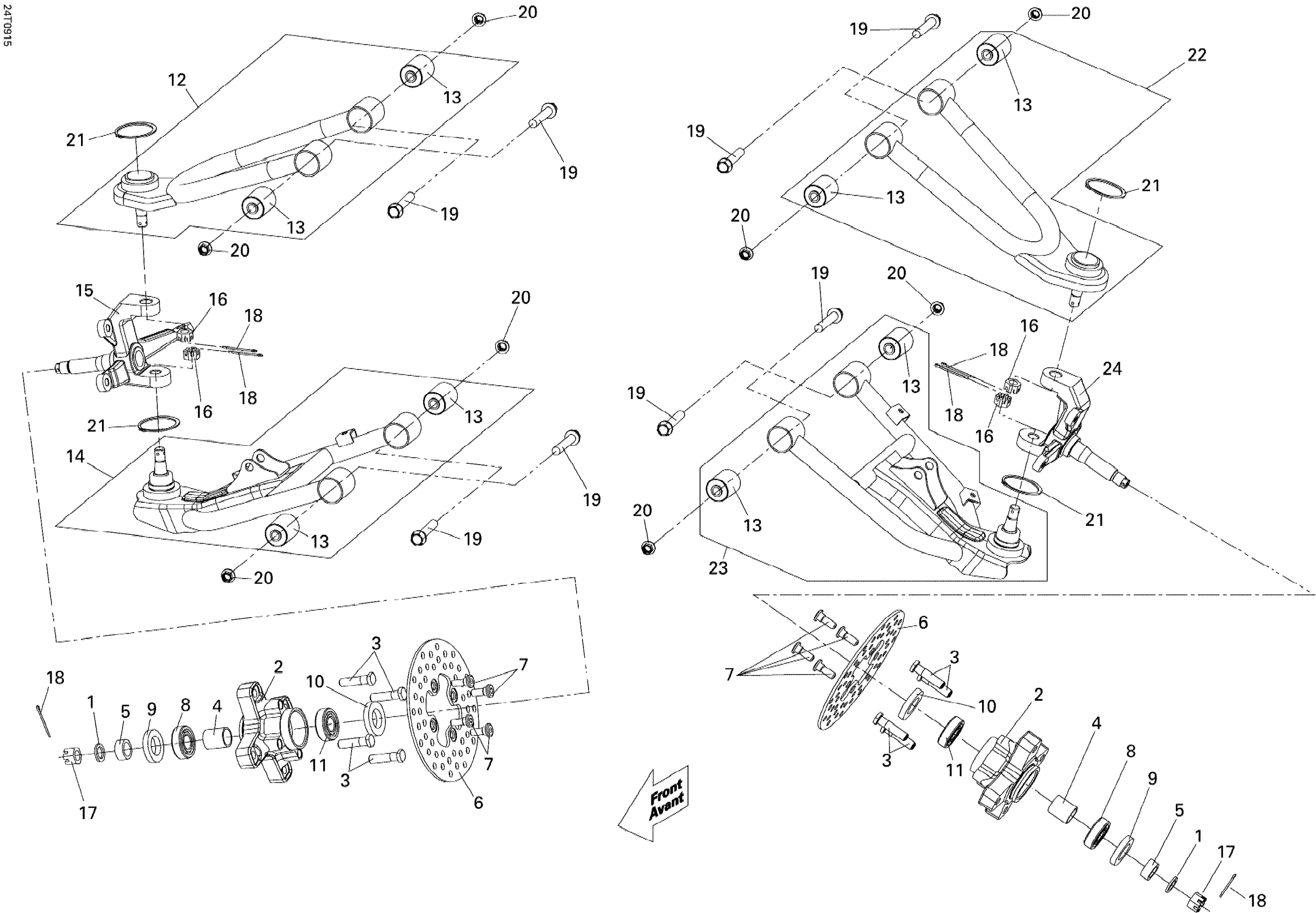

Can-Am DS 250 NA, CE & INT, 2009 07- Front Suspension Diagram
#
Description
Price
1
Front Wheel Washer
S44611RCA000
Unavailable
2
Front Wheel Hub
S44610RCA000
Unavailable
3
Wheel Stud
S44612RCA000
Unavailable
4
Inner Spacer
S44620RCA000
Unavailable
5
Outer Collar
S44622RCA000
Unavailable
6
Brake Disk
S45351RCA000
Unavailable
7
Bolt M8 X 24
S90105KR3000
Unavailable
8
Radial Ball Bearing
S91208GA7003
Unavailable
9
Oil Seal
S91202RCA000
Unavailable
10
Oil Seal
S91205RCA000
Unavailable
11
Ball Bearing
S961506004310
Unavailable
12
RH Upper Arm Ass'y
S50200RCA000
Unavailable
13
Bushing
S50201RCA000
Unavailable
14
RH Lower Arm Ass'y
S50220RCA000
Unavailable
15
RH Knuckle Ass'y
S50240RCA000
Unavailable
16
Hex. Castellated Nut M12
232221414
Unavailable
17
Hex. Castlellated Nut 14 mm
S94011142000S
Unavailable
18
Cotter Pin
371003400
Unavailable
19
Flanged Bolt M10 X 60
S958011006007
Unavailable
20
Flanged Nylon Nut 10 mm
S90304RCA000
Unavailable
21
CIRCLIP - Call your local BRP dealership
S9451029120
Unavailable
22
LH Upper Arm
S50210RCA000KB
Unavailable
23
LH Lower Arm Ass'y
S50230RCA000
Unavailable
24
LH Knuckle Ass'y
S50250RCA000
Unavailable
