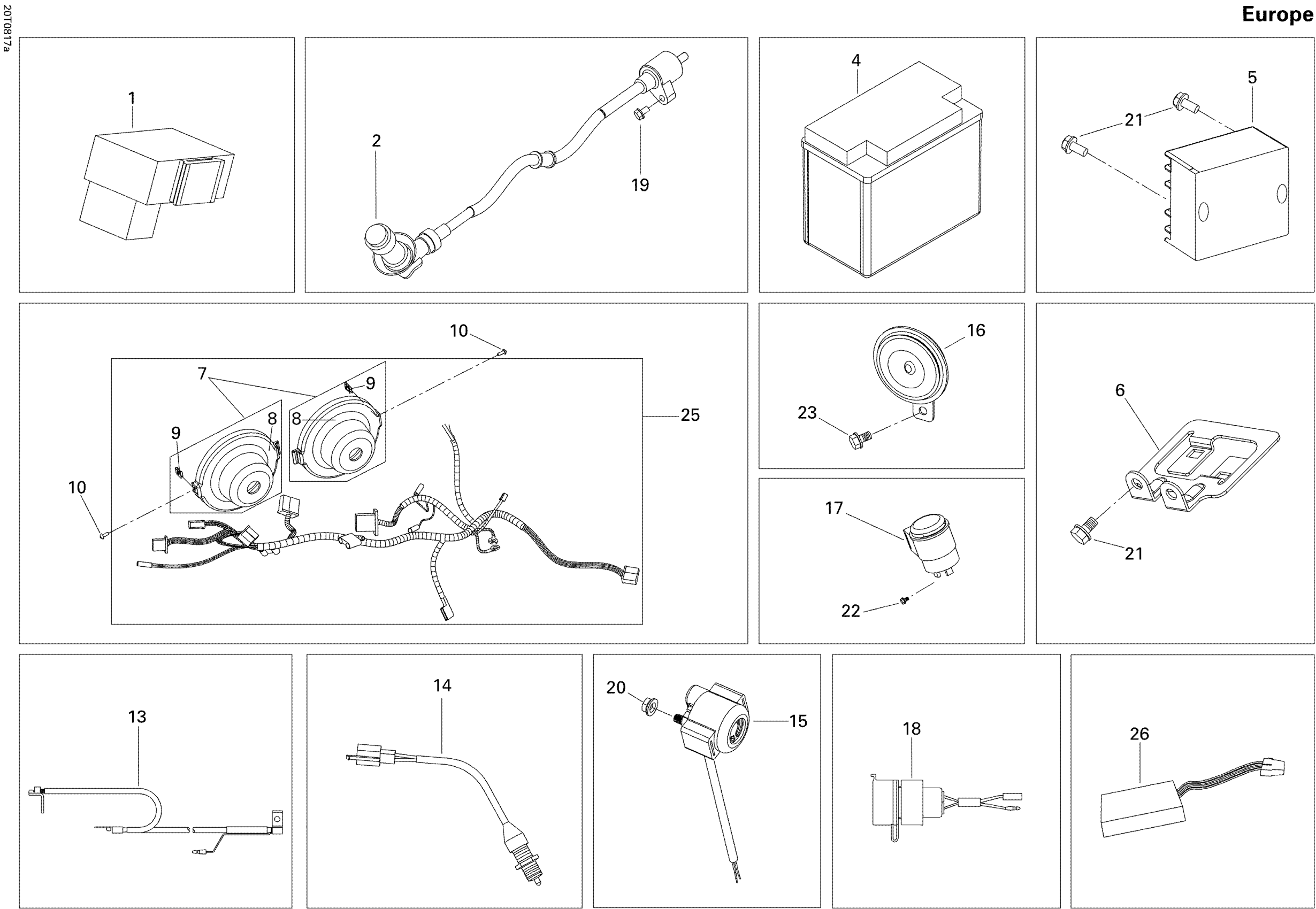

Can-Am DS 250 CVT, 2008 10- Electrical Components Europe Diagram
#
Description
Price
1
CDI UNIT ASS'Y - Call your local BRP dealership
S30400RCA000
Unavailable
2
Ignition Coil
S3051ARB1000
Unavailable
4
Battery 12 Amp
715900031
Unavailable
5
Redresseur *Rectifier
S31600RCA010
Unavailable
6
Connector Bracket
S31601RCA000
Unavailable
7
Head Light Rear Cover Ass'y
S6310BRCA000
Unavailable
8
Not Available As Spare Parts
NASP/NDPR
Unavailable
9
Clip Nut
S90302V02000
Unavailable
10
Tapping Screw M4 X 12
S9390334380
Unavailable
13
Ground Cable
S32412RB1000
Unavailable
14
Rear Stop Switch Ass'y
S35350RCA000
Unavailable
15
Starter Solenoïd
S3585ARCA000
Unavailable
16
Horn
S38110RCA000
Unavailable
17
FLASHER RELAY - Call your local BRP dealership
S38301RFA000
Unavailable
18
DC Power Outlet, 12 Volts
S38600RA1000
Unavailable
19
Flange Bolt M5 X 22
S90112GK8000
Unavailable
20
Flanged Nut 6 mm
S9405006070
Unavailable
21
Flanged Bolt M6 X 12
S958010601207
Unavailable
22
Flanged Bolt M6 X 16
S958010601607
Unavailable
23
Flanged Bolt M8 X 12
S958010801207
Unavailable
25
HARNESS ASS'Y - Call your local BRP dealership
S32100RCA010
Unavailable
26
Coolant Temperature Control Unit
S37270RA1000
Unavailable
