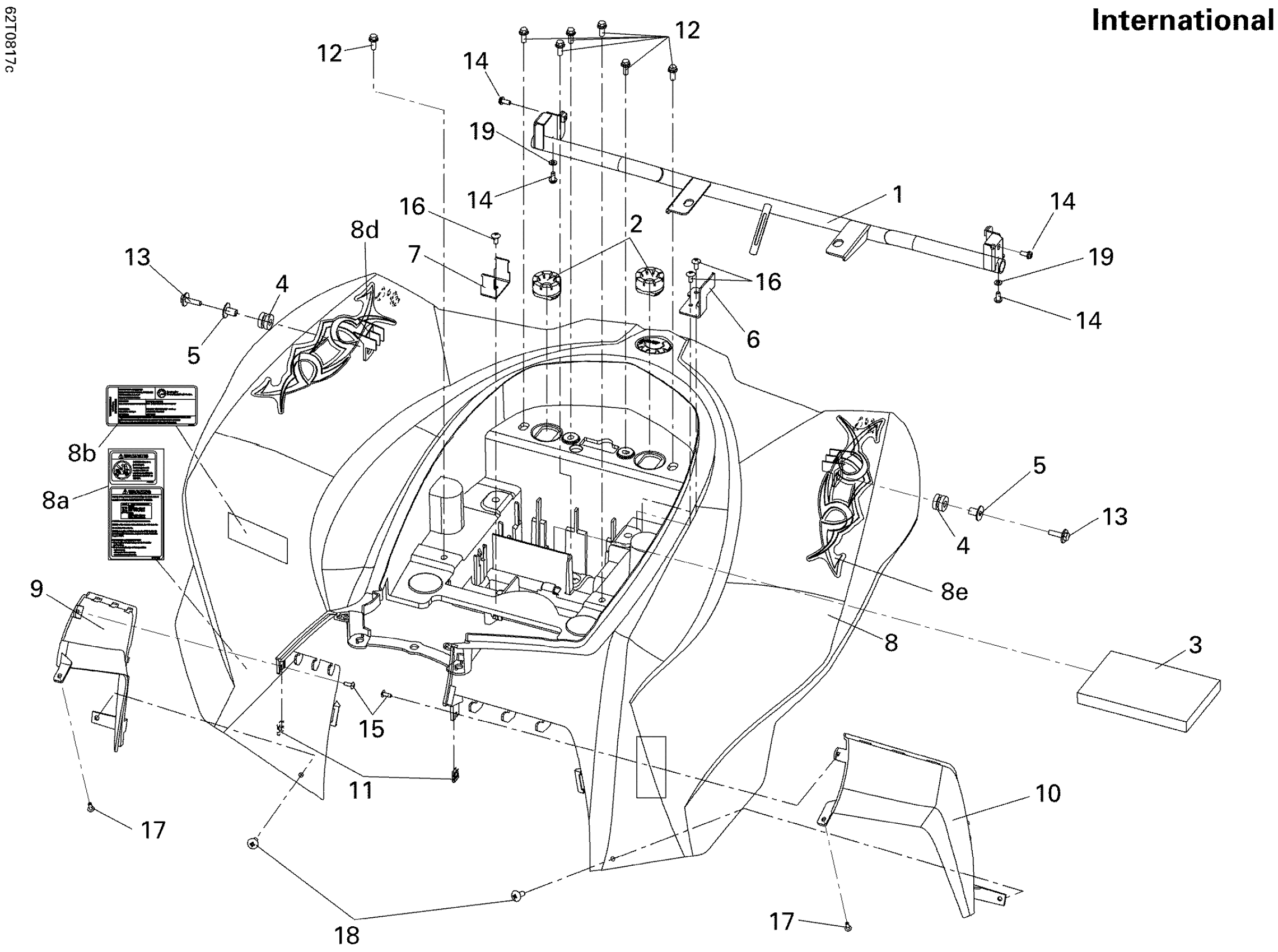

Can-Am DS 250 CVT, 2008 Rear Fender International Diagram

#

Description
Price

1

Rear Fender Support

S50530RCB000

$73.99

2

Rubber Cushion

S77212RCA000

$10.99

3

Sponge Rubber

S80108RCA000

$13.49

4

Rubber Washer

S80103X01000

$4.14

5

Fender Collar

S80104X01000

$4.29

6

CDI Stay

S80107RCA000

$9.89

7

Stay

S80109RB1000

$5.40

8

REAR FENDER - Call your local BRP dealership

S8010GRCC800ZY

Unavailable

8a

Warning Decal B

S8750BRCA000

Unavailable

8b

EPA Label

S87514RCA800

Unavailable

8d

Rear Fender Decal

S87133RCAA00

$12.99

8e

Rear Fender Decal

S87132RCAA00

$12.99

9

RH Side Cover

S83525RCA000JF

$22.99

10

LH Side Cover

S83625RCA000JF

$22.99

11

Clip Nut

S90302V02000

$0.53

12

Washer Bolt M5 X 12

S934020501207

$0.42

13

Washer Bolt

S934040602507

$0.42

14

Flanged Bolt M5 X 12

S938910501207

$1.04

15

Tapping Screw M4 X 12

S9390334380

$0.42

16

Tapping Screw M5 X 12

S9390335280

$0.42

17

Tapping Screw

S9390344380

$0.42

18

Screw Washer

S90119G03900

$2.19

19

Spring Washer 5 mm

S9411105800

$4.14
