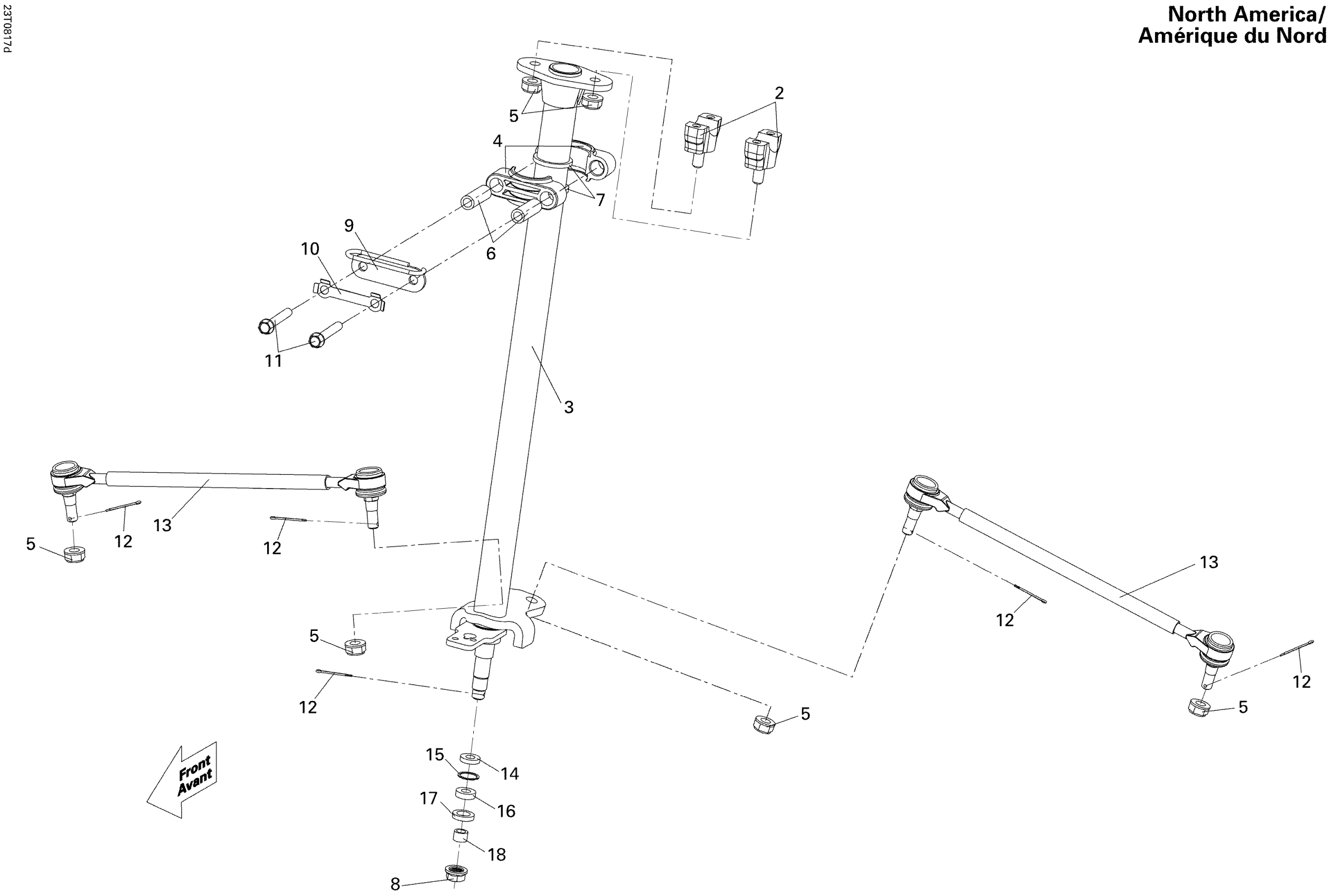

Can-Am DS 250 CVT, 2008 Steering Linkage North America Diagram

Description

Price

Handle Bar Bottle Clamp

S53121RCA010

$15.64

Steering Column

S53200RCA000

$103.70

Half Bushing

S53202RCA000

$16.39

Hex. Flange Nut 10 mm

S90304M9Q800

$1.28

Bushing

S53203RCA000

$4.69

Oil Seal

S91208RCA000

$12.79

Self Lock Nut 14 mm

S90305GW0901

$10.64

Steering Column Holder Plate

S53204RCA000

$9.91

Lock Tab

S53206RCA000

$5.40

Flanged Bolt M8 X 60

S958010806007

$0.72

Split Pin

S9420125250

$0.49

Tie-rod Ass'y

S50258RCA000

$73.10

Oil Seal

S91210RCA000

$5.90

Circlip

S9452032000

$0.88

Ball Bearing

S961306002310

$15.64

Oil Seal

S91211RCA000

$11.81

Steering Column Collar

S53207RCA000

$8.63
