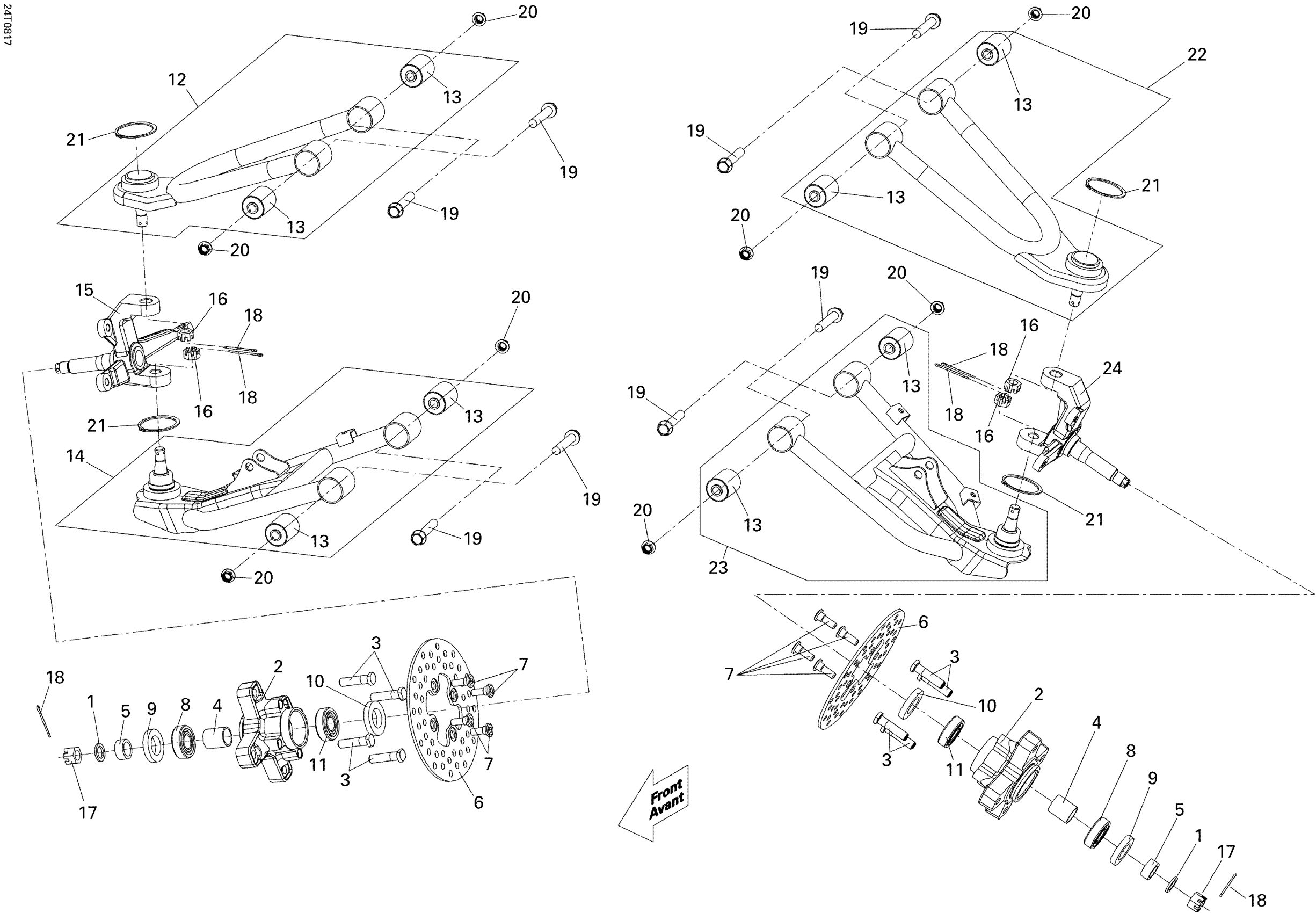

Can-Am DS 250 CVT, 2008 Front Suspension Diagram

#

Description
Price

1

Front Wheel Washer

S44611RCA000

$0.88

2

Front Wheel Hub

S44610RCA000

$94.00

3

Wheel Stud

S44612RCA000

$1.42

4

Inner Spacer

S44620RCA000

$7.39

5

Outer Collar

S44622RCA000

$7.31

6

Brake Disk

S45351RCA000

$85.04

7

Bolt M8 X 24

S90105KR3000

$4.19

8

Radial Ball Bearing

S91208GA7003

$19.37

9

Oil Seal

S91202RCA000

$6.96

10

Oil Seal

S91205RCA000

$12.94

11

Ball Bearing

S961506004310

$19.37

12

RH Upper Arm Ass'y

S50200RCA000

$108.18

13

Bushing

S50201RCA000

$21.61

14

RH Lower Arm Ass'y

S50220RCA000

$108.18

15

RH Knuckle Ass'y

S50240RCA000

$197.73

16

Hex. Castellated Nut M12

232221414

$3.00

17

Hex. Castlellated Nut 14 mm

S94011142000S

$1.76

18

Cotter Pin

371003400

$0.67

19

Flanged Bolt M10 X 60

S958011006007

$1.18

20

Flanged Nylon Nut 10 mm

S90304RCA000

$4.40

21

CIRCLIP - Call your local BRP dealership

S9451029120

Unavailable

22

LH Upper Arm

S50210RCA000KB

$108.18

23

Lh Lower Arm Ass'Y This part replaces S50230RCA000.

S50230RCA000KB

$108.18

24

LH Knuckle Ass'y

S50250RCA000

$197.73
